W2000 series wireless 1e to N microphone

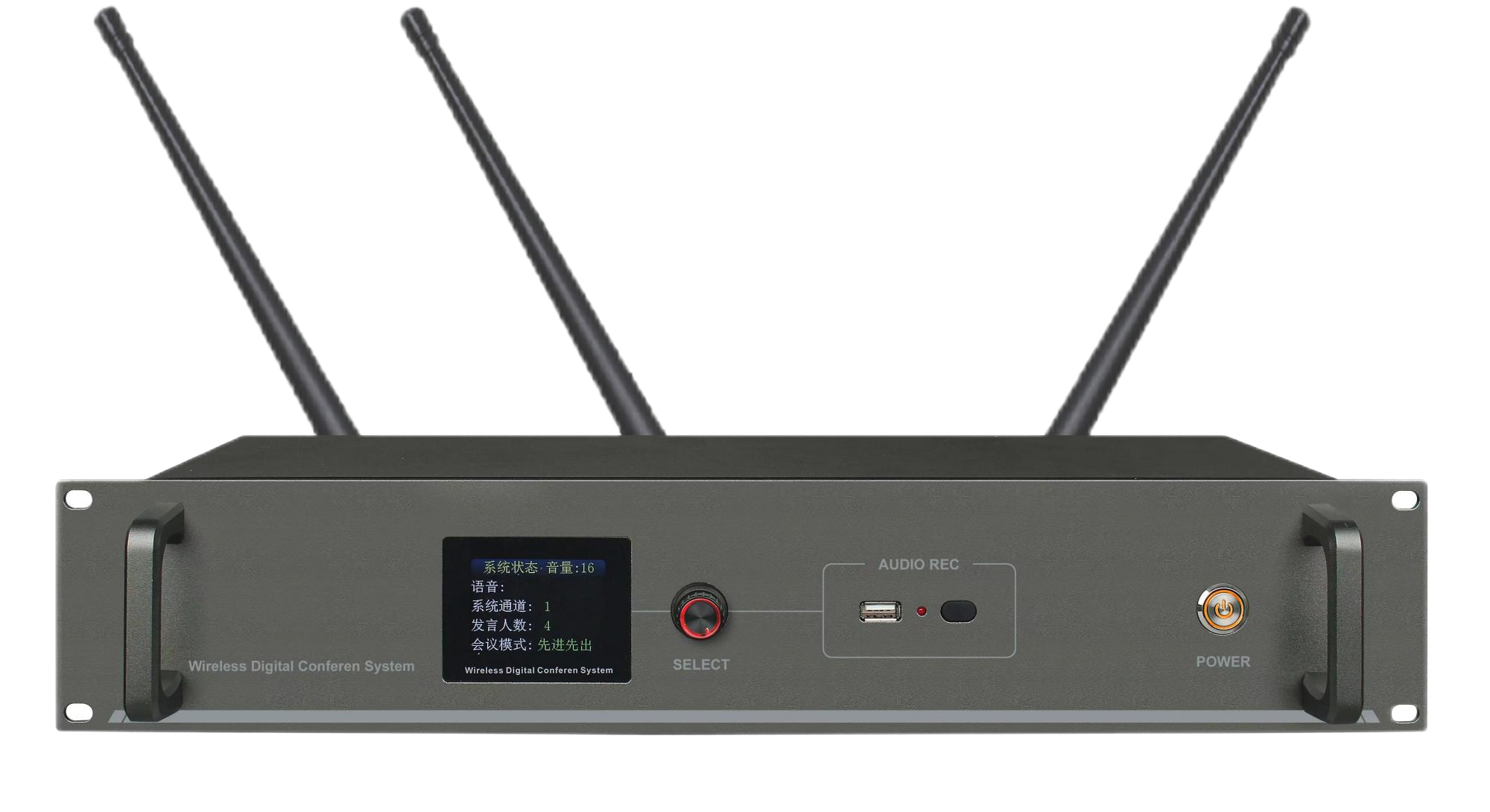

Conference System Main Unit W2000
Controller Technical Parameters: Carrier Band: UHF640-690MHz FM Demodulation.
Carrier band: UHF640-690MHz FM demodulation. Built-in 4-way voice circuit.
Oscillation mode: PLL phase-locked frequency synthesis
Sensitivity: S/N> 60dB at 6dBV offset equal to 25KHz input.
Bandwidth: 30MHz
Maximum Offset: +45KHz
Combined S/N ratio: >105dB
Integrated T.H.D: <0.7% @1KHz
Overall frequency response: 45Hz-18KHz -1dB
Power Input: DC12V-15V,2-3 A (built-in precision voltage regulator)
Power consumption: < 10W
Working distance: 60 meters (visible distance)
Operating temperature: -10C-- 45°C
