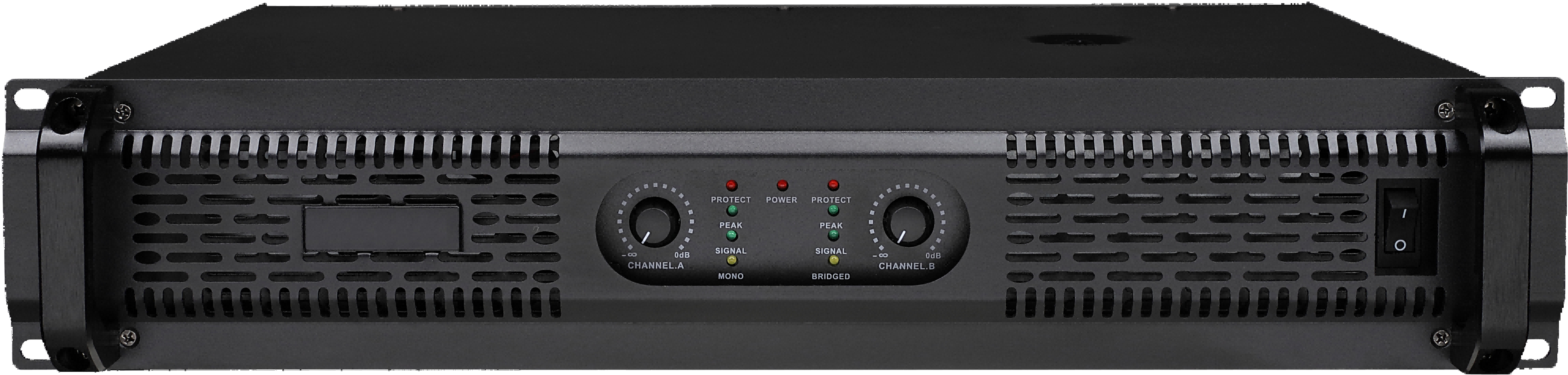

UA600 Series 2-CH Power Amplifier
UA600 Series 2-CH Power Amplifier
Output Power(EIA 1KHz 1%THD)
Stereo(600W×2/8Ω;900W×2/4Ω)Bridge(1800W/8Ω)
Output Connector: SPEAKON/Binding
Frequency Response:20Hz-20kHz,±1dB
Input sensitivity: 0.7V
Signal-to-noise ratio: ≥95dB
Distortion:≤0.03%
Rated output power 8 OHM 1KHz separation:>70dB
Damping factor f=1KHz 8 OHMS:240
Conversion rate:15V/us
Protection:Soft Start,Short Circuit,Limiter,DC Fault,AC Line Fuse,Thermal Cut
Cooling System:Two steps speed fan
Power supply:220-230V~50Hz
Net weight(kg):11.3Kg
Dimension(WxDxH):482×346×88mm
