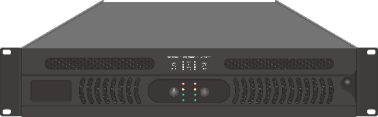

UA250 Series 2-CH Power Amplifier
UA250 Series 2-CH Power Amplifier
Rated power RMS: (8Ω)2×250W;
Rated power RMS: (4Ω)2×360W;
Rated power RMS: (bridged 8Ω) 720W;
Rated power RMS: (bridged 100V) 600W;
Frequency Response: 20Hz-20KHz ±0.5dB;
Input sensitivity: 1V
Signal-to-noise ratio:≥100dB
Distortion (THD): ≤ 0.03%
Input impedance:20KΩ(balanced)10KΩ(unbalanced)
Rated output power 8Ω1KHz separation:65dB
Damping factor (5Hz-1KHz):>100
Conversion rate:13V/uS
Protection function: soft start protection overheating protection overcurrent protection DC protection RF protection
Cooling system: Two step speed fan
Power supply: AC: 220-230V 50Hz/60Hz Chassis thickness 2U; Weight: 8.5Kg;
Product size (W×D×H):482×346×88 mm
