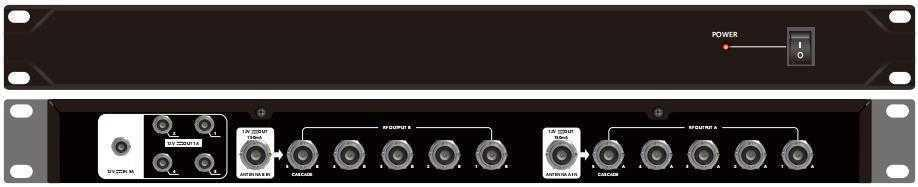

U-8050 Microphone Antenna Amplifier
Signal Splitter
Suitable for any brand of diversity receivers, can connect 5 receivers with serial connection function.
Provide 4 groups of DC12V/1A power supply for receivers.
This system can receive signals stably and enhance the effective distance up to more than 300 meters.
1.Working frequency:450-950MHZ
2.Frequency range:450~950MHz
3.RF output gain: 1dB±1dB
4. Output third-order intermodulation intercept point: +14dBm
5.Noise index: <2dB
6.System impedance: 50Ω
7. Antenna input connector power supply: 5V/80mA DC
8. Output power supply: 12V/1000mA DC per channel output
9. Host power supply: 110~220V AC 50/60Hz
10.Connector: BNC
12. (L×H×W) 482×44.5×265mm
