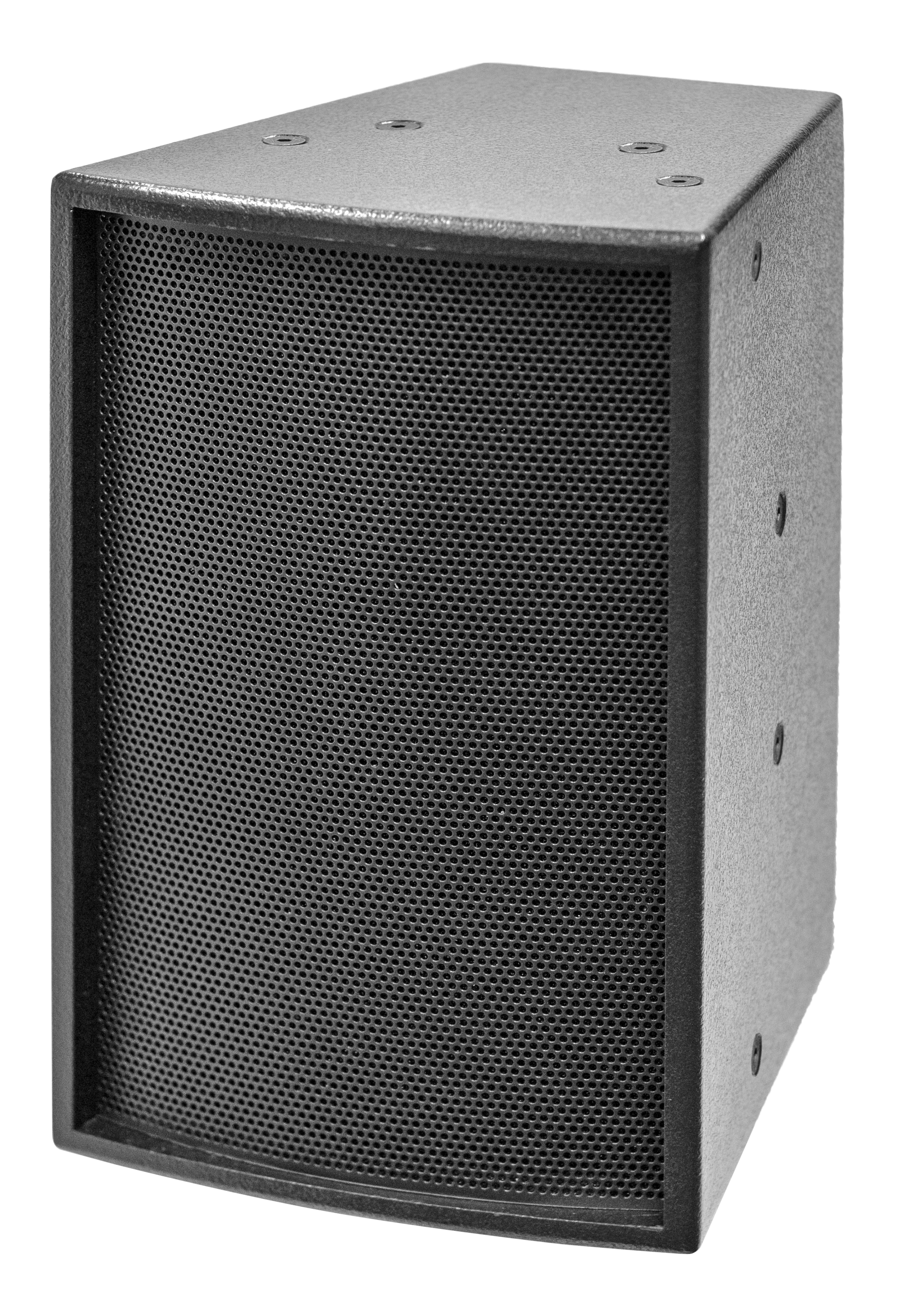

TP10 Series Loudspeaker
10" Two-Way Loudspeaker
TP10 features dual 3-inch high-frequency drivers and a 10-inch low-frequency woofer, with a front-ported design for enhanced bass performance.
Constructed with a MDF enclosure and finished with a durable textured coating.
Delivers clear and natural sound with full, well-defined vocals.
Supports multiple installation options, including ceiling suspension, horizontal mounting, rear mounting, and pole mounting.
HF Driver: 2 × 3" (75 mm) voice coil
LF Driver: 1 × 10" (250 mm), 2" voice coil
Rated Impedance: 8 ohms
Rated Power (RMS): 200W
Peak Power: 800W
Frequency Response: 45 Hz – 18 kHz
Coverage: 90° × 70°
Sensitivity: 96 dB (1W/1m)
Maximum SPL: 124 dB
Grille: Steel
Connectors: Binding post terminals (red/black)
Net Weight: 13.5 kg
Dimensions (W × D × H): 305 × 305 × 478 mm
