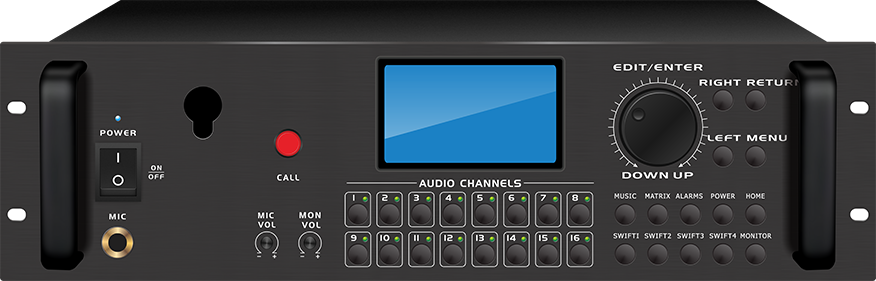

Product Introduction

Intelligent time schedule broadcasting host is an intelligent public broadcasting system that integrates music playback, intelligent timing control, audio matrix, intelligent fire linkage, power control, computer programming control, recording and other functions.

Product Features

■ Standard 19-inch rack design, black aluminum oxide brushed panel, professional mechanical assembly process, the machine appearance is very high-grade.

★ Light-touch quick-flow key operation programming, industrial-grade 4.3-inch TN true-color LCD display, Chinese subtitles, easy and convenient to operate, the system line connection is completed, just edit the program in the computer or the host computer to operate to meet the daily broadcasting needs.

■ The use of ARM9 platform, microcomputer control, single-key shuttle, graphical interface, multi-level menu operation mode; with Simplified Chinese, Traditional Chinese, English three-language menu to switch at will.

■ New programming mode, built-in 4 sets of main programs, 6 sets of special backup programs, a key to call the day and tomorrow's program run. Each set of timer program up to 256 steps, the main program program cycle by 7 days, special backup program program according to a specific date, to meet a variety of time, a variety of occasions to use the needs.

■ Flexible and diverse playback modes, supporting on-demand playback, insert playback, scheduled playback, programmed playback, remote control playback, programmed playback and other playback modes.

■ Timed music programs are edited and played by music file name. Save the trouble of pre-programming file serial numbers. The task content is clear at a glance.

■ High-precision RTC clock, 24-hour accurate to the second 24 hours a day according to the weekly system to run the program, timed playback up to 99 songs.

★ Built-in powerful and flexible audio matrix, 6-channel audio input, 1-channel fire audio input, 32-channel audio output, can be manually or automatically switched at will; each area can play different programs at the same time, without interfering with each other.

■ Input signals with independent volume adjustment, can be applied to different audio equipment.

★ Built-in MP3 audio source can be programmed for timed playback, using the SD card to store MP3 music, built-in 2GB/4GB memory, you can infinitely expand the storage capacity; support for MPEG 1/2 Layer 3, WMA, WAV, OGG and other audio formats; with a shortcut key, a key to call the MP3 track, simple and convenient.

■ Built-in high-definition FM radio can be programmed timer playback, support for FM program recording, you can record selected FM radio programs at will.

■ External control of a variety of audio devices, to achieve the specified time, specified location (area), play the corresponding program (music).

■ Powerful power management function, built-in 6-way power management, 4-way programmable control of the power supply, 2-way expansion of the synchronized power (short-circuit signal) output, and can be externally controlled power supply sequencer for expansion.

■ Built-in 16-channel fire collection signal input (short-circuit signal), multi-mode fire alarm function, including the whole area of independent alarm, partition independent alarm, adjacent (1.2.3.4) partition of the six alarm modes.

■ Local broadcast paging function, can flexibly realize the whole area, partition broadcast paging.

■ With the call station can be remote paging broadcast; through the call station's audio access, can be off-site broadcast program back to the room for broadcast.

■ Built-in monitoring, can be selected for various input signals to monitor.

■ Power outage automatic protection, all the contents of the editing program are not lost, the incoming call automatically resume operation.

■ Support RS-232 computer interface, all functions are directly controlled by the computer.

■ Computer programmed and formulated for the host computer, and then downloaded to the host computer, making the cumbersome host computer programming simple and convenient.

■ Remote control function, through the computer to the remote control button function configuration, can be any key remote control configuration into power management, MP3 playback and partition control, remote control distance up to more than 200 meters.

■ Support offline operation of the host computer.

■ Computer time update to the host, so that the host time and computer time to keep synchronized.

■ Self-created backup automatic control function, convenient and practical, flexible manual, automatic control, with a number of functions quickly.
