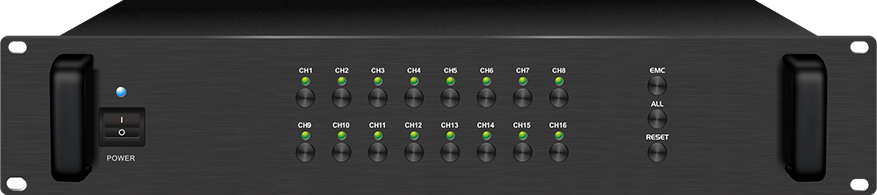

Product Introduction

The cabinet-type forced power supply device that can accept the control of the intelligent host provides a DC 24V power supply for the intelligent public broadcasting system to force the volume controller to open.

Product Features

■ Standard 19-inch rack design, black anodized aluminum brushed panel, professional mechanical assembly process, the machine appearance is very high-end.

★ 16-channel continuous DC 24V power output, expandable to up to 128 partitions;

■ The total output power is up to 280W; the maximum output power of each group is 150W;

★ 1-channel alarm short circuit collection, 1-channel alarm DC24V collection; 1-channel alarm short circuit signal output.

■ When the alarm short circuit is triggered, the adjacent layer partition can realize the forced cutting of the DC 24V power output;

■ An address dial switch is set to set the address of the machine; it can meet the address confirmation when multiple devices are used together;

■ There is a communication control interface (RJ45), which can be controlled by the control host to realize programmable control to force the volume controller to open, etc.;
