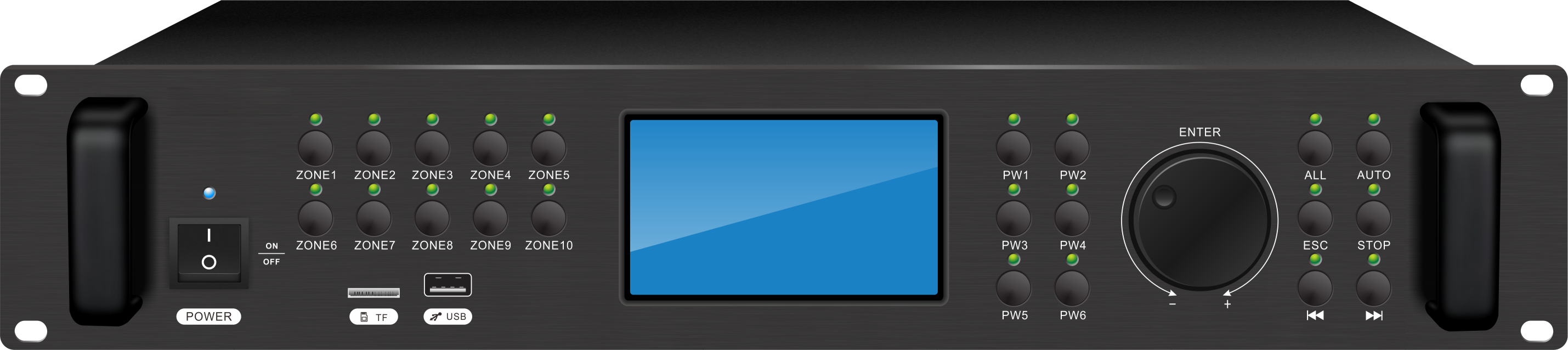

Product Introduction

The intelligent schedule broadcast host is an intelligent public broadcast system that integrates music playback, intelligent timing control, partition control, intelligent fire linkage, power supply control, computer programming control, recording and other functions.

Product Features

■ Standard 19-inch rack design, black aluminum brushed panel, professional mechanical assembly process, the machine appearance is very high-end.

★ Touch-type quick flow button operation programming, industrial-grade 4.3-inch TN true color LCD display, Chinese subtitles, simple and convenient operation, after the system line is connected, you only need to edit the program on the computer or operate on the host to meet daily broadcasting needs.

■ Adopting ARM9 platform, microcomputer control, single-key shuttle, graphical interface, multi-level menu operation mode; with simplified Chinese, traditional Chinese, English three language menus to switch at will.

★ New programming mode, built-in 4 sets of main programs, 6 sets of special standby programs, one-click call today and tomorrow program operation. Each set of timing scheme has up to 256 steps, the main program scheme is cycled for 7 days, and the special standby program scheme is executed on a specific date to meet the use needs of various times and occasions.

■ Flexible and diverse play modes, supporting on-demand, interstitial, scheduled play, program-controlled play, remote control play, program-controlled play and other play modes.

■ Scheduled music programs are edited and played according to the music file name. It eliminates the trouble of pre-arranging file numbers. The task content is clear at a glance.

■ High-precision RTC clock, accurate to the second 24 hours a day, running programs on a weekly basis, and scheduled play can reach 99 songs.

★ Built-in MP3 audio source can be programmed for scheduled play, using SD card to store MP3 music, built-in 2GB/4GB memory, storage capacity can be expanded infinitely; supports MPEG 1/2 Layer 3, WMA, WAV, OGG and other audio formats; with shortcut keys, one-click call MP3 tracks, simple and convenient.

■ Built-in high-definition FM radio can be programmed for scheduled play, supports FM program recording, and can record selected FM radio programs at will.

★ The host comes with 5-input and 10-output power partitions, realizing programmed automatic or manual partition broadcasting, breaking the traditional operation mode, and opening partition channels at will.

■ Equipped with 6 programmable timing control power sockets, manual operation/automatic operation. And equipped with an expansion interface for external power sequencer.

■ Fire signal triggers, the power connected to the host automatically powers on, all partitions automatically open, alarm reset, and switch to normal broadcast.

■ Built-in output sound source monitoring function, and adjustable monitoring volume.

■ Automatic power failure protection, all edited program contents are not lost, and the call automatically resumes operation.

■ Support RS-232 computer interface, all functions are directly controlled by the computer.

■ The computer programs and configures the host, and then downloads it to the host, making the cumbersome host programming simple and convenient.

■ Remote control function, through the computer to configure the function of the remote control button, any key of the remote control can be configured as power management, MP3 playback and partition control, and the remote control distance can reach more than 200 meters.

■ Support host offline operation.

■ The computer updates the time of the host to keep the host time synchronized with the computer time.
