Product Introduction

The intelligent timed broadcast host is an intelligent public broadcast system that integrates music playback, intelligent timing control, intelligent fire linkage, power supply control, computer programming control, recording and other functions.

Product Features

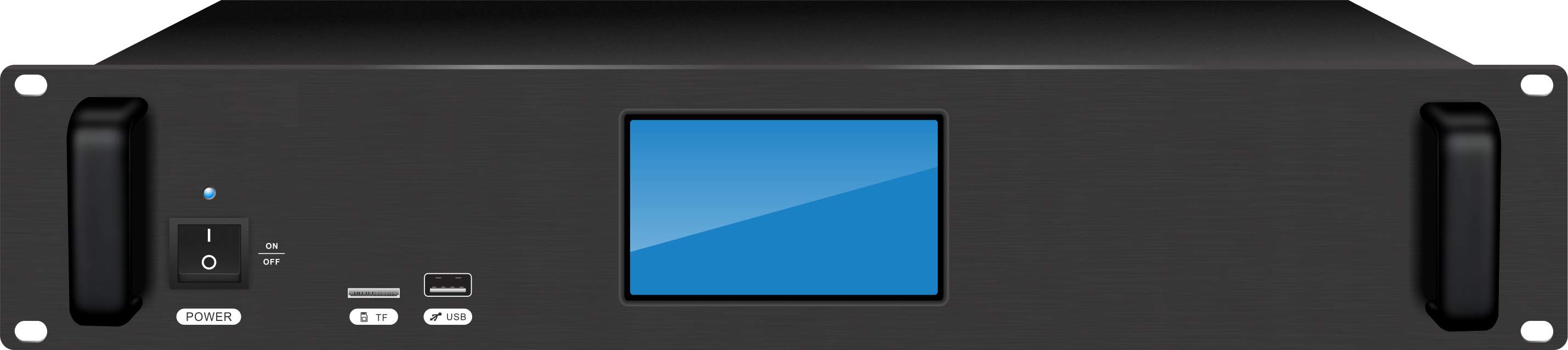

■ Standard 19-inch rack design, black anodized aluminum brushed panel, professional mechanical assembly process, the machine appearance is very high-end.

★ Touch-type quick flow button operation programming, industrial-grade 3.2-inch TFT true color LCD display, Chinese subtitles, graphical interface, simple and convenient operation, after the system line is connected, you only need to edit the program on the computer or operate on the host to meet daily broadcast needs.

■ Built-in 4 sets of programs, each set of timing schemes has up to 120 steps, meeting the needs of use at various times and occasions.

■ The host supports program copying, and can copy program one to program two, three, and four.

■ High-precision RTC clock, 24 hours accurate to seconds, running programs on a weekly basis around the clock, and timing playback can reach 99 songs.

■ You can view the names of the first 200 songs in the memory, displayed by page, and 8 songs can be displayed on one page, which is convenient and intuitive.

★ Built-in MP3 audio source can be programmed for timed playback. SD card is used to store MP3 music. Built-in 4GB memory can be expanded to 8G, 16G, 32G storage capacity; supports MP3 and WMA audio formats; with shortcut keys, one-click call MP3 tracks, simple and convenient.

■ Can be inserted into a USB flash drive for playback, USB flash drive can be played on a scheduled basis (USB port cannot be connected to a computer)

■ Built-in high-definition FM radio function, can save 4 commonly used frequencies for easy listening, automatic search and manual tuning.

■ Equipped with 2-way programmable timed control power sockets, manual operation/automatic operation. And equipped with an expansion interface for external power sequencer.

■ Fire signal triggers, the power connected to the host automatically powers on, all partitions automatically open, alarm reset, and transfer to normal broadcasting.

■ With timed bracket function, the inserted timed point is automatically deleted after playback.

■ 1 microphone input, 1 line input, 2 audio outputs

■ Built-in output sound source monitoring function, monitoring sound can be selected to be turned off or on.

■ Automatic protection in case of power failure, all edited program contents are not lost, and the operation is automatically restored when a call comes in.

■ The computer programs and configures the host, and then downloads it to the host, making the cumbersome host programming simple and convenient.

■ Remote control function, the remote control distance can reach 20-100 meters, depending on the environment.

■ Supports offline operation of the host; supports the self-recovery function of the system after power failure and restart.
