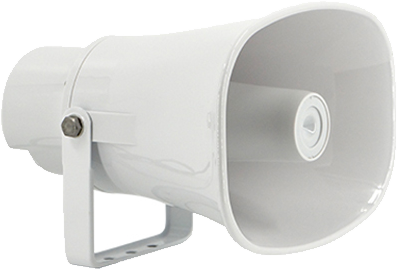

TP-511 Active Horn-loaded Speaker 15W
Product Features
■ Full aluminum alloy construction with stainless steel bracket and weatherproof horn-loaded transducer;
■ Integrated high-efficiency tweeter delivers superior sound projection and wide dispersion;
■ Class D digital amplifier circuit ensures high efficiency, low distortion, and minimal power loss;
■ 1 unbalanced signal input channel with independent volume control;
■ Auto power-saving mode disengages main amplifier when no signal is detected;
■ Wide DC input compatibility (12-24V) supports solar battery applications;
■ Designed for indoor/outdoor public address systems (plazas, stations, airports) with wall-mount installation;
■ Output power: 15W
■ Overall power consumption: ≤ 22.5W
■ Standby power consumption: <3W
■ Sensitivity: 105 ± 3dB
■ Frequency response: 400-8KHz
■ Harmonic distortion: ≤ 1%
■ Signal-to-noise ratio: > 65dB
■ Protection circuit: overload, short circuit protection circuit
■ Working environment temperature: 5 ℃ ~ 40 ℃
■ Working environment humidity: 20% ~ 80% relative humidity, no condensation
■ Operating power supply: DC24V/3A
■ Waterproof grade: IP66
■ Weight: 1.40Kg
■ Dimensions: Φ222x162x232mm
■ Construction: Aluminum enclosure + U-shaped bracket
■ Finish: White
