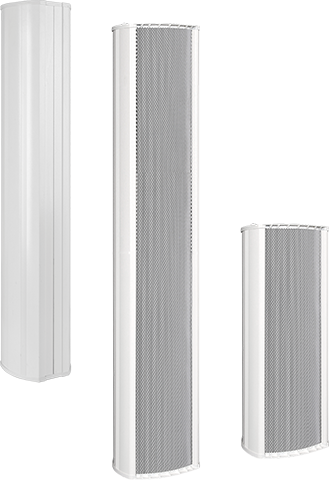

T-39874G Intelligent Cloud Broadcasting System

Intelligent Cloud Broadcast Column Speaker 120W(IP+4GMode)

Product Description

is mainly for outdoor use and rural scenes.

Features

■ The sound column adopts aluminum alloy design, the internal circuit board is sprayed with three-proof paint, the whole machine is anti-corrosion and moisture-proof.

■ Using full digital decoding, receiving superior remote control, according to the different use of the environment to achieve multi-level partition, support the whole area playback, partition playback, single-point playback.

■ Support full network pass 4G access.

■ Support 10M/100M adaptive network port access.

■ Support multi-task reception, the terminal can select the high priority according to the task priority priority playback.

■ Support equipment power failure broadcast automatic recovery function.

■ Support work status indication, the product with LED indicator, can indicate different status.

■ Support terminal parameters, status reporting, can query the terminal parameters in the platform.

■ Support amplifier overheating, over-voltage, over-current protection.

■ Built-in Bluetooth module, through the cell phone Bluetooth pairing connected to the device can be configured through the cell phone APP equipment information configuration, equipment volume, belongs to the region, geographic location information, equipment operation logs, maintenance personnel and other information to do configuration changes.

■ Support geographic location information, can display the terminal location on APP/platform, and can directly navigate to the terminal installation location through APP.

■ Support code scanning installation: scanning the QR code on the body of the machine with the cell phone APP can complete the configuration of the attributes of the equipment (including the region to which it belongs, the installation location, the real picture of the installation location, etc.).

■ Support automatic equipment status return function.

■ The sound column adopts high-bass crossover design, good sound quality.

■ Support remote volume control, you can modify the terminal volume remotely.

Specifications

■ Network communication protocol: MQTT, UDP, TCP, RTMP

■ Grid chip rate: 10/100Mbps

■ Network standard: GPRS, CDMA, WCDMA, TD-SCDMA, FDD-LTE, TDD-LTE

■ Audio encoding format: MP3 / WAV / AAC

■ Audio sampling, bit rate: 8kHz~44.1kHz, 16bit, 8kbps~320kbps

■ Signal-to-noise ratio, frequency response: >90dB, 20Hz-16kHz

■ Output power: 120W

■ Overall power consumption: ≤180W

■ Standby power consumption: ≤ 5W

■ Interface: 1 RJ45 network interface, 1 SIM card socket, 1 4G antenna interface, 1 Bluetooth antenna interface

■ Operating temperature: -20 ℃ ~ 55 ℃

■ Operating humidity: ≤ 90% (no condensation)

■ Operating power supply: ~ 110-240V/50-60Hz

■ Drivers: 5.25″x4 25-core horn tweeter x1

■ Ingress Protection (IP) Rating: IP66

■ Net Weight: 9.15kg (20.17lbs)

■ Dimensions (W×H×D): 780×170×150mm (30.7×6.7×5.9")

■ Enclosure Material: Aluminum alloy

■ Finish: White
