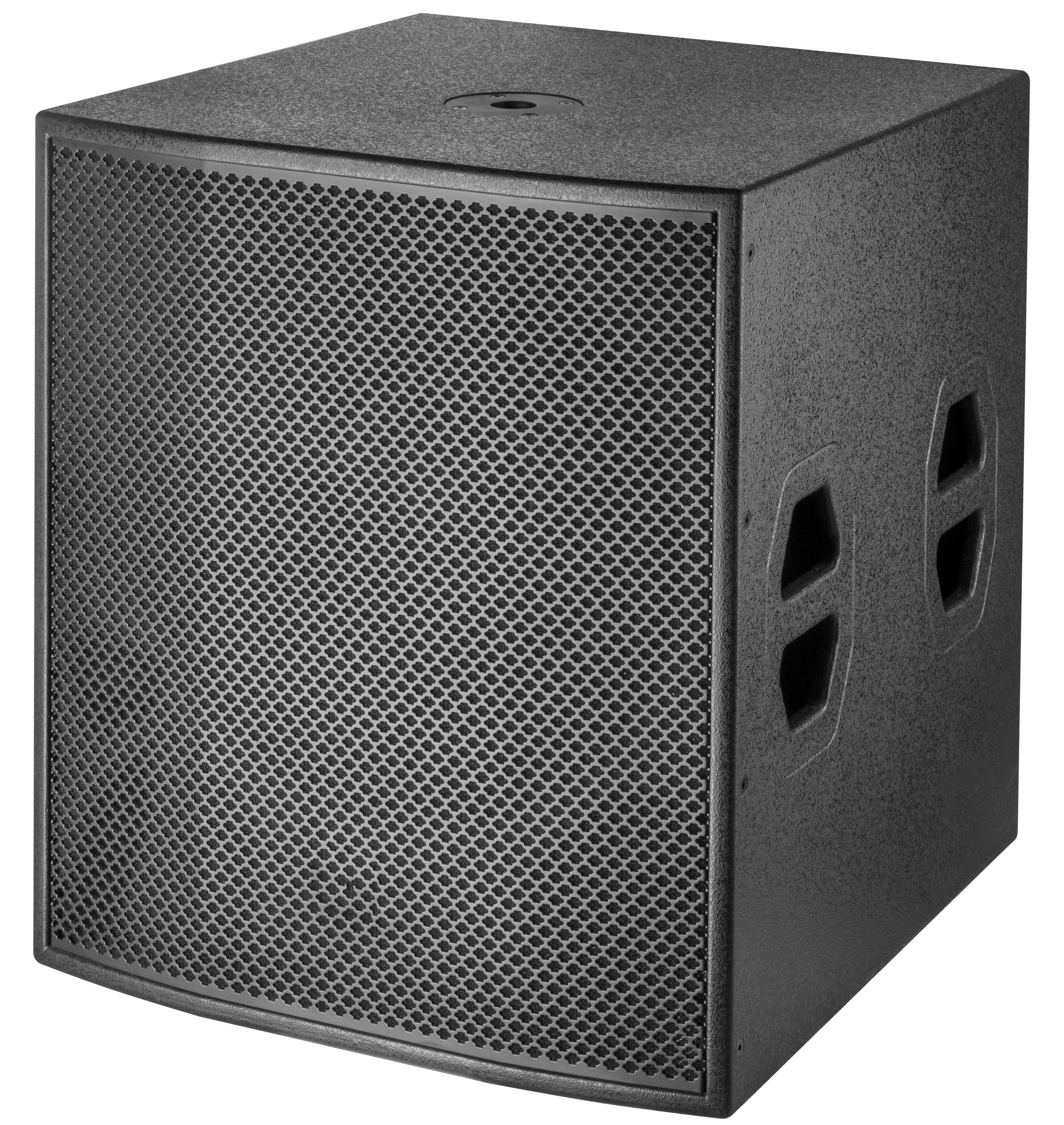

SUB150+ Series Subwoofer Speakers

High-end Single 15" Passive Compact Subwoofer

SUB150+ is a single 15-inch subwoofer.The woofer uses aluminum cone frame and large-diameter imported voice coil design, which has the features of sufficient power, high power and high sensitivity.The heat dissipation function of the woofer is designed to quickly dissipate the heat generated by the voice coil to ensure that the stability under large dynamic for a long time. Cabinet uses ehigh-quality plywood and the surface is coated by PU point-paint finishing.The design of the refractive cabinet greatly increase the power and amplitude strength tolerance of the bass and improve the conversion efficiency of the low frequency. With a small distortion of the large sound pressure level, it can output high sensitivity, deeper and powerful low frequency, which is the ideal partner for sound reinforcement equipment.

Frequency Response:40Hz-300Hz

Sensitivity:99dB/M/W

Maximum SPL:126dB continuous,132dB peak

Rated Power:500W AES, 2000W Peak

LF Drivers:  1×15"(385mm)/4"voice coil B&C 15TBW100

Nominal Impedance:8 ohm

Connectors:2×Speakon NL4

Net Weight: 39kg

Dimensions(WxDxH):470×600 ×600mm
