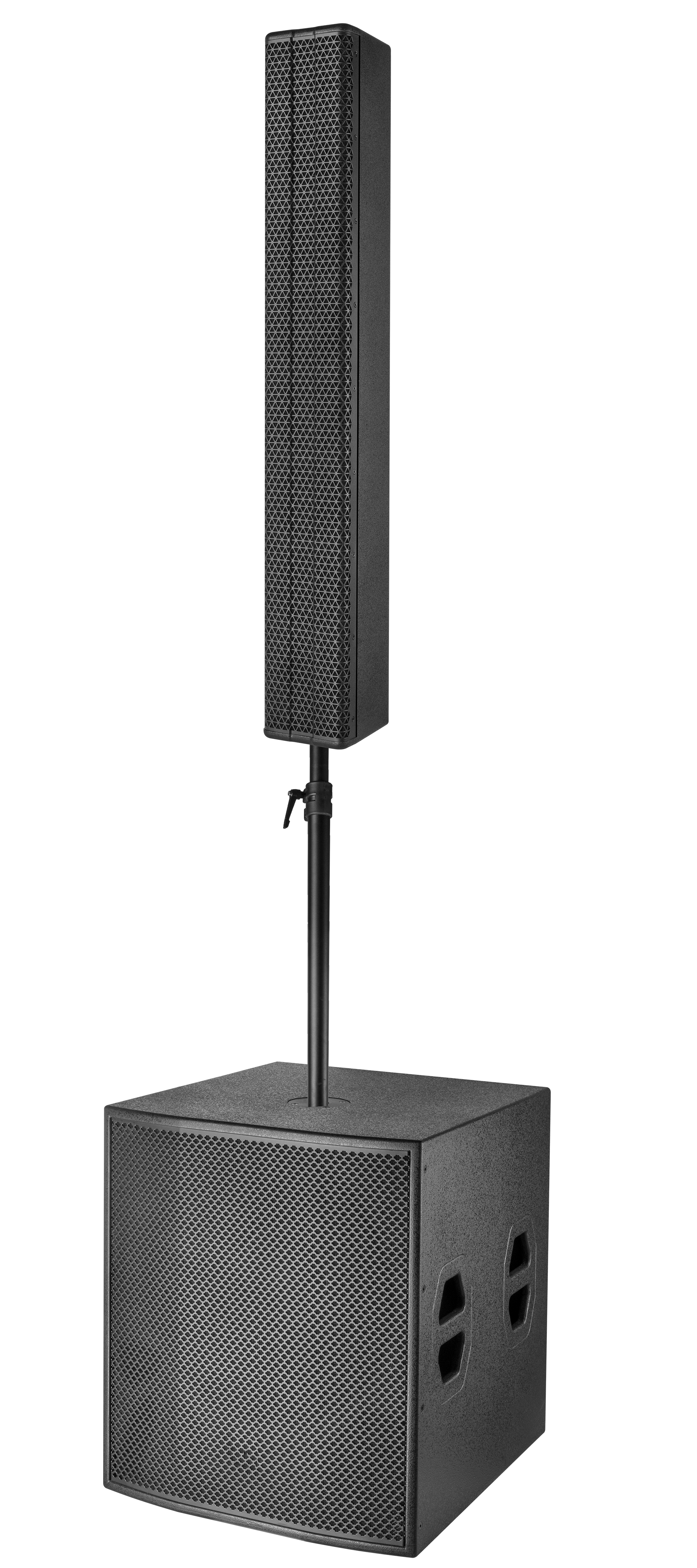

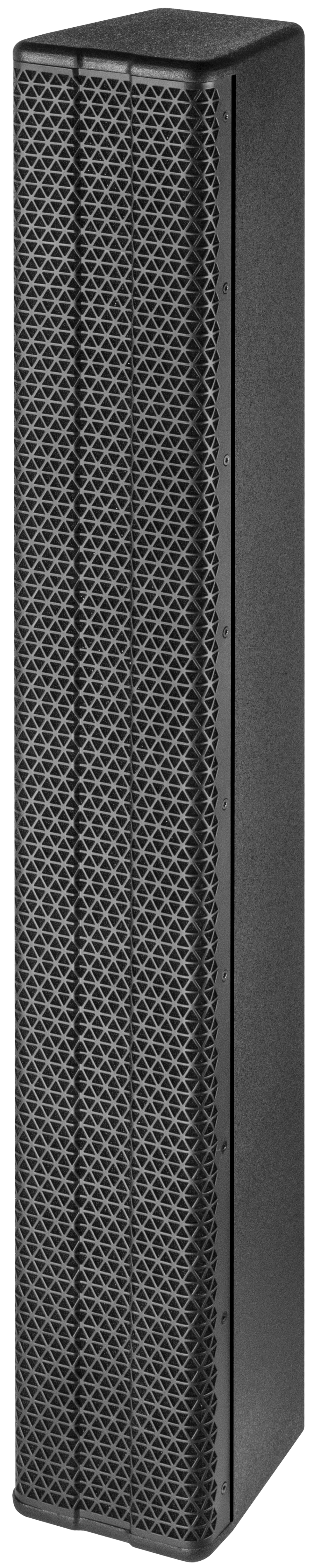

S3 Series Column Speakers
6 x 5.3-inch Two-way High-performance Column Speaker
It is composed of two 34-vc tweeter, configured with an accurate linear acoustic wavefront tweeter horn, to achieve accurate and uniform acoustic coverage. It also applies six 5.3-inch bass/midrange woofers which are developed for the mid and low-range frequency in the line array system. The crossover is well-turned. It operates at high power with low distortion. the coverage angle has strong constant directivity and keeps the consistency of sound in different angles. The speaker is suitable for the performance hall and mobile events that require high definition.
Frequency Response:70Hz-20KHz
Sensitivity (1W@1m):102dB (passive mode)
Nominal Impedance: 12Ω
Rated Power: 900W AES 3600W peak (Bi-amp mode)
LF:6×5.3"(150mm)/1.5" voice coil
HF:2"(25mm)/1.4 "voice coil
Coverage:100°×30°(H×V)
Maximum SPL: 127dB continuous,133dB peak
Connections: 2×Speakon NL4
Net Weight: 39kg
Dimensions (W×D×H): 160mm×190mm×1150mm
