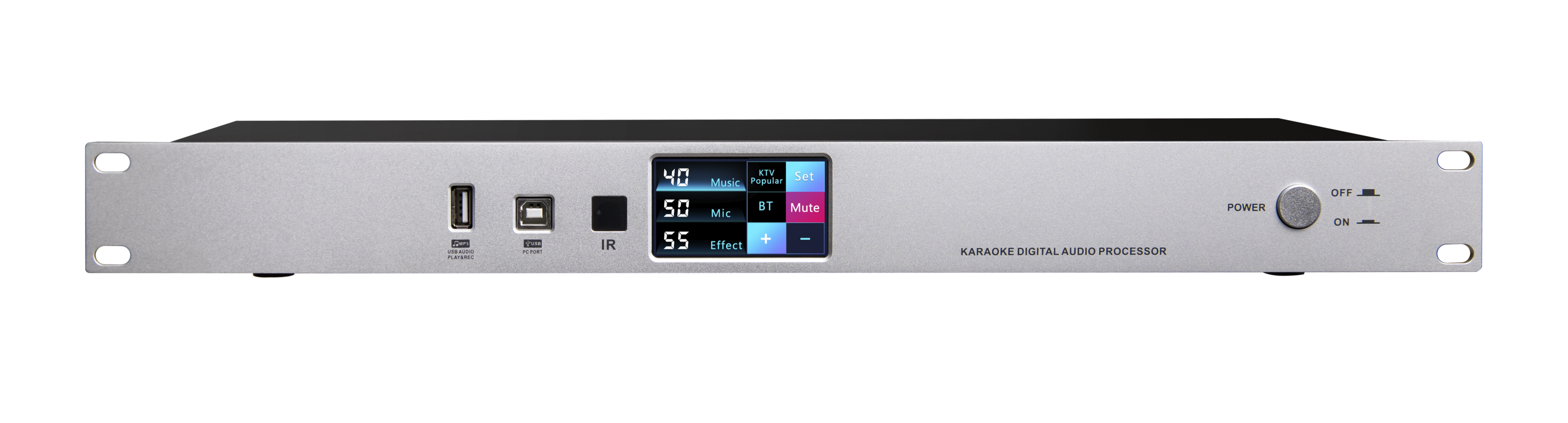

R5S PRE-AMP
R5S PRE-AMP
Product Description
- Using 32-bit high-performance DSP and AD/DA, 24-bit/48K sampling pure digital professional
KTV preamp effector;
- LCD color touch screen high resolution Chinese and English display;
- Dual-mode Bluetooth, play high-quality music, while controlling the cell phone Android APP;
- U disk music playback function, support for MP3/WMA/WAV/FLAC/APE multiple formats;
- Fiber optic digital audio input.
- AB group microphone, dual-channel independent 5-band parametric equalization.
- Unique microphone feedback mimicking algorithm, with 4 levels of intensity adjustable.
- Professional singing echo effect and reverb effect; music modulation function
- Output channels can all be output independently.
- Singing mode/hot dance mode/auto mode.
- Administrator, User and Primary modes with password management;
- Function of password key lock; Volume initial and maximum values.
- With 10 groups of user parameters storage and recall;
- VOD jukebox control interface RS232, wireless infrared remote control function;
- Driver-free USB interface connection, real-time control of all parameters through PC software.
Product Parameters
Frequency Range:MIC:20-200000Hz;MUSIC:20-20000Hz
Frequency Response:+/-1dB
Signal to Noise Ratio SNR:>93dB Distortion THD+N:<0.01
Dynamic Range:ADC 105dB, DAC 105dB
Maximum Input Level:MIC:160mVrms/15dBV;MUSIC:3.8Vrms/12dBV
Maximum Output Level:MIC:3.8Vrms/12dBV;MUSIC:3.8Vrms/12dBV
Noise Noise Level:MIC:<-85dBu;MUSIC:<-90dBu
Input Interface:MIC:4-way wired microphone, divided into A/B group; MUSIC:Lotus; MUSIC:<-90dBu; MUSIC:<-90dBu
MUSIC: Lotus (IN1/2), Optical (Optical), U disk, Bluetooth
Output Interface: 6 XLR (XLR) 6-channel output, a stereo recording output
Parametric Equalization: main output 7-band, center 7-band, surround 7-band, ultra-low 5-band
MIC: Dual 5-band parametric/7-band fixed frequency, Reverb 5-band, Echo 5-band; MUSIC: Dual 5-band parametric/7-band fixed frequency
Crossover Xover: 7 types of output 12/24dB high and low pass; MIC: 3 types of output 12/24dB high and low pass.
MIC: 3 types of 12/18/24dB high and low pass;MUSIC: 3 types of 12/18/24dB high and low pass
Limiter Compressor:Output adjustable parameter limiter;MIC:Adjustable parameter limiter;MUSIC:Adjustable parameter limiter
Whistling Suppression FBX: 4 levels of whistling suppression built into the software.
Power Requirement and Consumption Power Consumption: 85-250V, 50/60HZ, 15W
Measurement: LxWxH: 483x215x50mm
Net weight: 2.0kg
Gross weight：2.6kg
