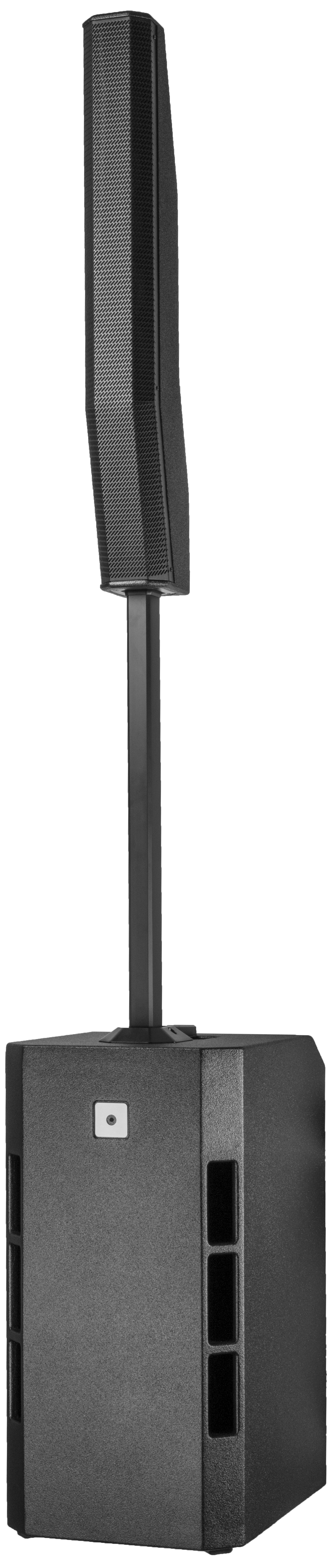

R15 Active Portable Column Speaker
8x 3.5" Column Speakers+15" Active Subwoofer Speaker
A column of 8*3.5" units and a 15" long-stroke woofer with a bandpass cabinet.
The unique phase plug design can greatly widen the radiation angle without damaging the frequency response of the unit, the coverage angle reaches an amazing 180 degrees, even in the speaker side of the people can clearly hear the flat sound signal.
Comes with a two-way mixing circuit and can adjust the volume independently.
Frequency range (-3dB): 30Hz-20KHz
Low Frequency Design: 15 inch band pass dual inverted design
Mid-high frequency design: 8 * 3.5 phase plug line source design
Sensitivity: 93dB
Maximum sound pressure level 130dB
Coverage (Horizontal Vertical): 160 ° 40 °
High and low frequency channel power: 600W+600W
Crossover frequency: 4th/200Hz, DSP electronic crossover frequency
Interface 2-way Canon multifunction jack input
1 channel stereo RCA input; 1 channel Bluetooth input
1 channel canon output; function support support low frequency boost
Bluetooth support TWS; support one key noise reduction
Cabinet Subwoofer: 15mm thick birch plywood
Sound post: 9 mm thick birch plywood
Support rod: aluminum;
Grille Matte black paint
Dimensions (W*H*D)
Subwoofer: 350*710*500mm
Sound post: 103*808*180mm;
Support rod: 35*800*50mm
Total height of system: 2135mm
Net weight 25.5Kg;
Gross Weight:28.5Kg
