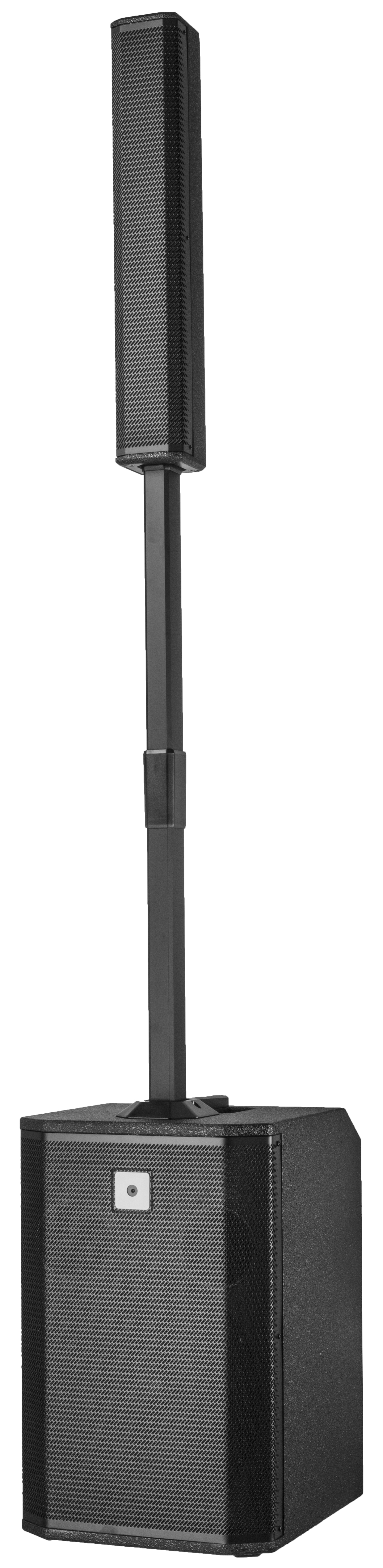

R12 Active Portable Column Speaker
8x 2.3" Column Speakers+ 12" Active Subwoofer Speaker
It is consisting of 4* 2.3”units and a 8" long-stroke woofer with a dual bandpass cabinet.
The unique phase plug design can greatly widen the radiation angle without damaging the frequency response of the unit, the coverage angle reaches a staggering 140 degrees, even people on the side of the speaker can clearly hear the flat sound signal.
Comes with a two-way mixing circuit, and can be adjusted independently of the volume.
Frequency range (-3dB): 45Hz-20KHz
Low Frequency Design: 8 inch band pass dual inverted design
Mid-high frequency design: 4 * 2.3 inch
Sensitivity: 90dB
Maximum sound pressure level: 122dB
Coverage area (horizontal vertical): 100 ° 40 °
High and low frequency channel power: 150W+150W
Crossover frequency: 4th/200Hz, DSP electronic crossover frequency
Interface 2-way Canon multifunction jack input
1 channel stereo RCA input; 1 channel Bluetooth input
1 channel canon output; function support support low frequency boost
Bluetooth support TWS; support one key noise reduction
Cabinet Woofer: 15mm thick birch plywood
Sound post: 9 mm thick birch plywood
Support rod: aluminum;
Grille Matte black paint
Dimensions (W*H*D)
Subwoofer: 258*465*330mm;
Column Speaker: 86*371*103mm
Support rod: 35*800*50mm;
Total height of system: 1815mm
Net weight: 11.5Kg;
Gross weight: 12Kg
