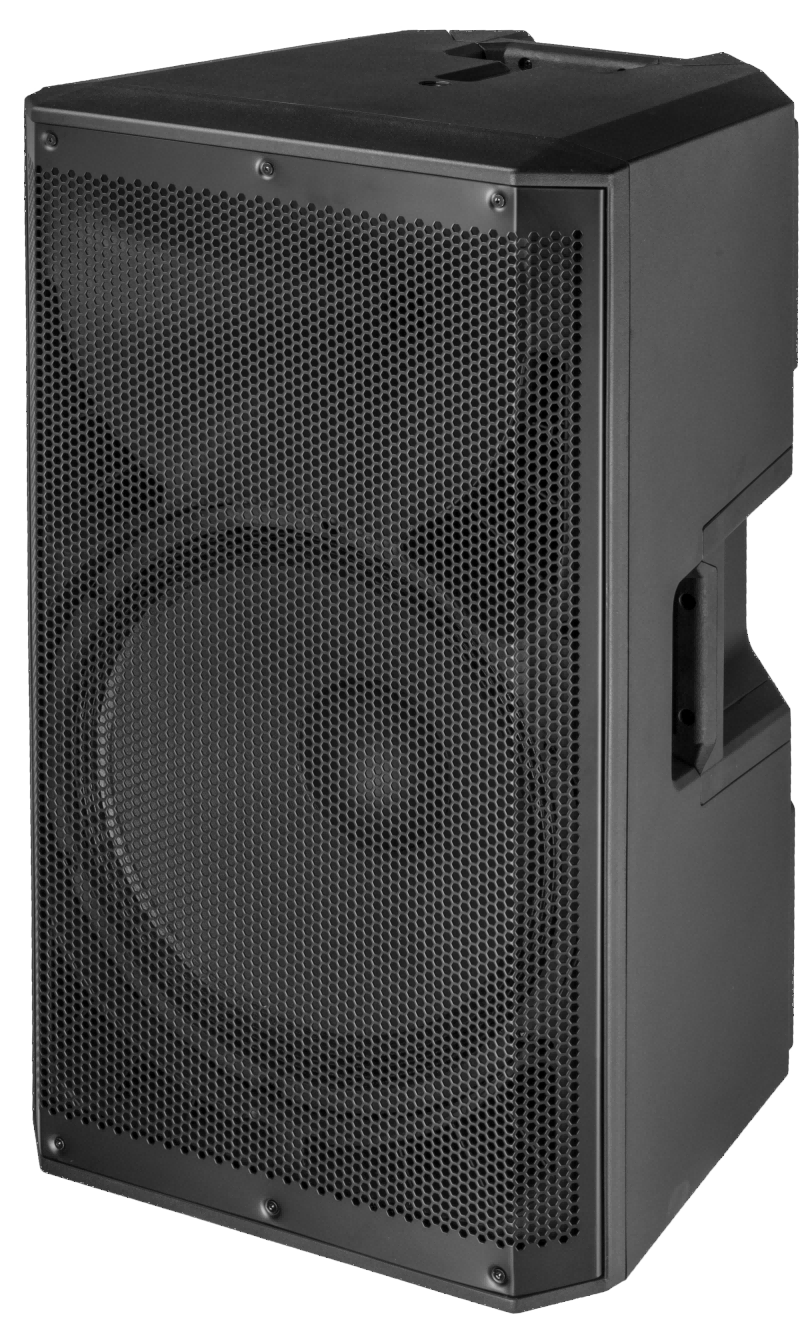

QS12 Series Plastic Active Multi-Purpose Professional Speakers
12” Active Two-way Plastic Speaker
It is consisted of a 36mm voice coil tweeter and 12-inch woofer.
A multi-purpose, lightweight portable speakers, molded from high-strength PP material, stable and reliable.
The digital amplifier used is the latest technology digital amplifier, weight less than 1KG, instantaneous power up to 1200w.
Large dynamic, high sensitivity. The treble is clear and delicate, the midrange is transparent and full, and the low-frequency has powerful strength.
Support the top hanging/horizontal hanging/back support/bottom support and other installation methods.
Amplifier specification:
Amplifier line type: class D.
Amplifier rated power AES: 600W.
DSP : 96kHz signal sampling frequency, 24-bit quantization accuracy
Preset program: DSP control preset program;
Amplifier frequency response (1W8Ω mono) : 20Hz-20kHz (±0.5dB).
Intermodulation distortion : <0.05%.
Total harmonic distortion: <0.05%.
Input mode: analog audio, with one XLR input connector and one XLR output connector;
Cooling method: fan cooling + natural cooling;
Operating temperature: -20℃-80℃.
Power supply range: AC100V--240V 50/60 Hz.
System protection settings: DC protection / short circuit protection / overheating protection / overload protection / soft start protection / overvoltage protection / undervoltage protection.
Speaker specification:
Tweeter: 1×1“(25mm)/1.4” voice coil
Woofer: 1×12“(300mm)/2” voice coil
Frequency response range: 60Hz-20KHz
Sensitivity: 96dB/M/W
Maximum sound pressure: 119dB continuous,125dB peak
Rated power: 300W
Peak power: 1200W
Coverage: 90 ° × 50 °
Rated impedance: 8 ohm
Net weight: 15.5kg
Dimension(WxDxH):350×390×600mm
