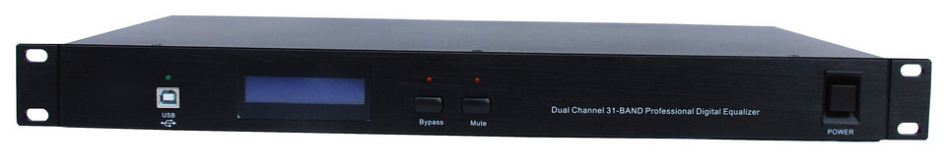

Q231A Series Equalizer
Q231A Series Equalizer
Dual 31-band constant Q equalizer, 1/3-octave
Copy & Paste channel adjustment through PC interface.
Adjust channel lock and straightness through PC interface
Saving and uploading the adjustment channels through PC interface.
Real-time adjustment of digital compressor parameters.
+15dB input gain adjustment range
2X16 LCD display with 2 segments for output level monitoring.
BYPAS and MUTE functions on the panel.
Adjustment lock via PC interface
Engineering code lock can be set
Technical Parameter: LINE INPUT IMPEDANCE: UNBALANCED
Line Input Impedance: Unbalanced: 22K, 2.5V (RMS)
Maximum input level: 8v (RMS)
Output impedance: balanced: 150 ohms
Maximum output level: 4.0V (RMS)
Distortion: <0. 5%
Frequency Response: +/- 0.5dB (20Hz to 20kHz.)
Bottom Noise: <1mV
Power supply: AC180-240V/50-60Hz
Power consumption: <20W
Volume (WXDXH): 480*220*44mm
Gross weight: 4.3KG
