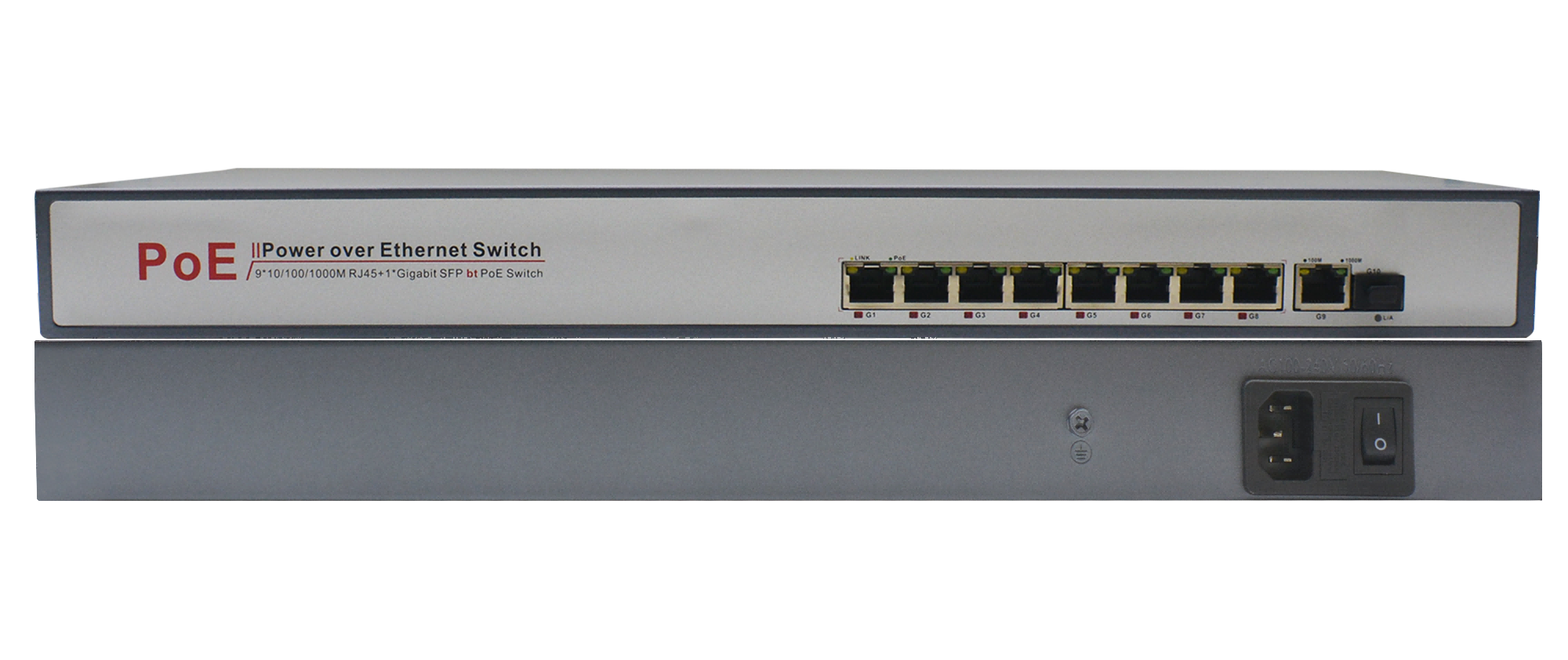

PW8-BT Series POE Switch
8-port Full Gigabit bt POE Switch
8-port full gigabit bt POE switch
Port Features: 8 10/100/1000Base-T POE ports (Data/Power)
1 10/100/1000Base-T uplink RJ45 port (Data)
1 x 1000Base-X SFP optical port slot (Data)
Port Characteristics: 1-8 ports 10/100/1000Base-T (X) auto-detect, full/half-duplex MDI/MDI-X adaptive
Backplane bandwidth: 20Gbps (non-blocking)
Packet forwarding rate @64byte: 14.88Mpps
MAC address table: 8K
LED Indicators: Power Indicator: PWR (green); Data Indicator: Link (yellow); POE Indicator: PoE (green); Uplink Port Rate Indicator: SPEED (green)
PoE port: 1-8 ports support IEEE802.3bt, and backward compatible with IEEE802.3af/at standard POE power supply.
Power supply pins: default support 1/2,4/5(+)&3/6,7/8(-) 8-cell power supply
Maximum single-port PoE power: 95W, standard IEEE802.3af/at/bt, when 8 ports are used at the same time, the average power per port is maximum 71W
Total power/input voltage: 600W AC (AC100-240V)
Matching power supply: Built-in switching power supply, AC: 100-240V 50-60Hz 4.1A
Operating temperature/humidity: -20 to +55°C; 5% to 90% RH non-condensing
Storage temperature/humidity: -40～+80°C; 5%～95% RH non-condensing
Dimension (L*W*H): 440*181*44.5mm
Net/Gross Weight: <2.5kg / <3.0kg
Installation: Desktop, 1U/19-inch cabinet installation
