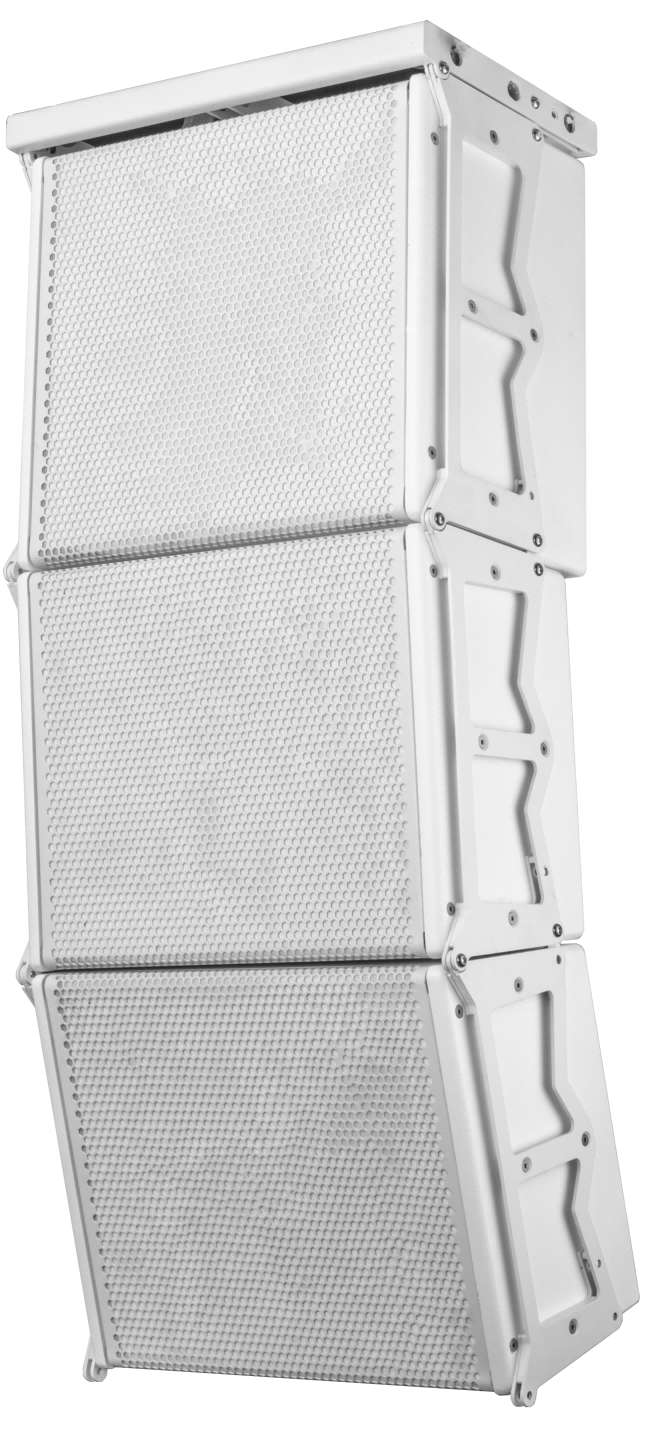

PLA504 Active 120W POE Dante Network Active Line Array Speaker
Four 5.25" Two-way POE Network Active Line Array Full-Range Speaker
PLA504 is a 4 × 5.25-inch two-way POE network active line array full-range speaker.
Composed of two 25mm voice-coil tweeters and four 5.25-inch woofers in a birch plywood cabinet with point-paint finishing on the surface.
Distribute power supply, transmission of audio signals, and intelligent control of network speakers through a network cable.
Automatic allocation of an IP address through the router's DHCP, which can be applied to any location of the LAN.
Independently control each receiving channel speaker to achieve point-to-point audio reinforcement.
Features simple wiring, flexible use, and easy management etc.
Support a variety of installation methods.
PS: This product has a passive version （Not POE and Dante)
Frequency Response：90HZ-20KHZ
Nominal Impedance：4 ohm
Rated Power：120W
LF Drivers: 4×5.25＂(130mm)/1＂voice coil
HF Drivers: 2×1＂(25mm)/1＂voice coil
Sensitivity：97dB/M/W
Maximum SPL：118dB
Directionality：90°×10°
Access Point：RJ45 10/100Mbps Adaptive Ethernet port
Protection function：Overcurrent protection；High temperature protection；Overload protection。
Net Weight:11.5kg
Dimensions(WxDxH):450×188 ×319mm
