PH800 Series POE Network Dante Digital Active Column Speaker

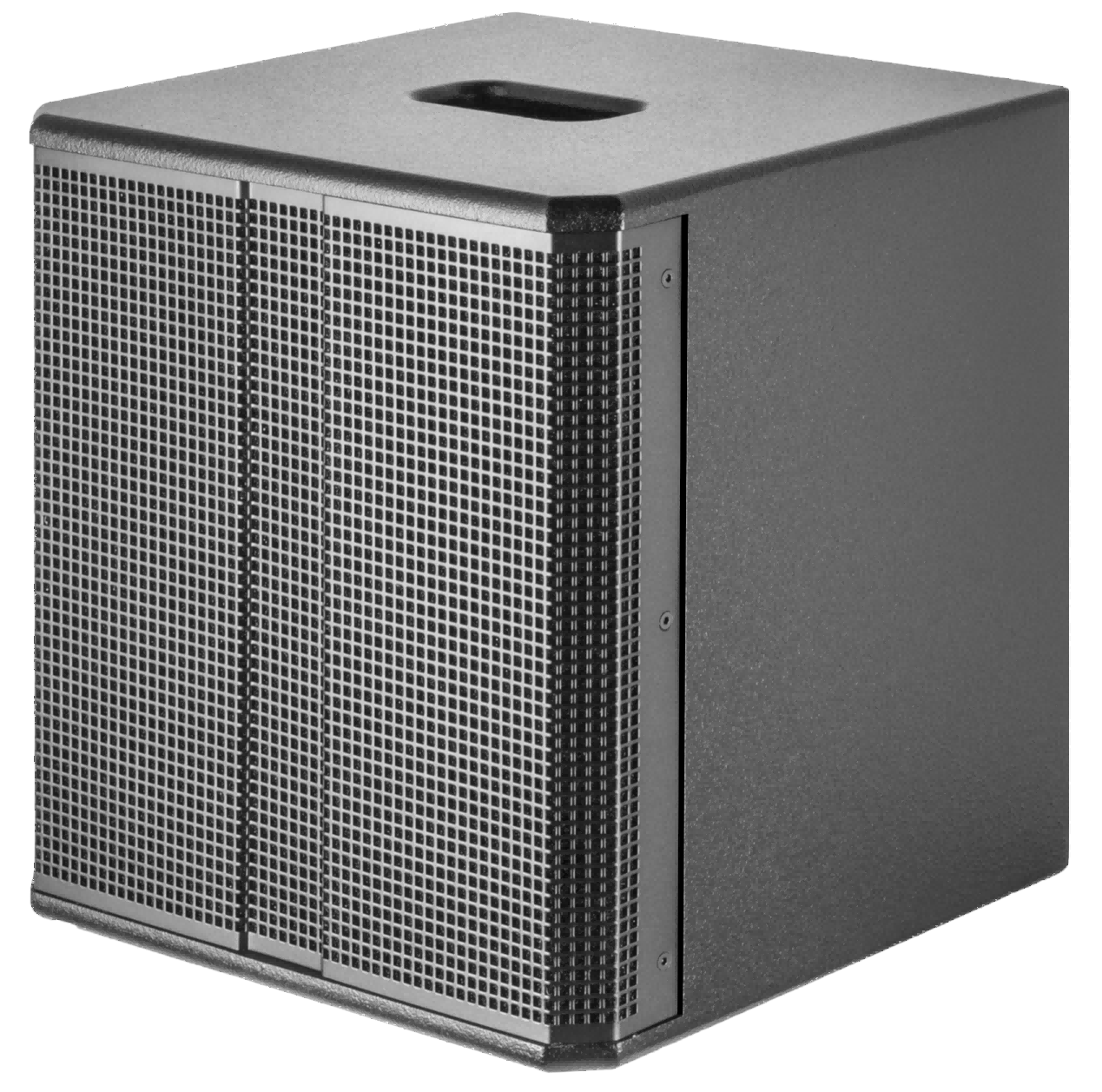

8" PoE Network Dante Digital Subwoofer
PH800 features a single 8-inch low-frequency driver, paired with a bass-reflex enclosure for enhanced low-frequency extension and improved efficiency.
Designed to deliver tight and controlled bass performance, making it an ideal companion for full-range column speakers in distributed audio systems.
Network & System Features
Delivers power, audio signal transmission, and intelligent control over a single Ethernet cable (PoE).
Supports DHCP for automatic IP address assignment, enabling flexible deployment anywhere within a local network.
Allows independent control of each speaker channel for point-to-point audio distribution.
Offers simple cabling, flexible operation, and convenient system management.
LF Driver: 1 × 8" (200 mm), 1.5" voice coil
Rated Impedance: 8 ohms
Rated Power (RMS): 120W
Frequency Response: 38 Hz – 150 Hz (note: corrected from original typo)
Sensitivity: 95 dB (1W/1m)
Maximum SPL: 115 dB
Grille: Steel
Network Interface: RJ45, 10/100 Mbps adaptive Ethernet
Protection: Over-current, thermal, and overload protection
Net Weight: 9 kg
Dimensions (W × D × H): 320 × 300 × 330 mm
