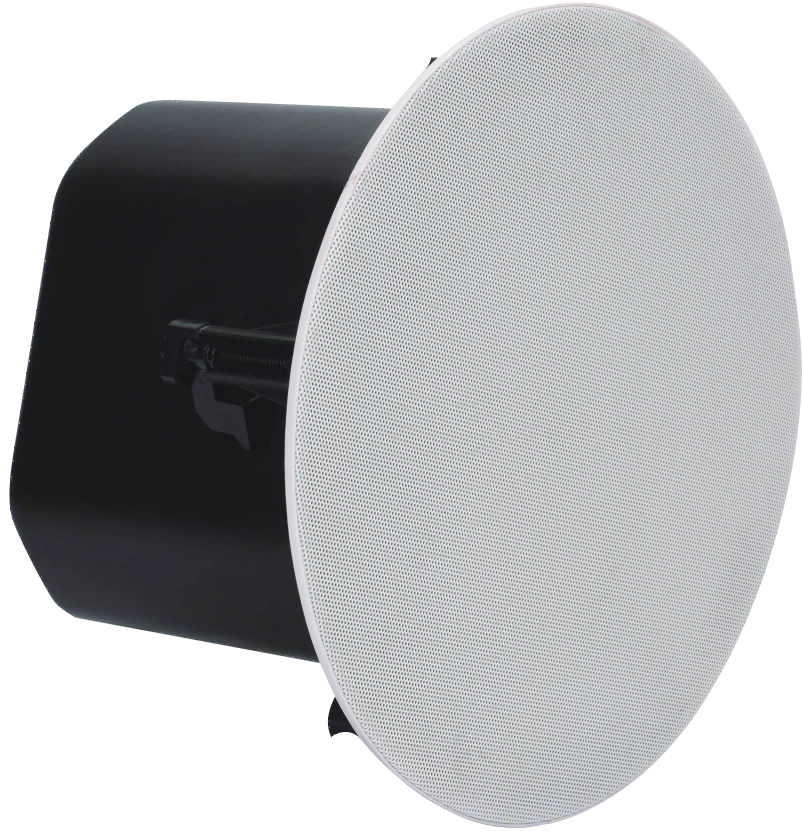

PE65T Series PoE Network Dante Digital Active Ceiling Speaker
6.5" POE Network Dante Digital Ceiling Speaker
Power Input: Compatible with IEEE 802.3af / 802.3at / 802.3bt
Audio Transmission Protocol: Dante
Woofer: 6.5" polypropylene composite cone with NBR rubber surround
Tweeter: 1" silk dome, neodymium magnet, 360° rotatable tweeter
Rated Output Power (RMS): 30 watts
Built-in Functions: Integrated power amplifier and DSP digital signal processing
Installation Methods: Supports both in-ceiling flush mounting and suspended installation, with an optimized design for easier installation in both low- and high-ceiling applications
Tweeter: 1 × 1" (25 mm) / 1" voice coil
Woofer: 1 × 6.5" (165 mm) / 1" voice coil
Rated Impedance: 8 ohms
Rated Power: 30W
Peak Power: 60W
Frequency Response: 65Hz–20kHz
Sensitivity: 89dB (1W/1M)
Maximum SPL: 111dB
Enclosure Material: Metal grille + metal back can enclosure
Interface: RJ45 10/100Mbps adaptive Ethernet port
Protection Functions: Over-current protection; over-temperature protection; overload protection
Weight: 3.3kg
Height: 197mm
Cutout Size: ∅246mm
