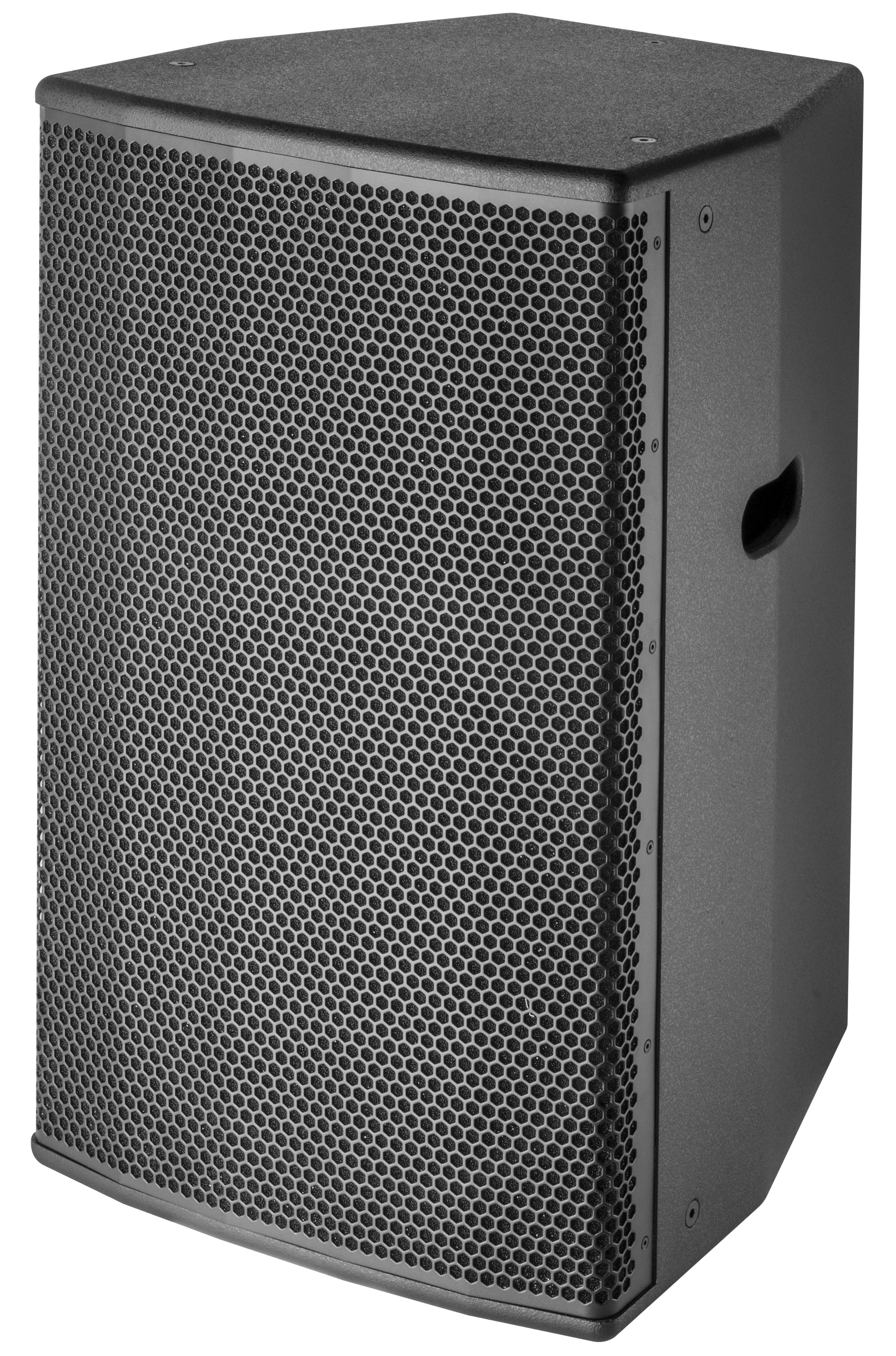

MF325 Series Full Range Speakers
15" three-Way Full Range Speaker
MF325 is a 15-inch three-way full-range professional speakers.
Composed of a 12-inch midrange driver, a 75mm voice-coil neodymium magnet coaxial tweeter, and a 15-inch woofe with 100mm voice-coil in a high-quality plywood cabinet with baking paint.
Generates high power, high efficiency, clear and delicate treble, penetrating and full midrange, powerful low frequency.
Support vertical hanging / horizontal hanging / rear support stand or bottom support stand and other installation methods.
Frequency Response：40Hz-20KHz
Sensitivity：102dB/M/W
Maximum SPL：132dB continuous,138dB peak
Rated Power：1200W AES,4800W Peak
LF Drivers: 1×15＂(385mm)/4＂voice coil
MF Drivers: 1×12＂(300mm)/3＂voice coil Coaxial
HF Drivers: 1×1.5＂(38mm)/3＂voice coil Neo
Coverage：90°×90°
Nominal Impedance：8 ohm
Connectors：2×Speakon Nl4
Net Weight:45.5kg
Dimensions(WxDxH):450×532×780mm
