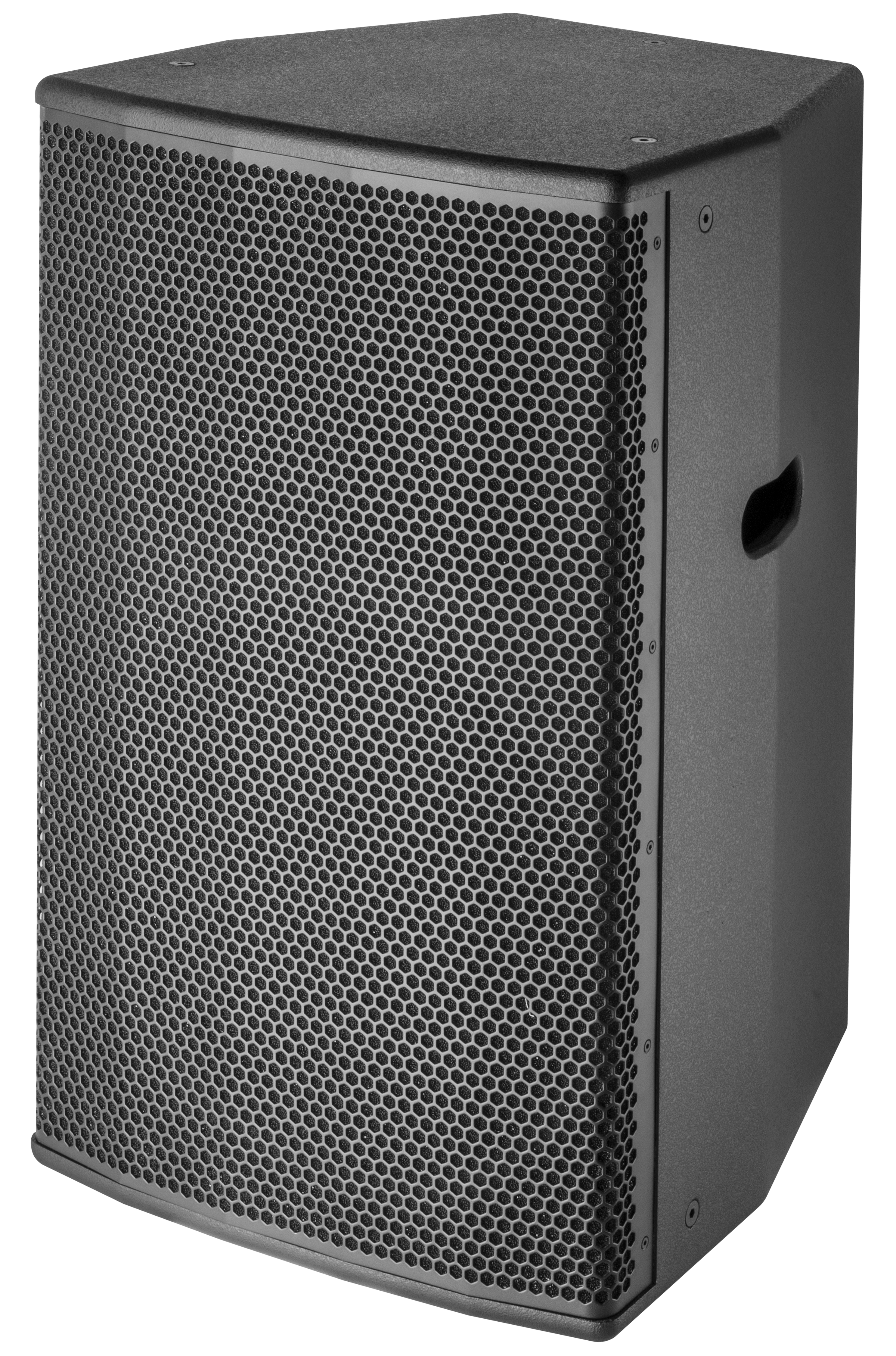

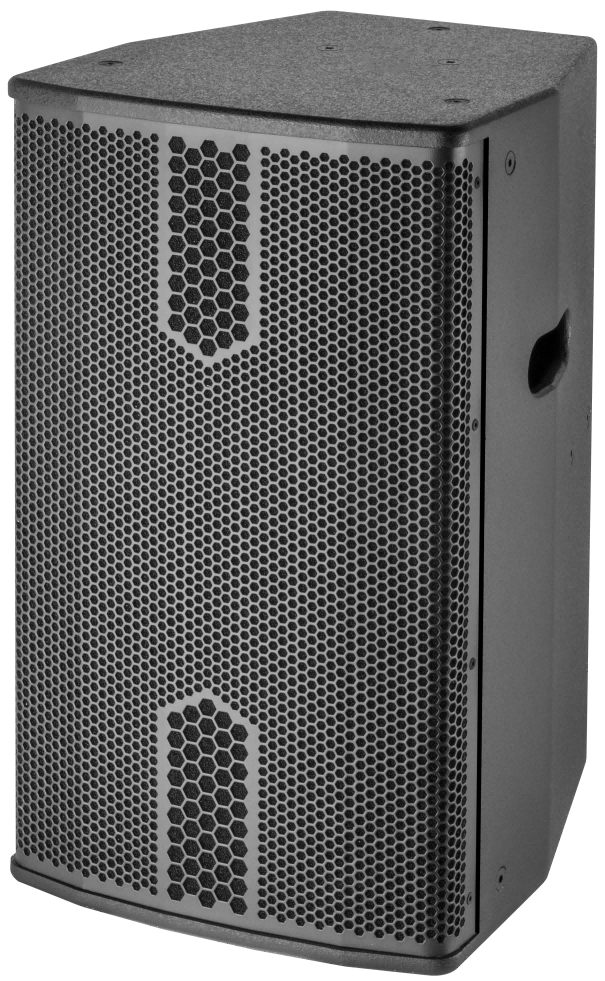

MF115A Active (Dante) Full Range Speaker
15" Two-way Active Loudspeaker with DSP
MF115A is a 15-inch Active two-way full-range professional speaker.
Composed of a 44mm voice-coil tweeter and a 15-inch woofer in a high-quality plywood cabinet with baked paint.
Generates high power, high efficiency, clear and delicate treble, penetrating and full midrange, and powerful low frequency.
Support vertical hanging / horizontal hanging / rear support stand or bottom support stand, and other installation methods.
Frequency Response：45Hz-20KHz
Sensitivity：99dB/M/W
Maximum SPL：127dB continuous,133dB peak
Rated Power：450W AES,1800W Peak
LF Drivers: 1×15＂(385mm)/3＂voice coil
HF Drivers: 1×1＂(25mm)/1.75＂voice coil
Coverage：90°×60°
Nominal Impedance：8 ohm
Connectors：2×Speakon NL4
Net Weight: 33.7kg
Dimensions(WxDxH):425×470 ×718mm
Amplifier:
Amplifier curcuit: class D.
Amplifier rated power AES : 900W.
DSP : 96kHz signal sampling frequency, 24-bit quantization precision
Preset program: DSP control preset program;
Amplifier frequency response (1W8Ω mono) : 20Hz-20kHz (±0.5dB).
Intermodulation distortion : <0.05%.
Total harmonic distortion: <0.05%.

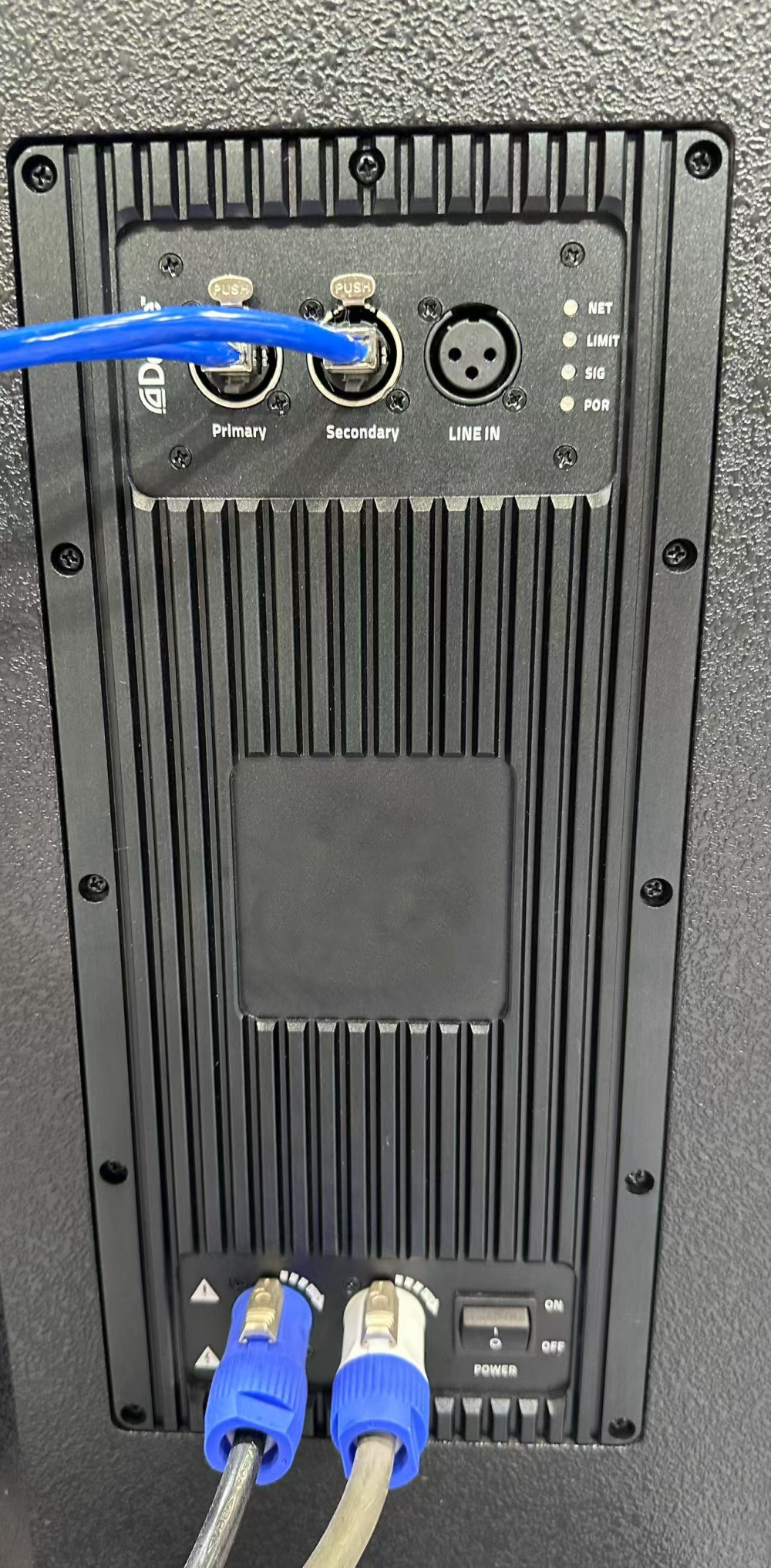

Input mode: analog audio, with one XLR input connector and one XLR output connector;
Cooling method: fan cooling + natural cooling;
Operating temperature: -20℃-80℃.
Power supply range: AC100V--240V 50/60 Hz.
