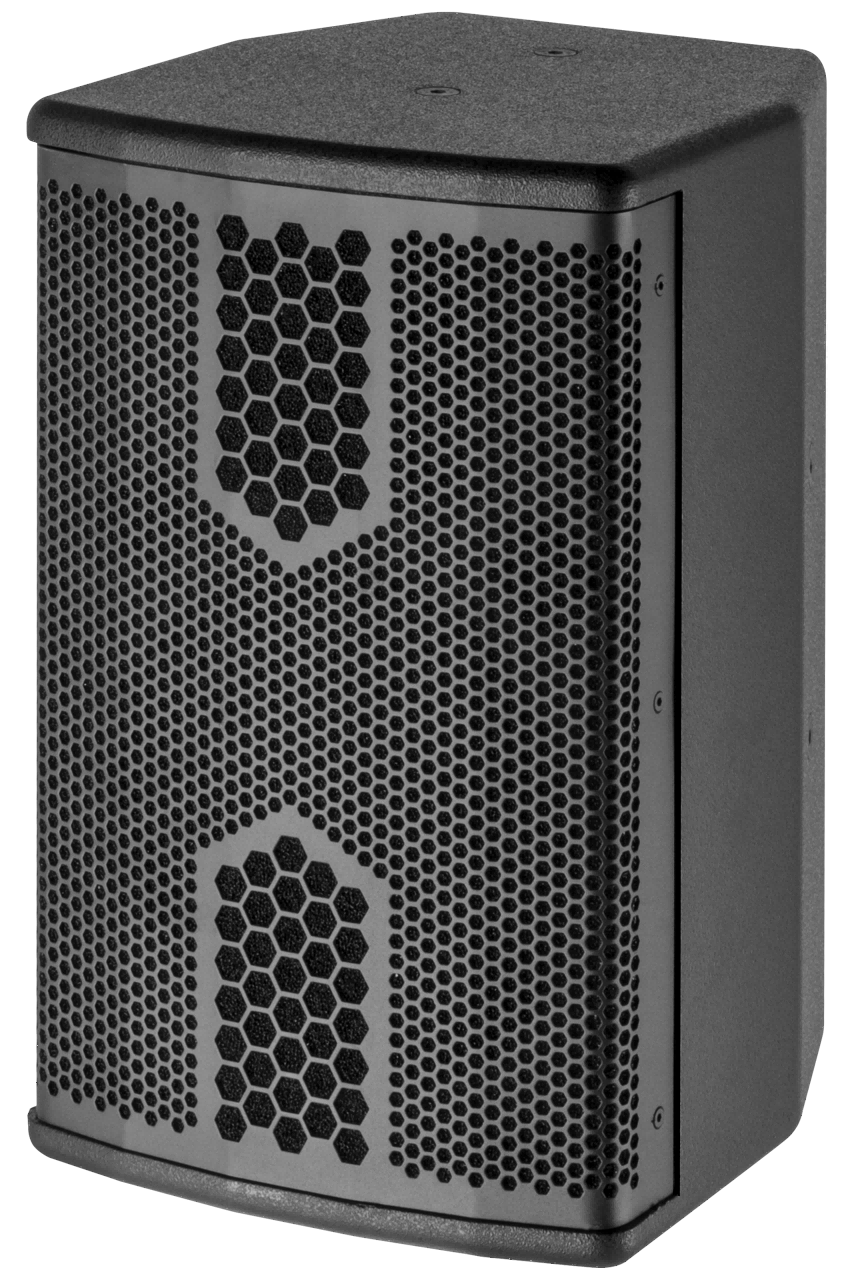

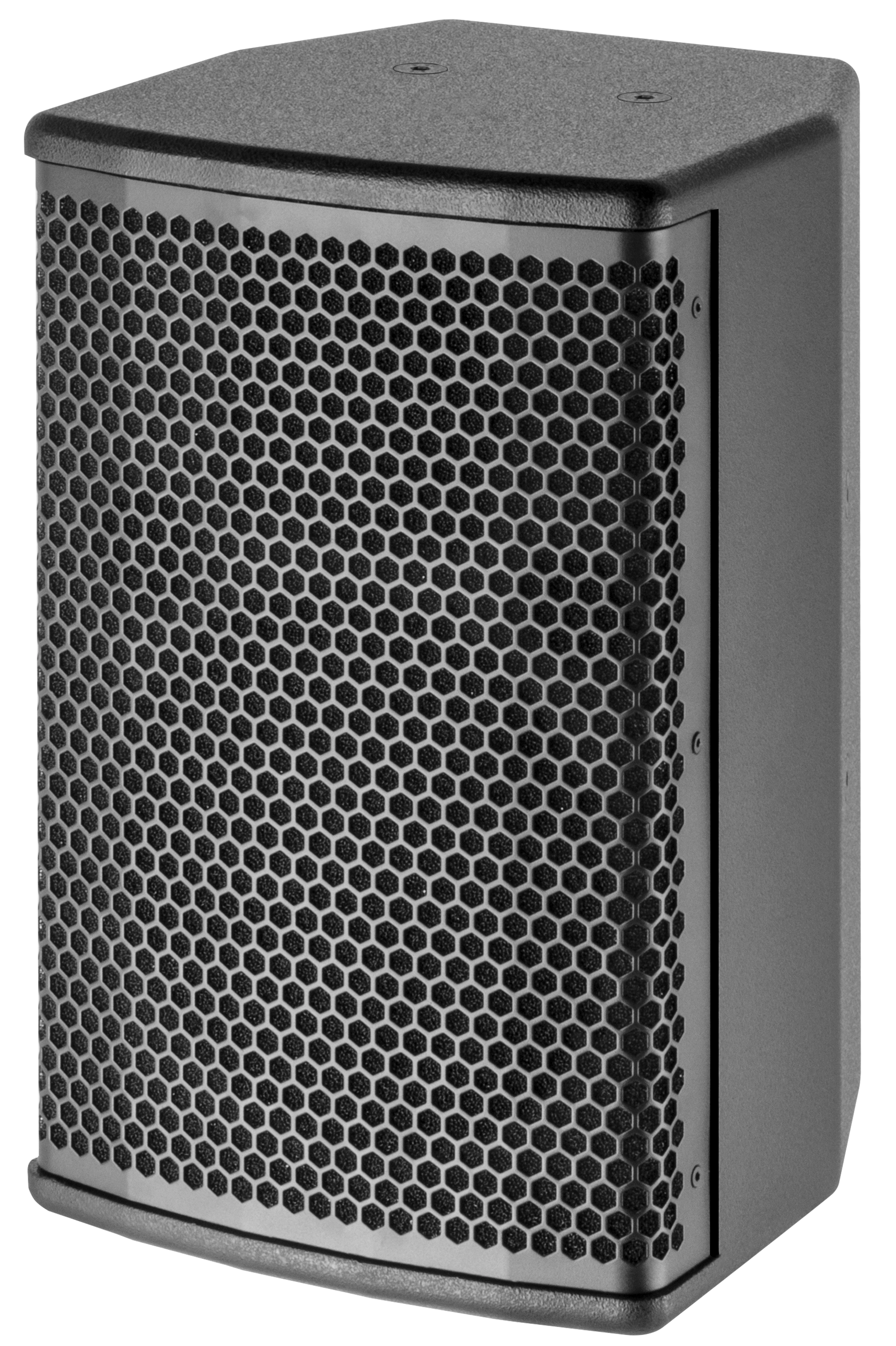

MF108A Active (Dante) Full Range Speaker
8" Two-way Active Loudspeaker with DSP
MF108A is a 8-inch active two-way full-range professional speakers.
Composed of a 25mm voice-coil tweeter,and a 8-inch woofer in a high-quality plywood cabinet with baking paint.
Generates high power, high efficiency, clear and delicate treble ,penetrating and full midrange, powerful low frequency.
Support vertical hanging / horizontal hanging / rear support stand or bottom support stand and other installation methods.。
Frequency Response：60Hz-20KHz
Sensitivity：95dB/M/W
Maximum SPL：118dB continuous,124dB peak
Rated Power：180W AES,720W Peak
LF Drivers: 1×8＂(200mm)/1.4＂voice coil
HF Drivers: 1×1＂(25mm)/1＂voice coil
Coverage：90°×60°
Nominal Impedance：8 ohm
Connectors：2×Speakon NL4
Net Weight: 10.5kg
Dimensions(WxDxH):245×260 ×380mm
Amplifier:
Amplifier curcuit: class D.
Amplifier rated power AES : 350W.
DSP : 96kHz signal sampling frequency, 24-bit quantization precision
Preset program: DSP control preset program;
Amplifier frequency response (1W8Ω mono) : 20Hz-20kHz (±0.5dB).
Intermodulation distortion : <0.05%.
Total harmonic distortion: <0.05%.
Input mode: analog audio, with one XLR input connector and one XLR output connector;
Cooling method: fan cooling + natural cooling;
Operating temperature: -20℃-80℃.
Power supply range: AC100V--240V 50/60 Hz.
System protection settings: DC protection / short circuit protection / overheating protection / overload protection / soft start protection / overvoltage protection / undervoltage protection.
