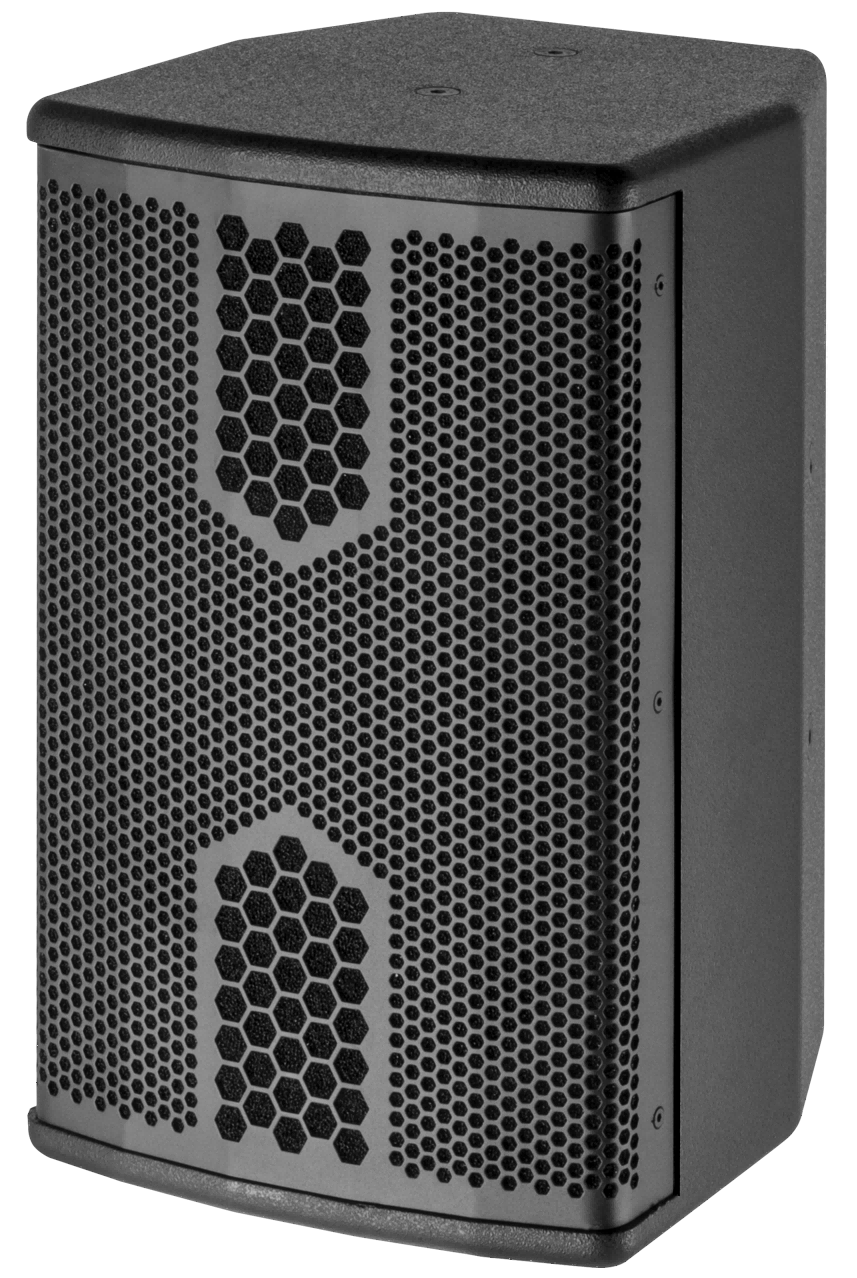

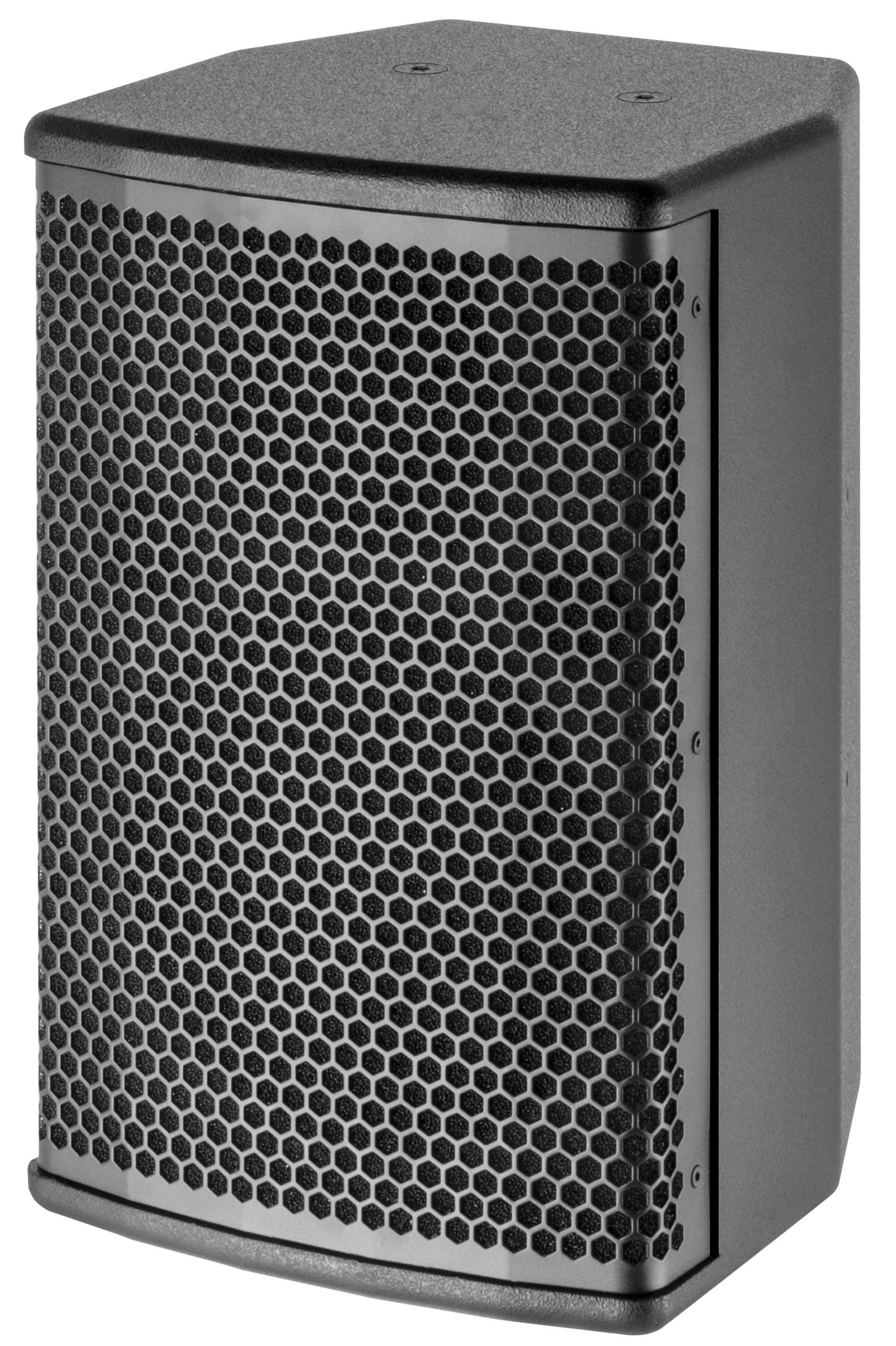

MF106A Active (Dante) Full Range Speaker
6" Two-way Active Loudspeaker with DSP
MF106A is a 6.5-inch two-way active full-range professional speaker.
Composed of a 25mm voice-coil tweeter and a 6.5-inch woofer in a high-quality plywood cabinet with baked paint.
Generates high power, high efficiency, clear and delicate treble, penetrating and full midrange, and powerful low frequency.
Support vertical hanging / horizontal hanging / rear support stand, or bottom support stand, and other installation methods.
Frequency Response：75Hz-20KHz
Sensitivity：95dB/M/W
Maximum SPL：115dB continuous,121dB peak
Rated Power：180W AES, 720W Peak
LF Drivers: 1×6.5＂(165mm)/1.4＂voice coil
HF Drivers: 1×1＂(25mm)/1＂voice coil
Coverage：90°×60°
Nominal Impedance：8 ohm
Connectors：2×Speakon NL4
Dimensions(WxDxH):215×230 ×350mm
Amplifier:
Amplifier curcuit: class D.
Amplifier rated power AES : 250W.
DSP : 96kHz signal sampling frequency, 24-bit quantization precision
Preset program: DSP control preset program;
Amplifier frequency response (1W8Ω mono) : 20Hz-20kHz (±0.5dB).
Intermodulation distortion : <0.05%.
Total harmonic distortion: <0.05%.

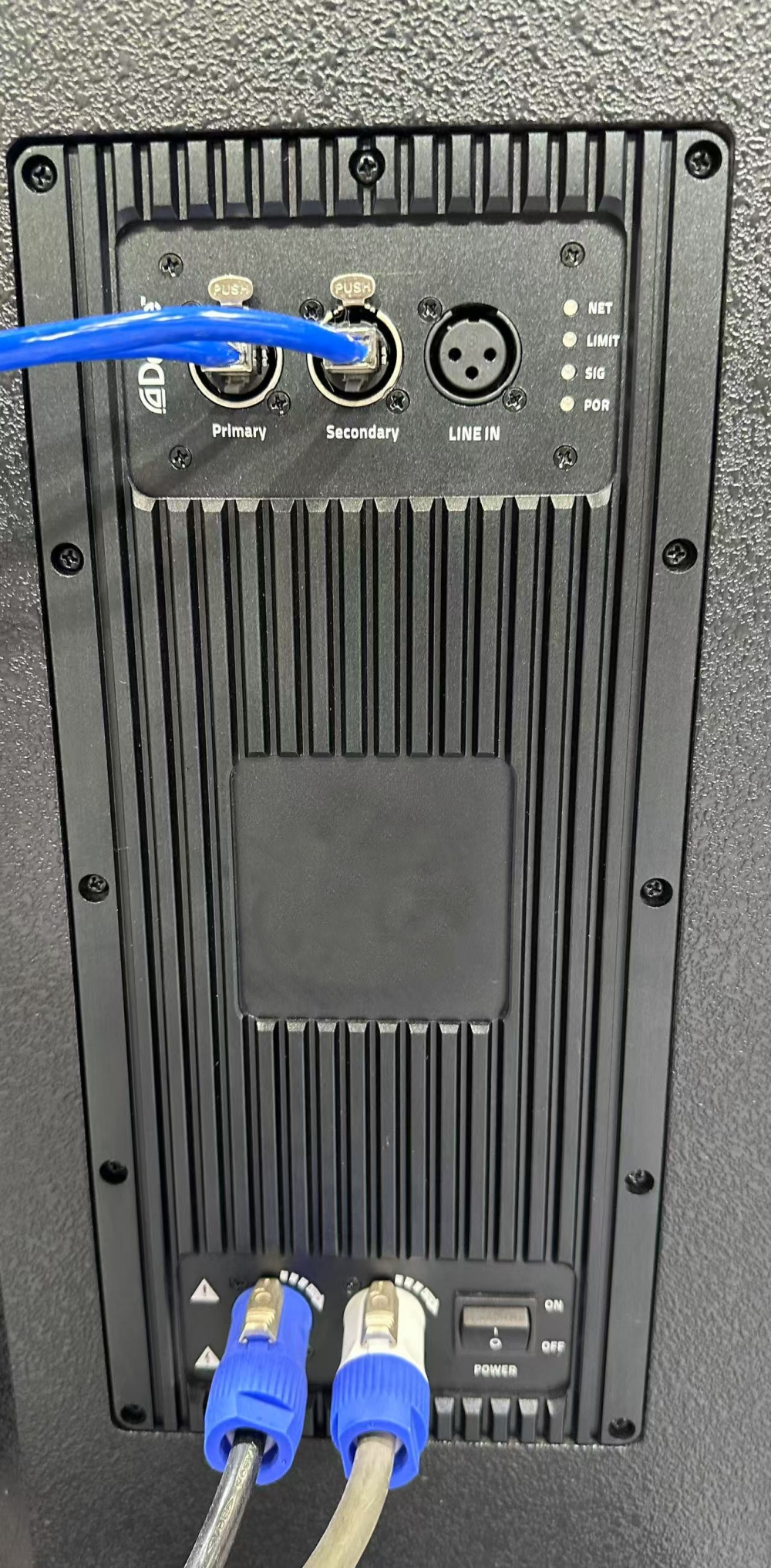

Input mode: analog audio, with one XLR input connector and one XLR output connector;
Cooling method: fan cooling + natural cooling;
Operating temperature: -20℃-80℃.
Power supply range: AC100V--240V 50/60 Hz.
System protection settings: DC protection / short circuit protection / overheating protection / overload protection / soft start protection / overvoltage protection / undervoltage protection.
