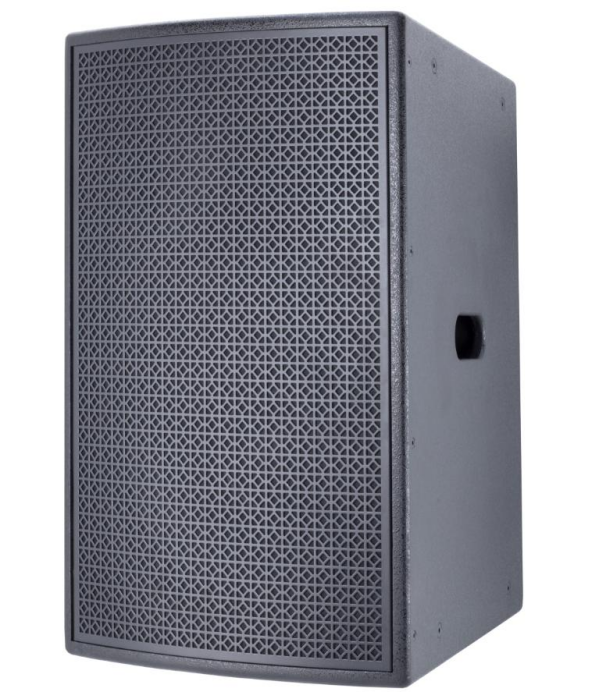

LX15 Series Full Range Speaker for Mid-Large Bar or KTV
15" Three-Way Full Range Speaker
LX15 is a 15-inch three-way full-range professional speaker.
Composed of a 2-inch midrange coaxial driver,a 44mm voice-coil neodymium magnet tweeter,anda15-inchwooferwith100mmvoice-coil
in a high-quality plywood cabinet with baking paint.
Generates high power, high efficiency, clear and delicate treble ,penetrating and full midrange, powerful low frequency.
Support vertical hanging / horizontal hanging / rear support stand or bottom support stand and other installation methods.
Frequency Response：40Hz-20KHz
Sensitivity：102dB/M/W
Maximum SPL：132dB continuous,138dB peak
Rated Power：1200W AES,4800W Peak
LF Drivers: 1×15＂(385mm)/4＂voice coil
MF Drivers: 1×2＂(50mm)/3.6＂voice coil Coaxial (90mmVC)
HF Drivers:1×2＂(50mm)/1.75＂voice coil Neo
Coverage：90°×90°
Nominal Impedance：8 ohm
Connectors：2×Speakon Nl4
Net Weight:45.5kg
Dimensions(WxDxH):450×532×780mm
