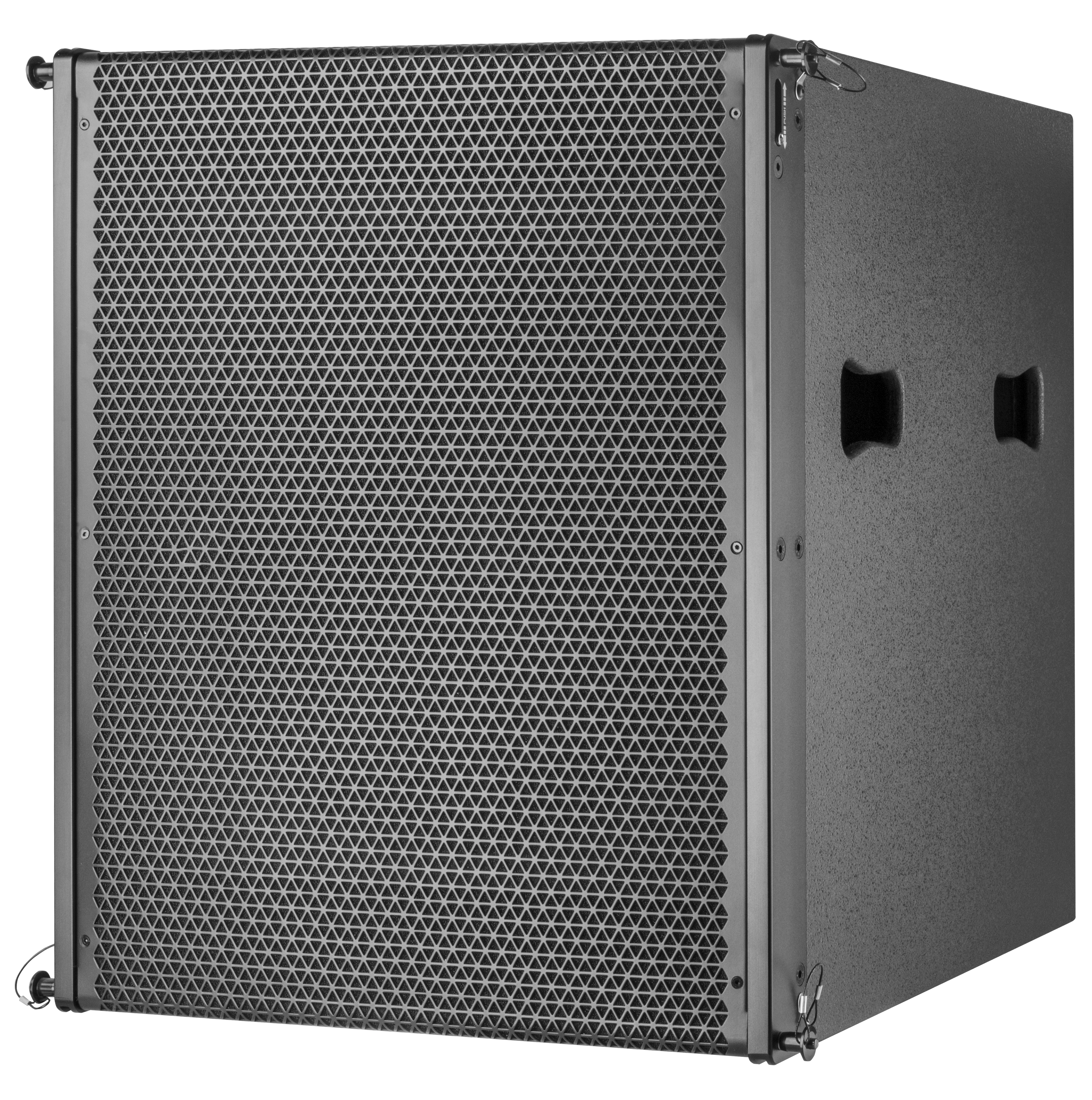

LASUB18SA Line Array Subwoofer
Single 18＂Active DSP-Controlled Subwoofer
1pc LASUB18S provide power to 2pcs LAS10 or LAS10pro
LASUB18SA is a single 18-inch line array subwoofer. Combined with single 10-inch line array speakers, it can be applied in hanging or stacked on the ground.
It has high sound pressure level output and high fidelity sound reinforcement performance, which forms a large adjustable full frequency response range. The subwoofer is suitable for the performance hall and mobile events that requires high definition.
Frequency Response : 40Hz-300Hz
Sensitivity(1W@1m) : 98dB
Nominal Impedance: 8Ω
Rated Power: 800W AES,3200Wpeak
LF Components: 1×18＂(460mm)/4＂voice coil
Maximum SPL: 127dB continuous,133dB peak

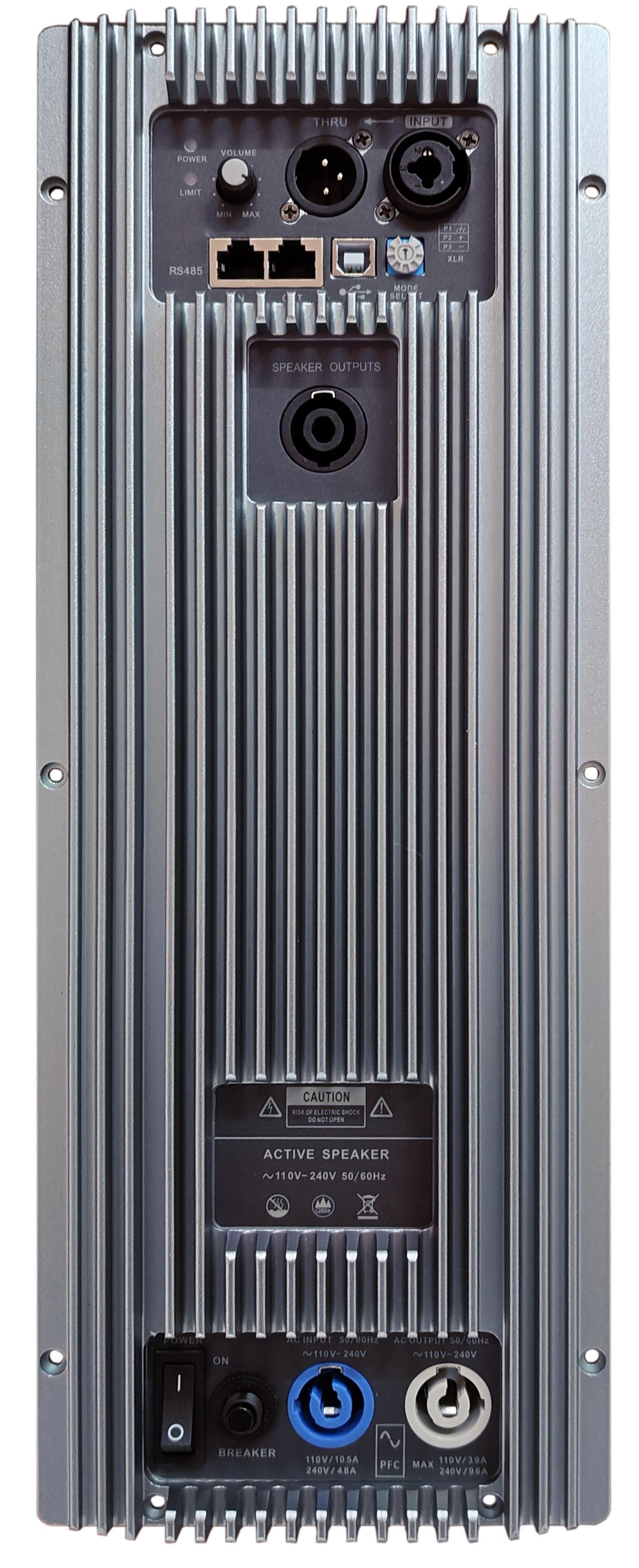

Amplifier Circuity: Class D
Amplfier Power: 1600W+1600W+800W
Protection: DC protection, short circuit protection, overheat protection, input/output overload protection, soft startup protection, overvoltage protection, undervoltage protection.
DSP Processor: 96KHz signal sampling frequency, 24 bit precision
Net Weight: 61kg
Dimensions（W×D×H): 570mm×674mm×713mm
