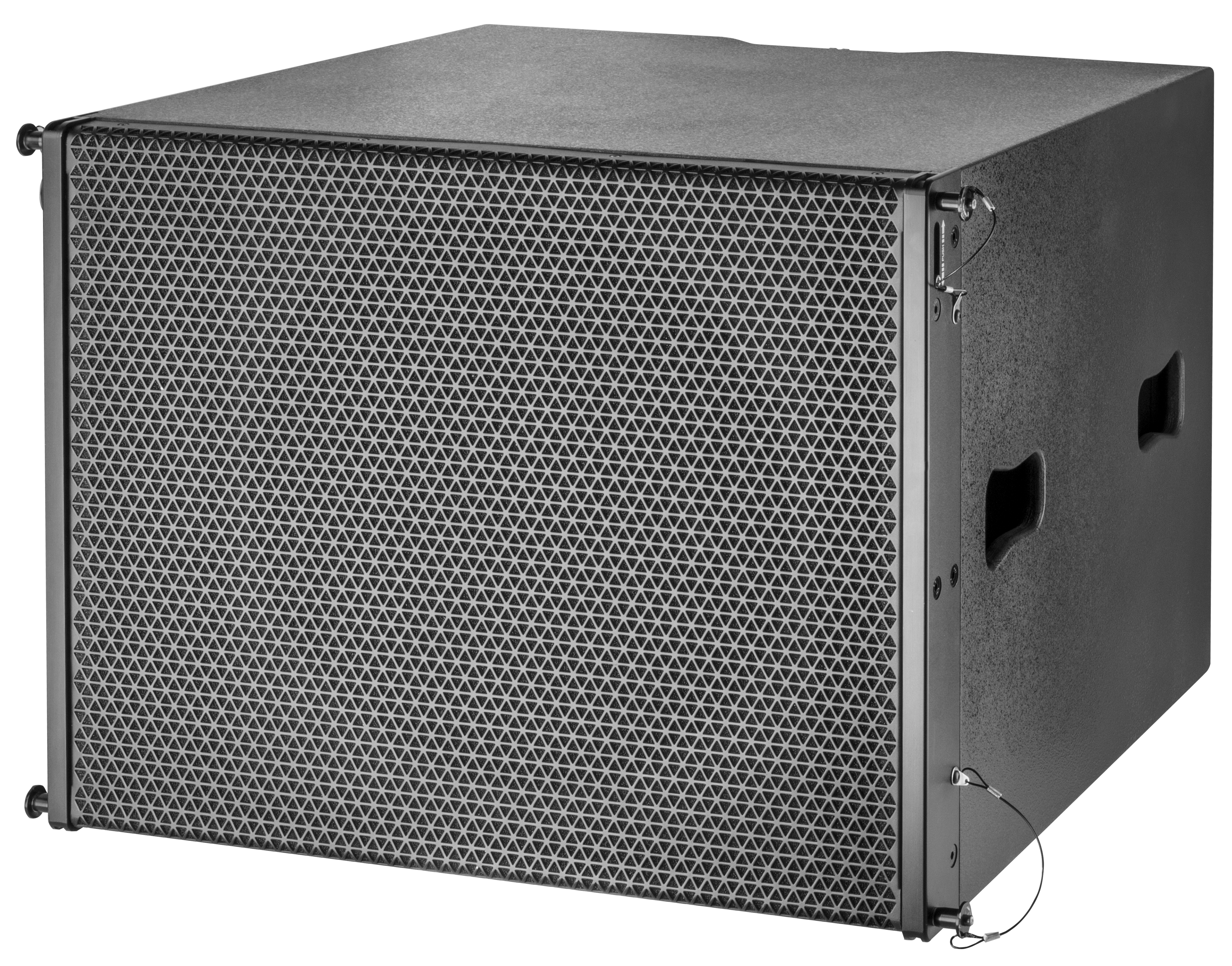

LASUB18BA Active (Dante) Line Array Subwoofer
Single 18＂ Active DSP-Controlled Subwoofer

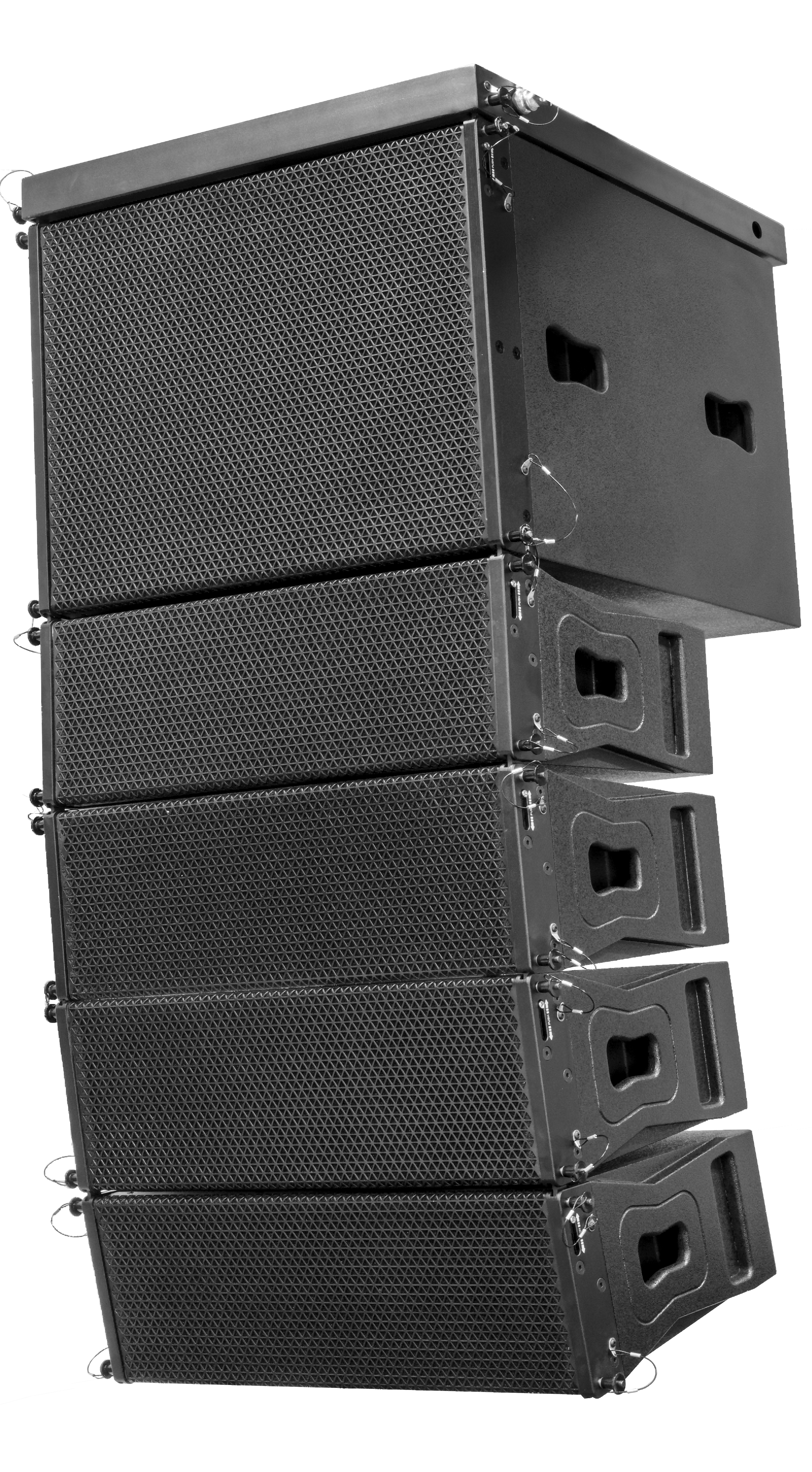

LASUB18BA is a single 18-inch active line array subwoofer. Combined with dual 10-inch line array speakers, it can be applied in hanging or stacked on the ground.
It has high sound pressure level output and high fidelity sound reinforcement performance, which forms a large adjustable full frequency response range. The subwoofer is suitable for the performance hall and mobile events that require high definition.
Frequency Response：40Hz-300Hz
Sensitivity(1W@1m): 98dB
Nominal Impedance: 8Ω
Rated Power: 800W AES,3200W Peak
LF Components: 1×18＂(460mm)/4＂voice coil
Maximum SPL: 127dB continuous,133dB peak

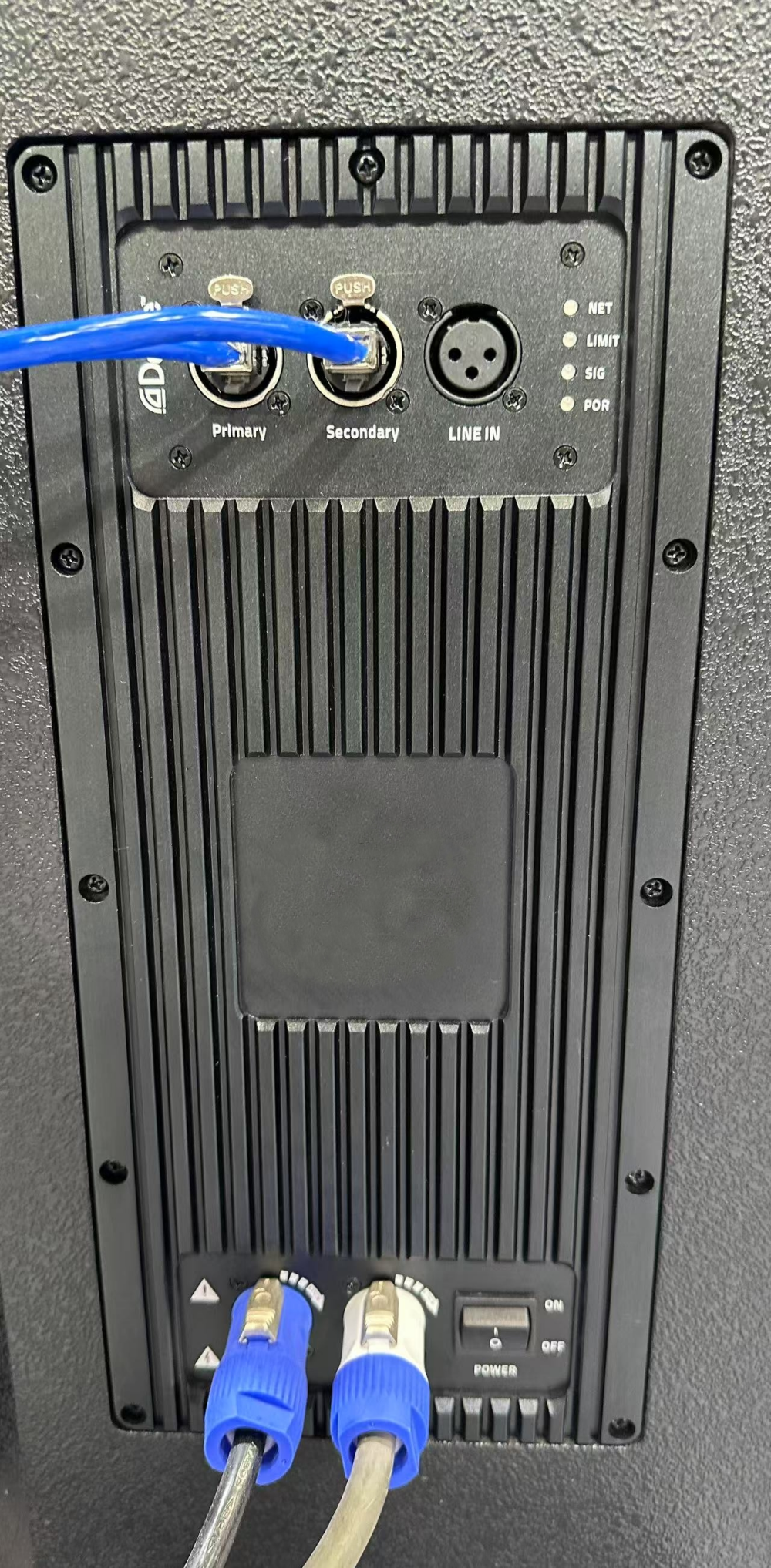

Connectors: 2×Speakon NL4
Net Weight: 63kg
Dimensions（W×D×H): 824mm×674mm×500mm
Amplifier:
Power: 1200W
Frequency Response: 20HZ~20KHZ/-1dB (1/8 output power)
Signal-to-noise ratio SNR: ≥ 92dB (A-weighted)
Input sensitivity/impedance: 1.2V/22KΩ
Damping factor: 500
Harmonic Distortion T.H.D: ≤0.05
Voltage range: ~90V-270V 50/60Hz PFC switching power supply power supply
Output circuit type: Class D
Protection function: overload protection, over-voltage protection, under-voltage protection, overheating protection, short circuit protection, DC protection, etc.
