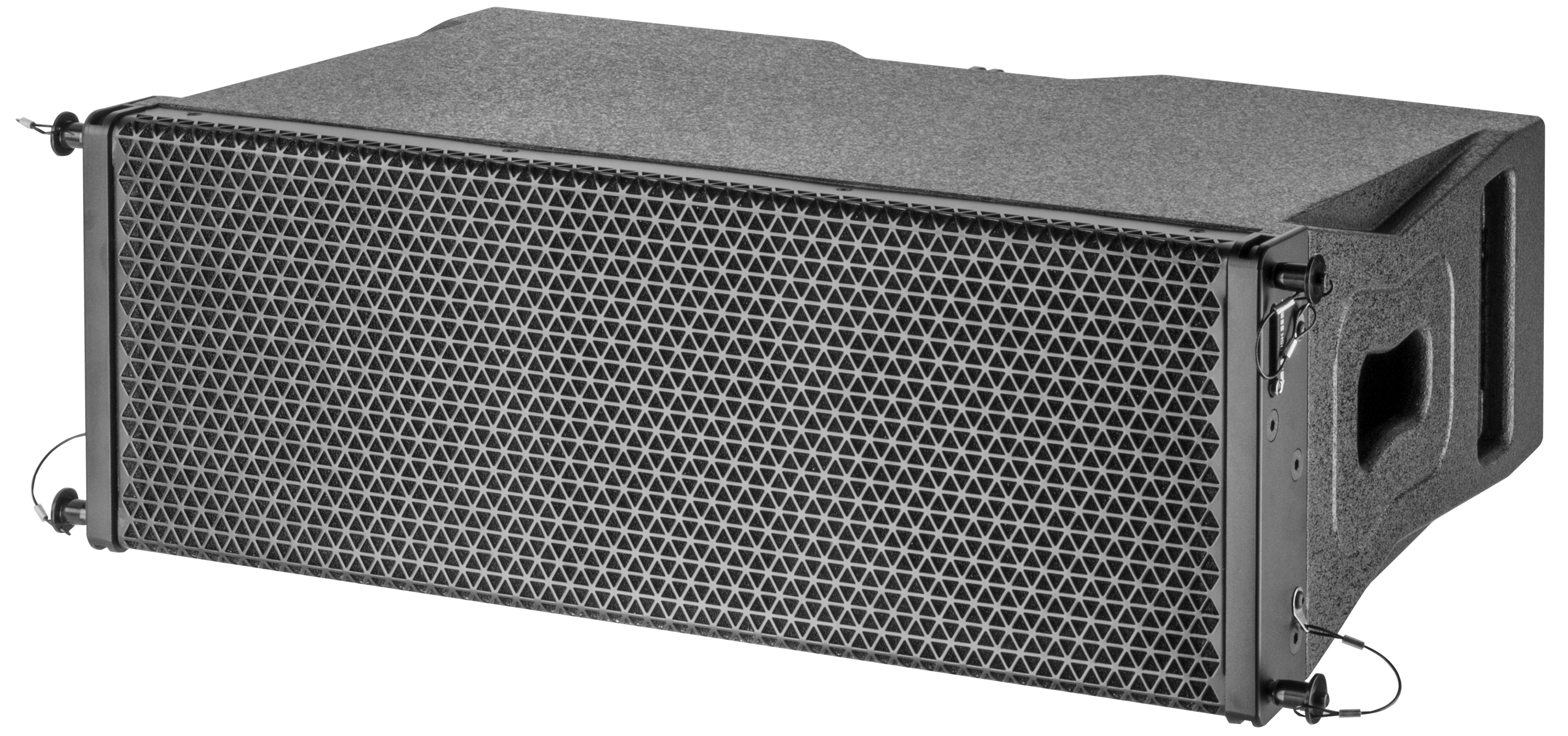

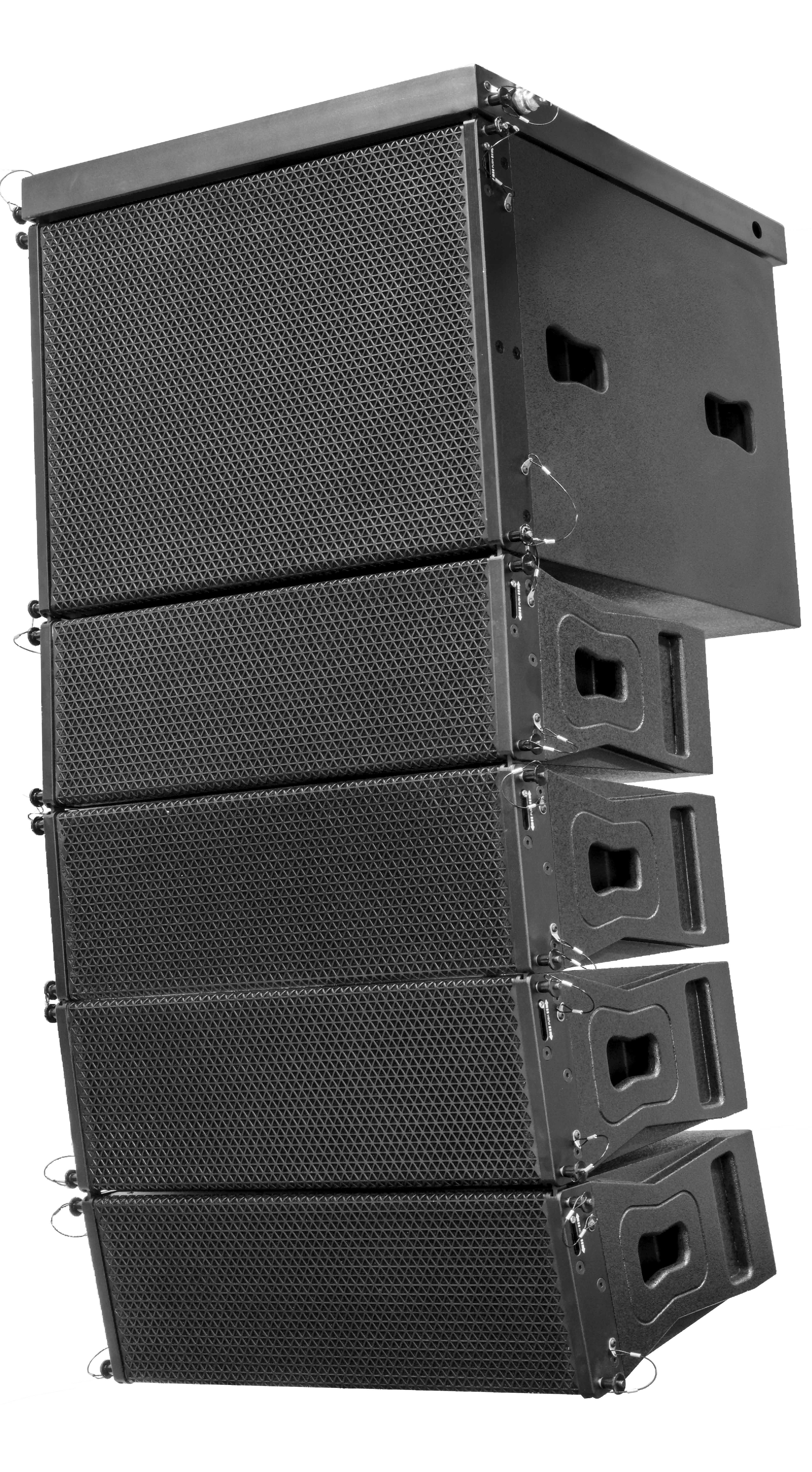

LAS312 Line Array Speaker
Dual 12"Three-way Passive Line Array Speaker
Dual 12-inch three-way large line array speakers, with two 51mm voice coil neodymium magnet tweeters, four 6.5-inch midrange units, two 12-inch woofers, the classic appearance of the design and the system of high precision tuning, high-frequency units as the core of the wavefront axis, the midrange and low-frequency range of moving units completely symmetrical structure design, forming a common symmetrical coupling wavefront, to achieve simple, accurate and symmetrical acoustic coverage, so that each listening point to get a number of quality sound and the same smooth frequency response. Listening point to get a number of quality sound and the same smooth frequency response, while ensuring a precise and coherent sound performance and strong dynamic impact, suitable for large fixed installation and large mobile sound reinforcement system.
Frequency Response: 5Hz-20KHz
Sensitivity(1W@1m): 105dB (passive mode )
HF 113dB MF 106dB LF 105dB (Bi-amp mode )
Nominal Impedance: 8Ω
Rated Power: HF 150W AES,600W peak (Bi-amp mode)
MF 320W AES,1280W peak (Bi-amp mode)
LF 900W AES,3600W peak (Bi-amp mode)
LF Components: 2×12"(300mm)/3" voice coil
MF Components: 4×6.5"(165mm)/2"voice coil
HF Components: 2×1.5"(38mm)/2"voice coil Neo
Coverage: 120°×15°
Maximum SPL: 134dB continuous,140dB peak
Connectors: 2×Speakon NL4
Net Weight: 71kg
Dimensions(W×D×H): 1150mm×520mm×382mm
