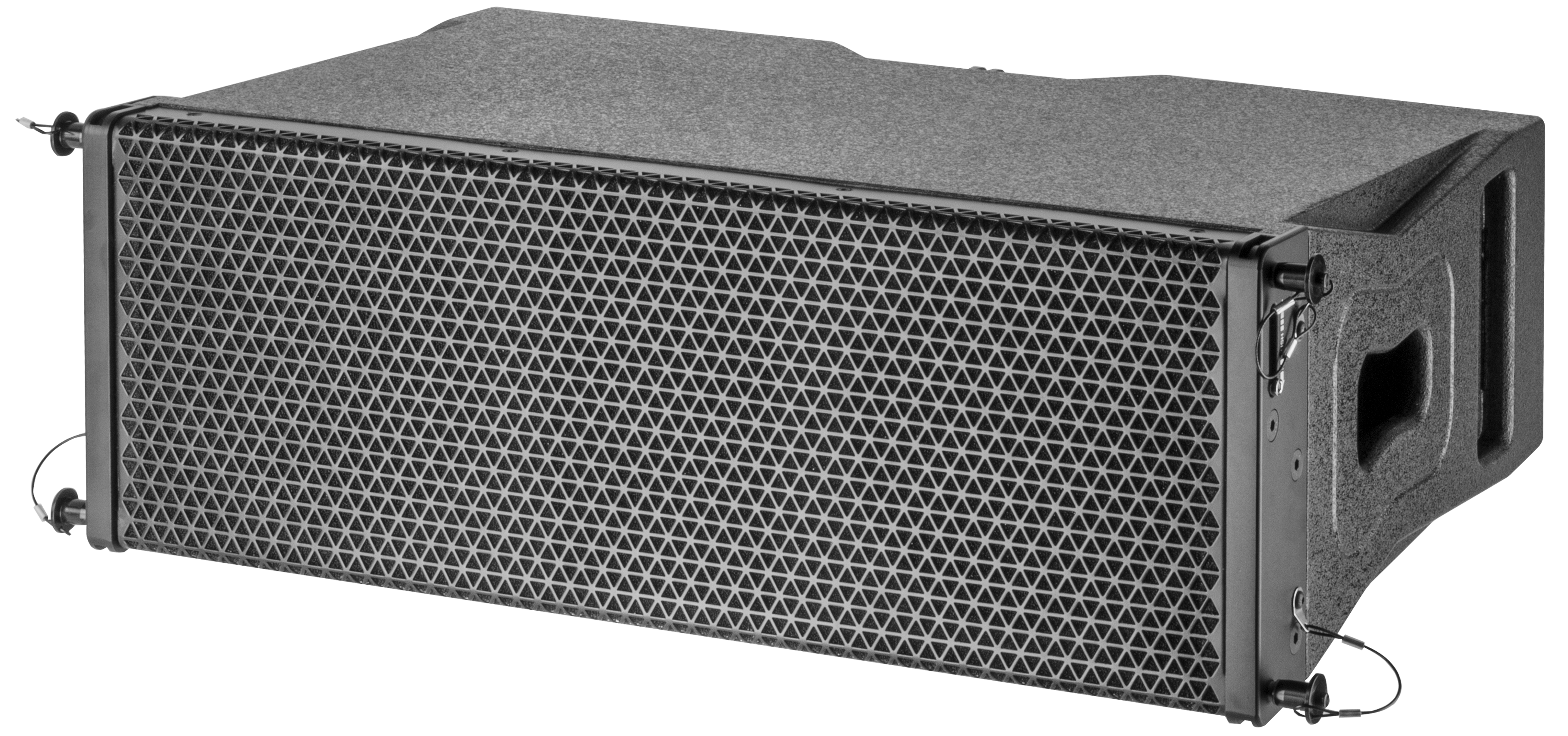

LAS310 Line Array Speaker

Dual 10"Three-way Passive Line Array Speaker

LAS310 is a dual 10-inch three-way high-performance line array speaker, with a classic compact design and systematic high-precision linear array unique style. It's widely used in high-performance line array sound reinforcement systems. It is composed of a mid-treble coaxial neodymium magnetic driver with a 44mm voice coil tweeter and an 88mm voice coil mid-range, configured with a precise linear acoustic wavefront surface treble horn, to achieve accurate and uniform acoustic coverage. With a carefully tuned crossover system, the distortion of the speaker is small when it works under the high-power. The coverage angle has a strong constant directivity and its sound is consistent, which is suitable for the requirements of high-definition performance halls and touring events.

Frequency Response 55Hz-20KHz

Sensitivity (1W@1m): 102dB (passive mode)

                   HF 115dB MF 115dB LF 104dB (Bi-amp mode )

Nominal Impedance: 8Ω

Rated Power: HF 100W AES, 400W peak (Bi-amp mode)

                   MF 200W AES, 800W peak (Bi-amp mode)

                   LF 600W AES, 2400W peak (Bi-amp mode)

LF Components: 2×10"(250mm)/2.5" voice coil

MF Components: 1×2"(50mm)/3.5" voice coil

HF Components: 1×2"(50mm)/1.75" voice coil

Coverage: 120°×15°(H×V)

Maximum SPL: 131dB continuous,137dB peak

Connectors: 2×Speakon NL4

Net Weight: 31.5kg

Dimensions (W×D×H): 824mm×468mm×289mm
