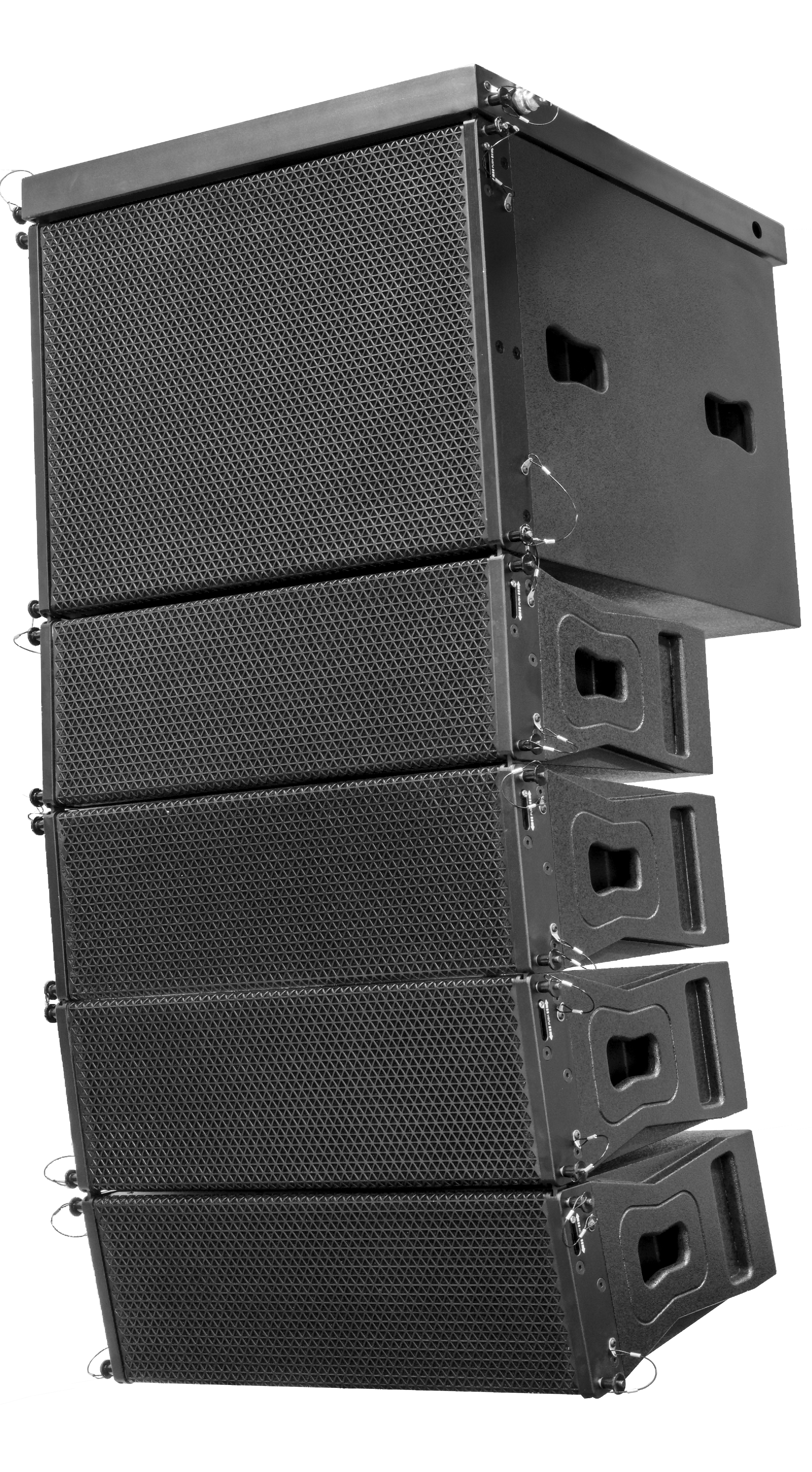

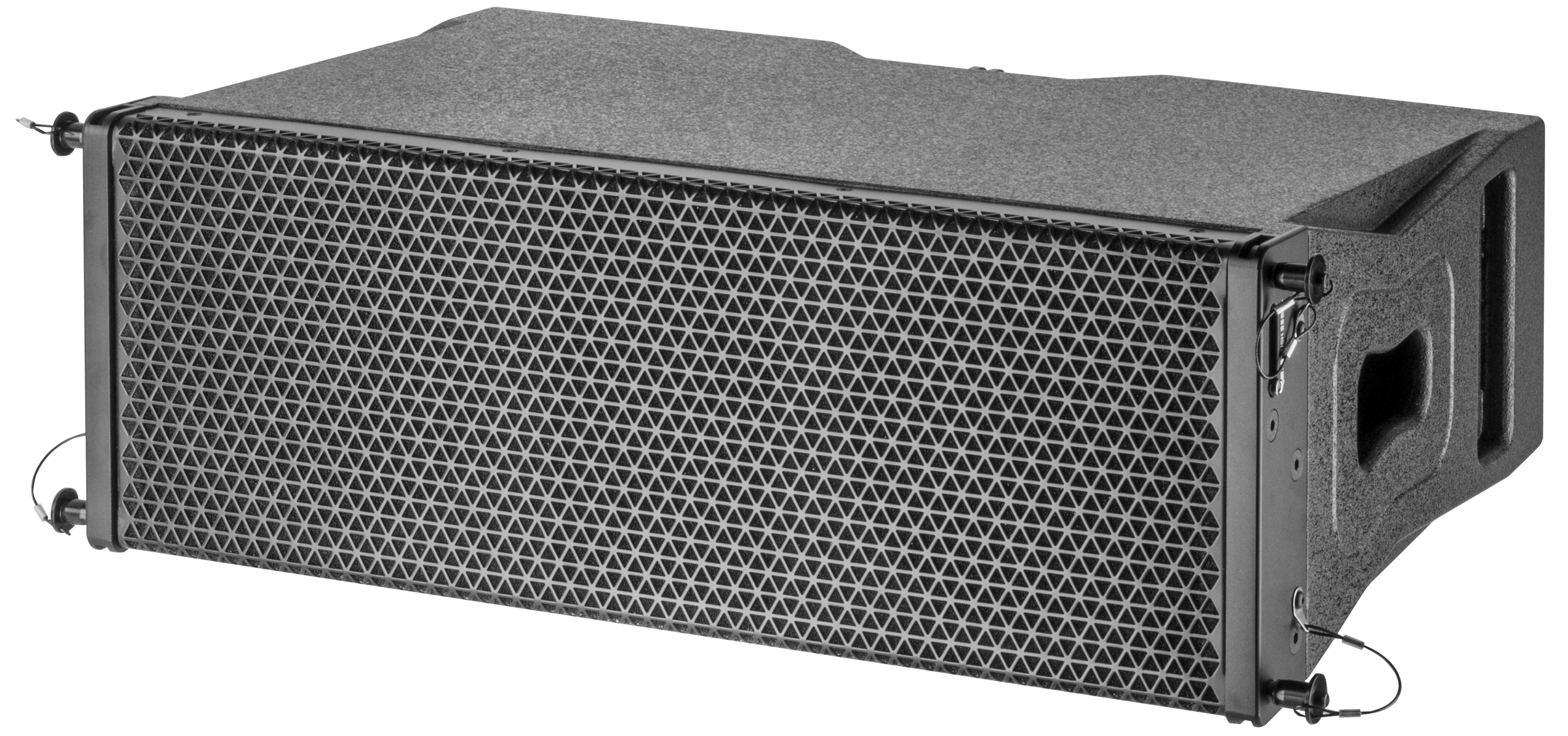

LAS3012 Line Array Speaker
Dual 12＂Three-way Passive Line Array Speaker
LAS3012 is a dual 12" three-way line array speaker with a classic design and systematic high-precision tuning. It is composed of two 2" neodymium magnet high-efficiency tweeters configured with precise linear acoustic wavefront surface tweeter horn, two 12" woofers, and a stable and accurate crossover, to achieve accurate and uniform acoustic coverage. Its distortion and power compression are further reduced in high-power mode, bringing higher performance and better sound quality. It is suitable for medium and large fixed installations and medium and large touring sound reinforcement systems.
Frequency Response: 45Hz-20KHz
Sensitivity (1W@1m): 104dB (passive mode)
HF 115dB MF 115dB LF 105dB (Bi-amp mode )
Nominal Impedance: 8Ω
Power rating: HF 100W AES, 400W peak (Bi-amp mode)
MF 200W AES, 800W peak (Bi-amp mode)
LF 900W AES, 3600W peak (Bi-amp mode)
Woofer: 2×12"(300mm)/3" voice coil
Midrange: 1×2"(50mm)/3.5" voice coil
Tweeter: 1×2"(50mm)/1.75 "voice coil Neo
Diffusion angle: 120°×15°
Maximum sound pressure level: 134dB continuous,140dB peak
Connection socket: 2×Speakon NL4
Net Weight: 49.3kg
Dimensions（W×D×H）: 939mm×520mm×338mm
