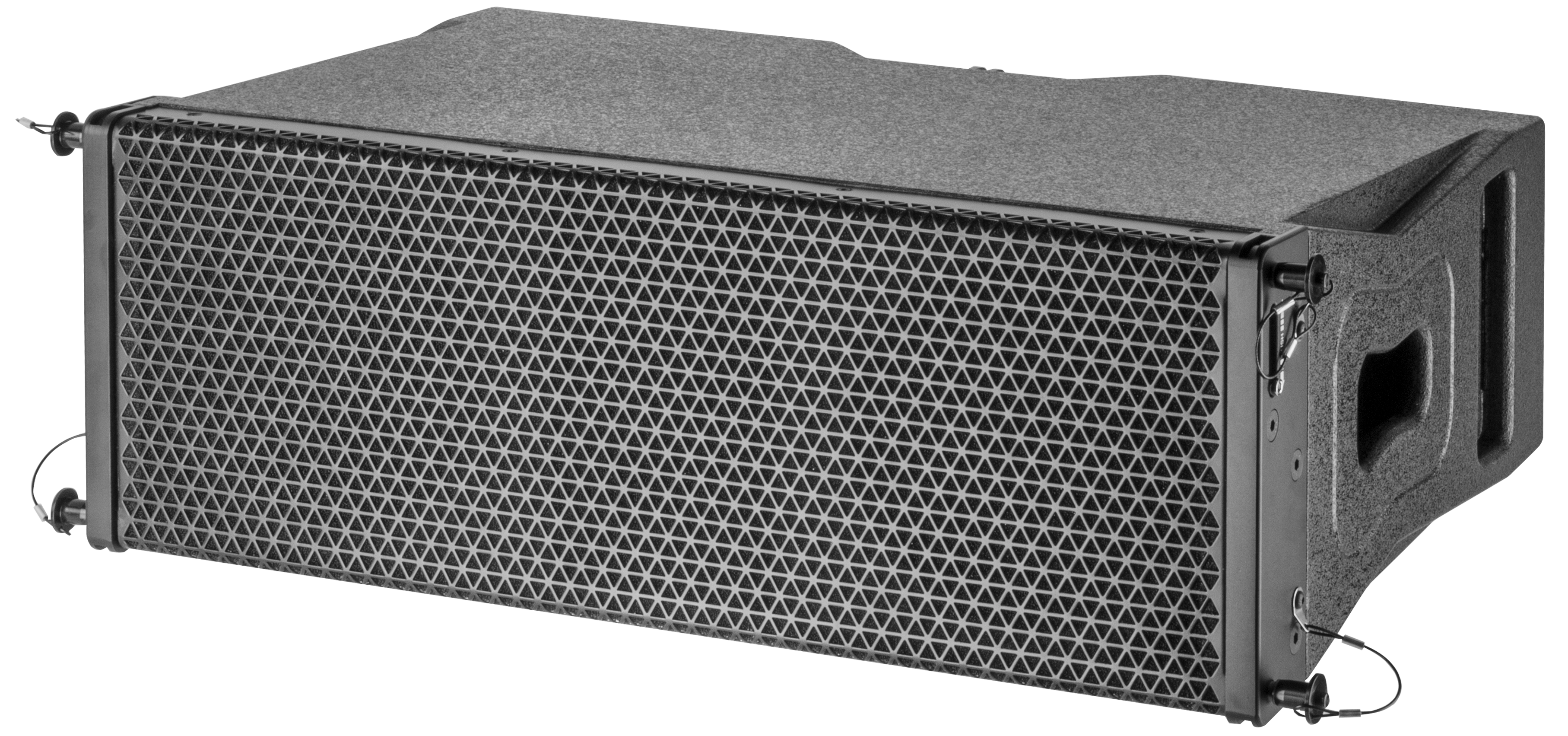

LAS212 Line Array Speaker

Dual 12"Two-way Passive Line Array Speaker

LAS212 is a dual 12-inch two-way high performance line array speaker, with classical compact design and systematic high-precision array unique style, which is widely used in different performance. It is composed with two 51mm voice coil  neodymium magnet tweeters, configured with accurate linear acoustic wavefront tweeter horn, to achieve accurate and uniform acoustic coverage. It also applies two 12-inch bass/midrange woofer which is developed for the mid and low range frequency in the line array system. The crossover well-turned. In high-power mode, the distortion and power compression is further reduced to bring higher performance and better sound quality. The speaker is suitable for the fixed installation and medium and big mobile events.

Frequency Response:45Hz-20KHz

Sensitivity(1W@1m): 104dB  (passive mode )

                   HF 113dB  LF 104dB  (Bi-amp mode)

Nominal Impedance: 8Ω

Rated Power: HF 150W AES,600W peak (Bi-amp mode)

             LF 900W AES,3600W peak (Bi-amp mode)

LF Components: 2×12"(300mm)/3" voice coil

HF Components: 2×1.5"(38mm)/2"voice coil Neo

Coverage: 120°×15°

Maximum SPL: 133dB continuous,139dB peak

Connectors: 2×Speakon NL4

Net Weight: 45kg
