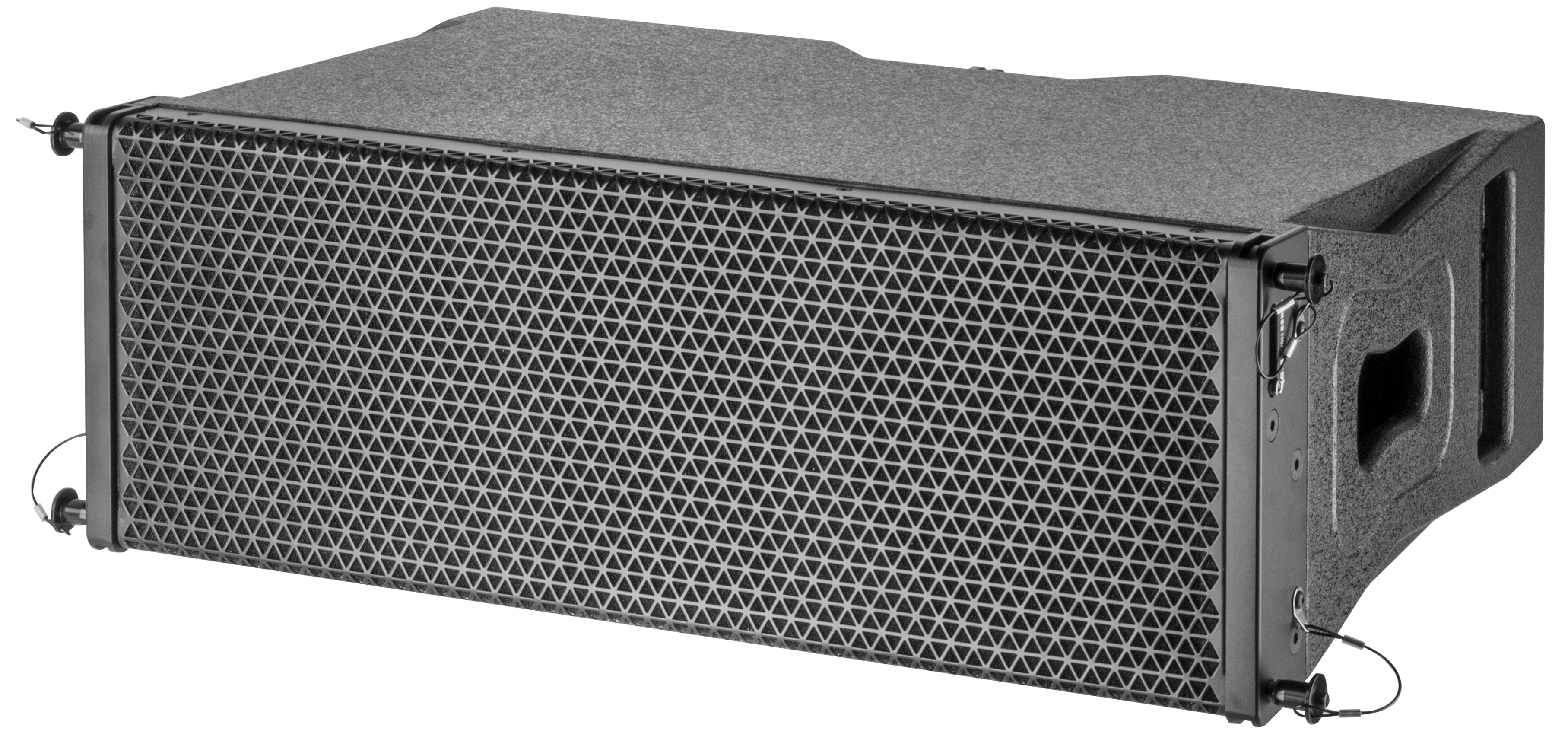

LAS210pro Line Array Speaker

Dual 10"Two-way Passive Line Array Speaker

LAS210pro is a dual 10-inch two-tweeter high efficiency line array speaker, with classical compact design and systematic high-precision array unique style, which is widely used in different performance. It is composed with two 1.75-inch neodymium magnet tweeter, integrated with accurate linear acoustic wavefront tweeter horn, to achieve accurate and uniform acoustic coverage. It also applies two10-inch bass/midrange woofer which is developed for the mid and low range frequency in the line array system. The crossover well-turned. It operates at high power with low distortion. the coverage angle has strong constant directivity and keep the consistency of sound in different angles.  The speaker is suitable for the performance hall and mobile events that requires high definition.

Frequency Response:          55Hz-20KHz

Sensitivity(1W@1m):100dB  (passive mode)

                  HF 114dB  LF 104dB  (Bi-amp mode )

Nominal Impedance: 8Ω

Rated Power: HF 120W AES,480W peak (Bi-amp mode)

                  LF 600W AES,2400W peak (Bi-amp mode)

LF Components: 2×10"(250mm)/2.5" voice coil

HF Components: 2×1"(25mm)/1.75"voice coil Neo

Coverage: 120°×15°(H×V)

Maximum SPL: 130dB continuous,136dB peak

Connectors: 2×Speakon NL4

Net Weight:  32kg

Dimensions(W×D×H): 824mm×468mm×289mm
