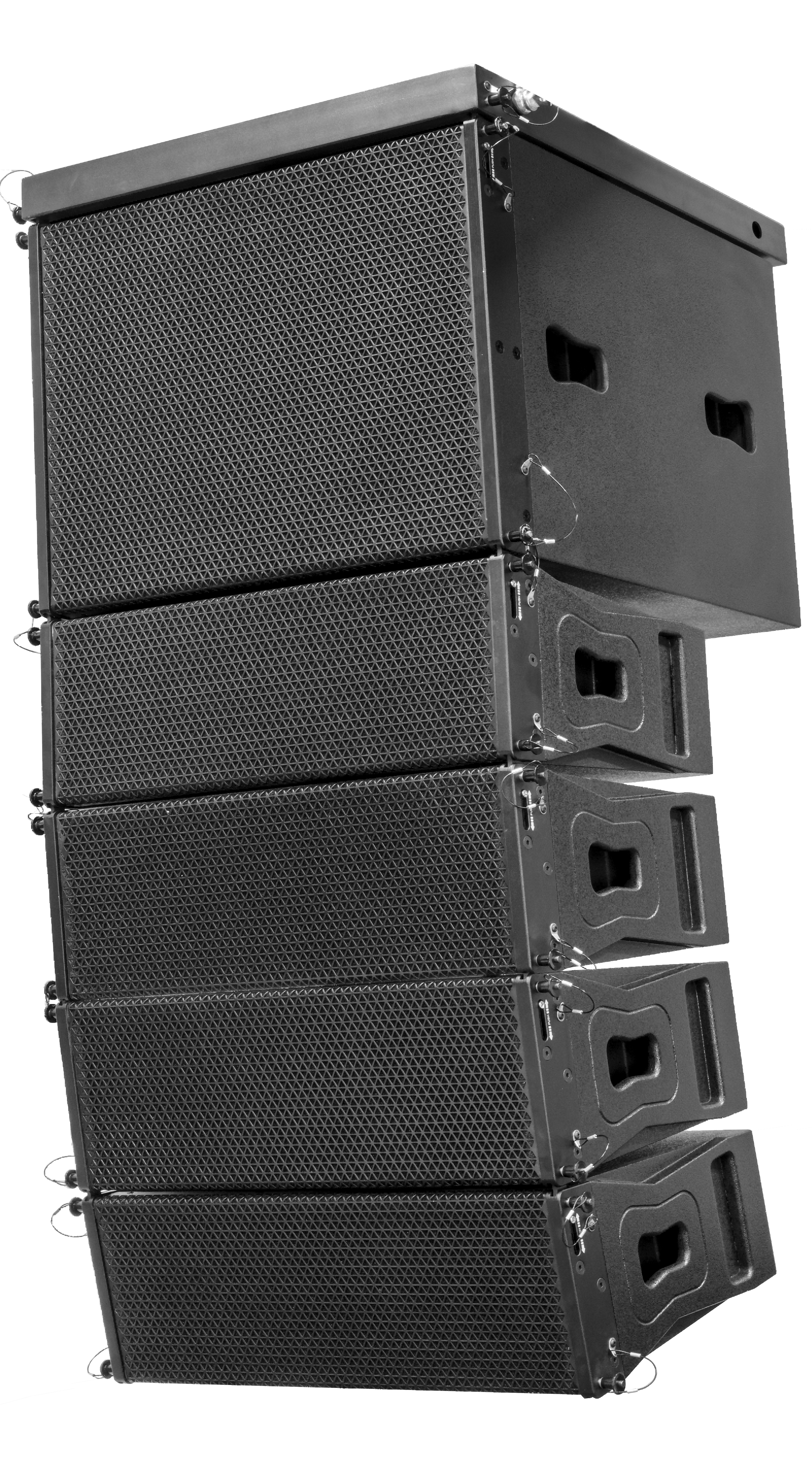

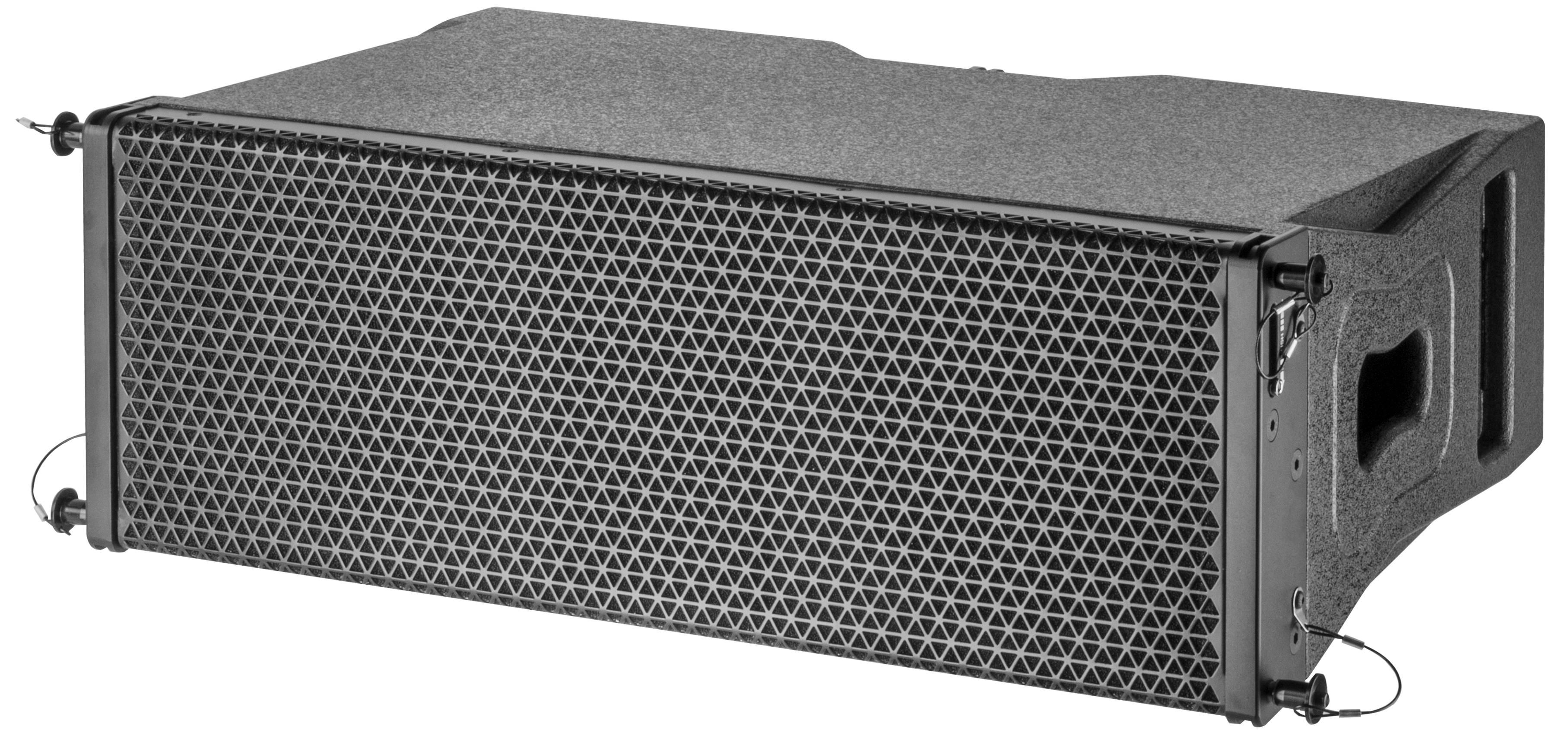

LAS206A Active (Dante) Line Array Speaker
Dual 6.5＂Two-way Active DSP-Controlled Line Array Speaker
LAS206A is an active dual 6.5-inch two-way high-performance line array speaker, with a classical compact design and a systematic high-precision array unique style, which is widely used in different performances. It is composed of a 1.7-inch tweeter, configured with an accurate linear acoustic wavefront tweeter horn, to achieve accurate and uniform acoustic coverage. It also applies two 6.5-inch bass/midrange woofers, which is developed for the mid and low range frequencies in the line array system. The crossover is well-turned. It operates at high power with low distortion. The coverage angle has strong constant directivity and maintains the consistency of sound at different angles. The speaker is suitable for the performance hall and mobile events that require high definition.
Frequency Response： 75Hz-20KHz
Sensitivity(1W@1m): 95dB (passive mode)
HF 108dB LF 96dB (Bi-amp mode )
Nominal Impedance: 8Ω
Rated Power: HF 50W AES，200W peak (Bi-amp mode)
LF 300W AES 1200W peak (Bi-amp mode)
LF Components: 2×6.5＂(165mm)/2.5＂voice coil
HF Components : 1×1＂(25mm)/1.75＂voice coil
Coverage : 120°×15°(H×V）
Maximum SPL:124dB continuous,130dB peak

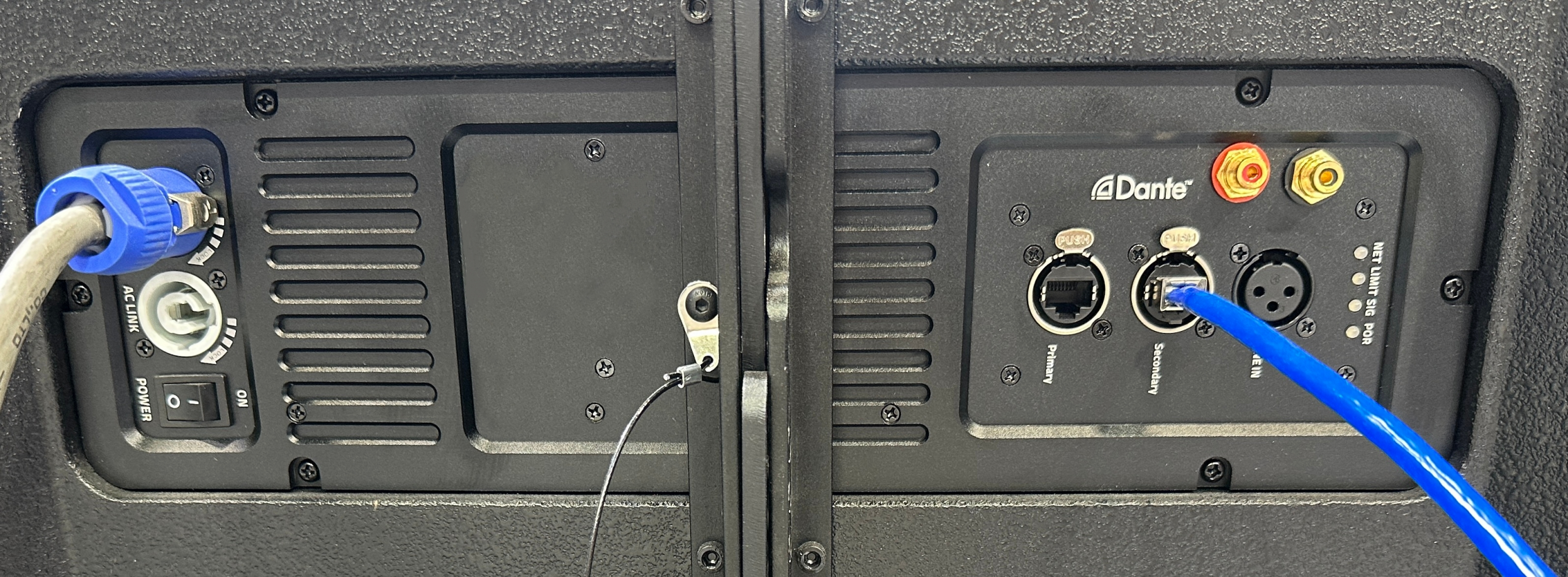

Connectors : 2×Speakon NL4
Net Weight: 17kg
Dimensions（W×D×H） 560mm×325mm×197mm
Amplifier:
Power: 800W
Frequency Response: 20HZ~20KHZ/-1dB (1/8 output power)
Signal-to-noise ratio SNR: ≥ 92dB (A-weighted)
Input sensitivity/impedance: 1.2V/22KΩ
Damping factor: 500
Harmonic Distortion T.H.D: ≤0.05
Voltage range: ~90V-270V 50/60Hz PFC switching power supply power supply
Output circuit type: Class D
Protection function: overload protection, over-voltage protection, under-voltage protection, overheating protection, short circuit protection, DC protection, etc.
