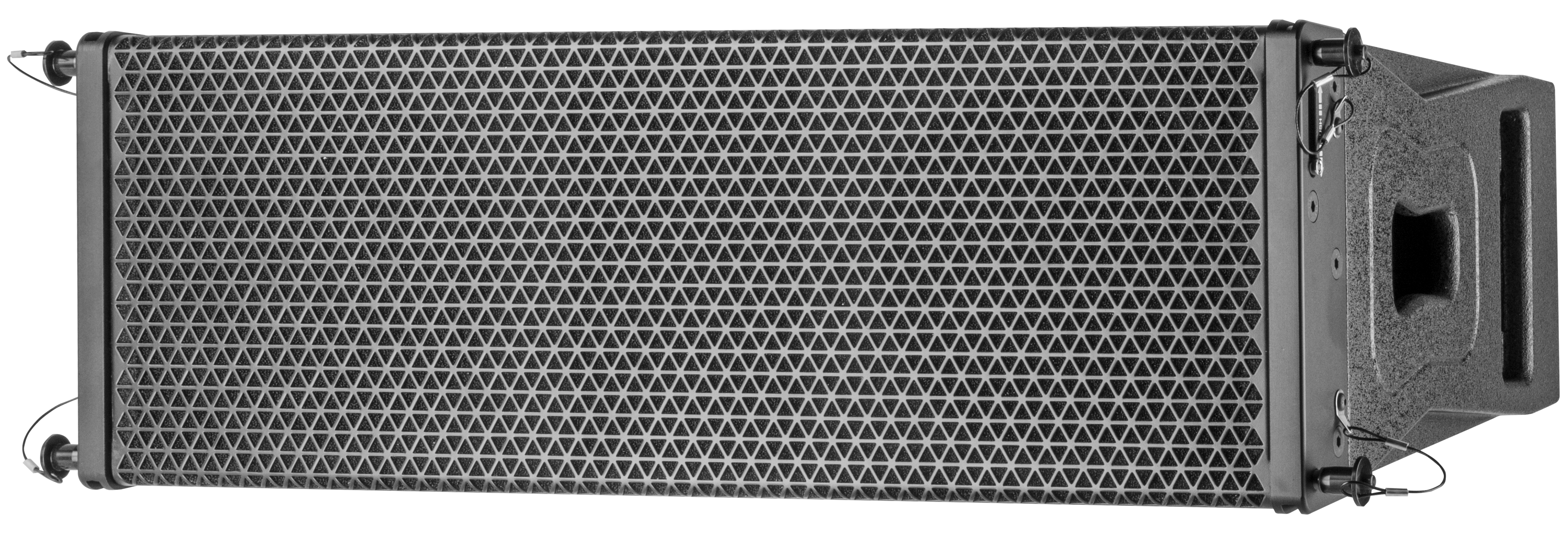

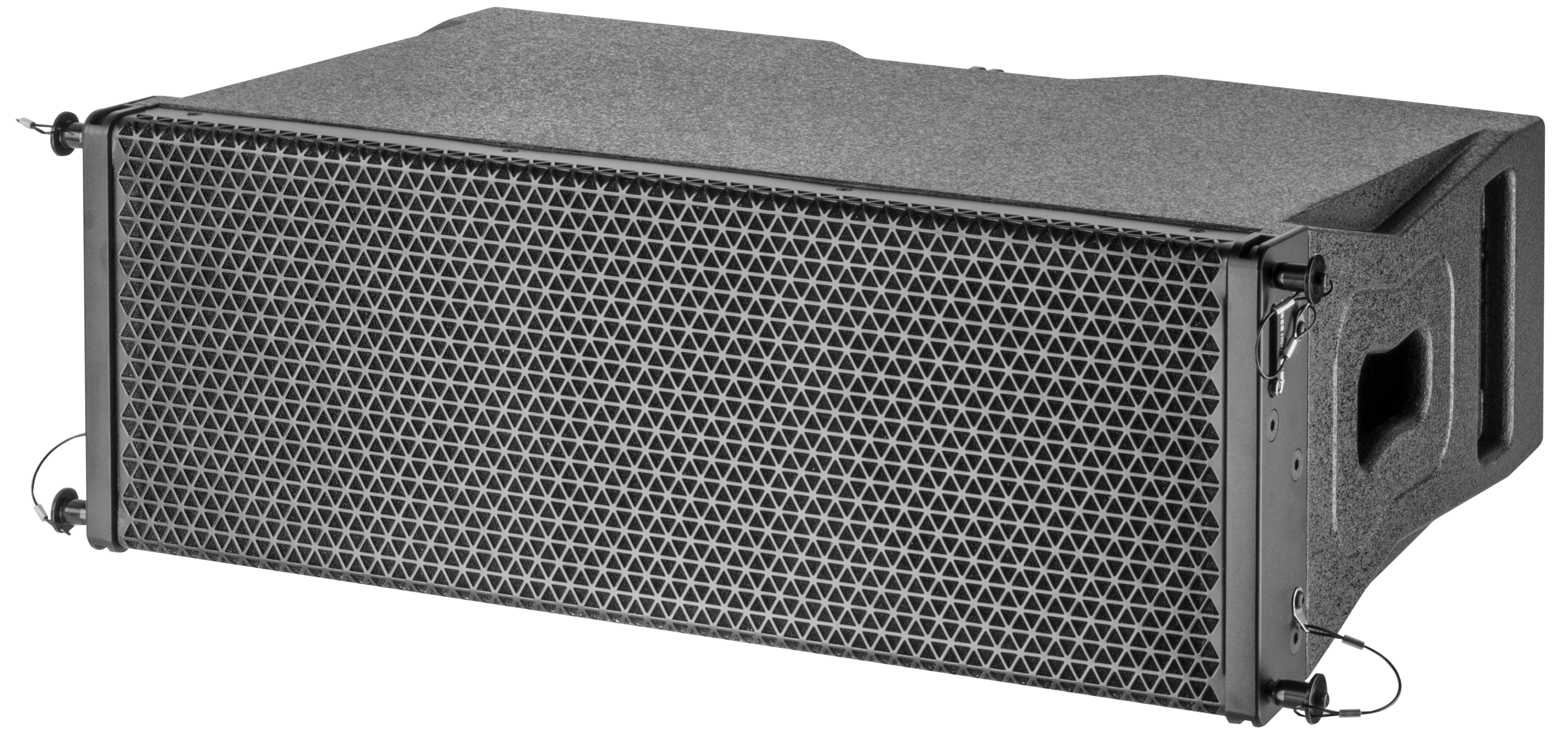

LAS206 Line Array Speaker
Dual 6.5＂Two-way Passive Line Array Speaker
The LAS206 is an outstanding dual 6.5-inch two-way high-performance line array speaker, designed with a classic compact structure and a unique high-precision array style. Its deployment is versatile, making it ideal for a wide range of performances. Featuring a 1.7-inch tweeter paired with a meticulously crafted linear acoustic wavefront tweeter horn, it ensures accurate and uniform acoustic coverage across the listening area. The two 6.5-inch bass/midrange woofers are specifically engineered for delivering exceptional mid and low-frequency performance within the line array system. With a finely tuned crossover, the las206 operates at high power levels while maintaining low distortion. Its strong constant directivity ensures consistent sound quality across various angles, making this speaker an excellent choice for performance halls and mobile events that demand high-definition audio clarity.
Frequency Response： 75Hz-20KHz
Sensitivity(1W@1m): 95dB (passive mode)
HF 108dB LF 96dB (Bi-amp mode )
Nominal Impedance: 8Ω
Rated Power: HF 50W AES，200W peak (Bi-amp mode)
LF 300W AES 1200W peak (Bi-amp mode)
LF Components: 2×6.5＂(165mm)/2.5＂voice coil
HF Components : 1×1＂(25mm)/1.75＂voice coil
Coverage : 120°×15°(H×V）
Maximum SPL:124dB continuous,130dB peak
Connectors : 2×Speakon NL4
Net Weight: 17kg
Dimensions（W×D×H） 560mm×325mm×197mm
Power: 800W
Frequency Response: 20HZ~20KHZ/-1dB (1/8 output power)
Signal-to-noise ratio SNR: ≥ 92dB (A-weighted)
Input sensitivity/impedance: 1.2V/22KΩ
Damping factor: 500
Harmonic Distortion T.H.D: ≤0.05
Voltage range: ~90V-270V 50/60Hz PFC switching power supply power supply
Output circuit type: Class D
Protection function: overload protection, over-voltage protection, under-voltage protection, overheating protection, short circuit protection, DC protection, etc.
