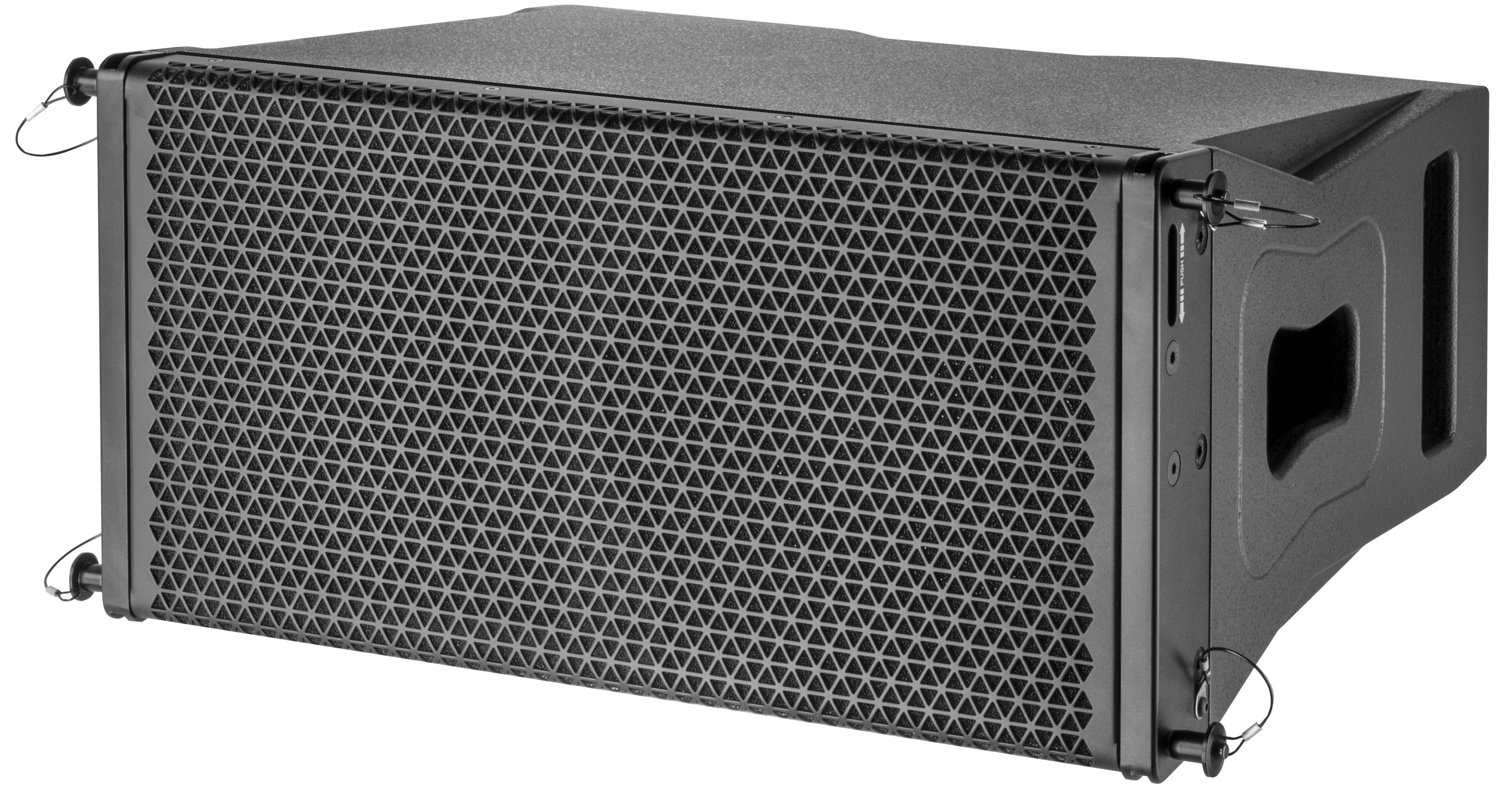

LAS12 Line Array Speaker
Single 12"Two-way Passive Line Array Speaker
LAS12 is a single 12-inch two-way high performance line array speaker, with classical compact design and systematic high-precision array unique style, which is widely used in different performance. It is composed with two 2.5-inch tweeter, configured with accurate linear acoustic wavefront tweeter horn, to achieve accurate and uniform acoustic coverage. It also applies a 12-inch bass/midrange woofer which is developed for the mid and low range frequency in the line array system. The crossover well-turned. It operates at high power with low distortion. the coverage angle has strong constant directivity and keep the consistency of sound in different angles. The speaker is suitable for the performance hall and mobile events that requires high definition.
Frequency Response: 55Hz-20KHz
Sensitivity(1W@1m): 102dB (passive mode)
HF 113dB LF 104dB (Bi-amp mode )
Nominal Impedance: 8Ω
Rated Power: HF 120W AES,480W peak (Bi-amp mode)
LF 450W AES,1800W peak (Bi-amp mode)
LF Components: 1×12"(300mm)/3" voice coil
HF Components: 2×1.5"(38mm)/2.5"voice coil
Coverage: 120°×15°(H×V)
Maximum SPL: 128dB continuous,134dB peak
Connectors: 2×Speakon NL4
Net Weight: 37kg
Dimensions(W×D×H): 612mm×520mm×368mm
