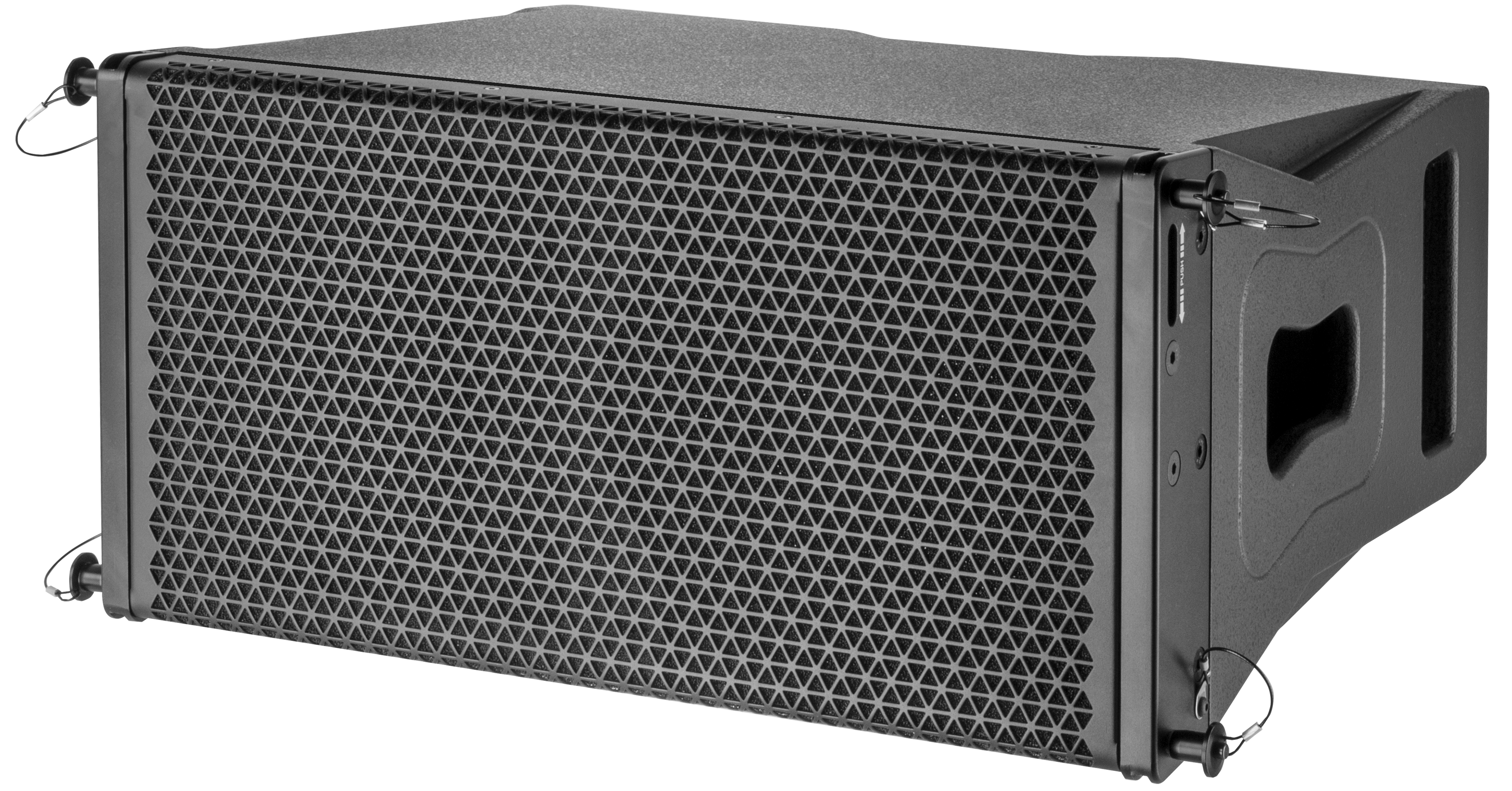

LAS10 Line Array Speaker

Single 10"Two-way Passive Line Array Speaker

LAS10 is a single 10-inch two-way high performance line array speaker, with classical compact design and systematic high-precision array unique style, which is widely used in different performance. It is composed with a 2.5-inch tweeter, configured with accurate linear acoustic wavefront tweeter horn, to achieve accurate and uniform acoustic coverage. It also applies a 10-inch bass/midrange woofer which is developed for the mid and low range frequency in the line array system. The crossover well-turned. It operates at high power with low distortion. the coverage angle has strong constant directivity and keep the consistency of sound in different angles.  The speaker is suitable for the performance hall and mobile events that requires high definition.

Frequency Response: 60Hz-20KHz

Sensitivity(1W@1m)     100dB  (passive mode)

                  HF 113dB  LF 104dB  (Bi-amp mode )

Nominal Impedance: 8Ω

Rated Power: HF 60W AES,240W peak (Bi-amp mode)

                  LF 300W AES,1200W peak (Bi-amp mode)

LF Components: 1×10"(250mm)/2.5" voice coil

HF Components: 1×1.5"(38mm)/2.5"voice coil

Coverage: 120°×15°(H×V)

Maximum SPL: 127dB continuous,133dB peak

Connectors:  2×Speakon NL4

Net Weight: 28kg

Dimensions(W×D×H): 570mm×468mm×289mm
