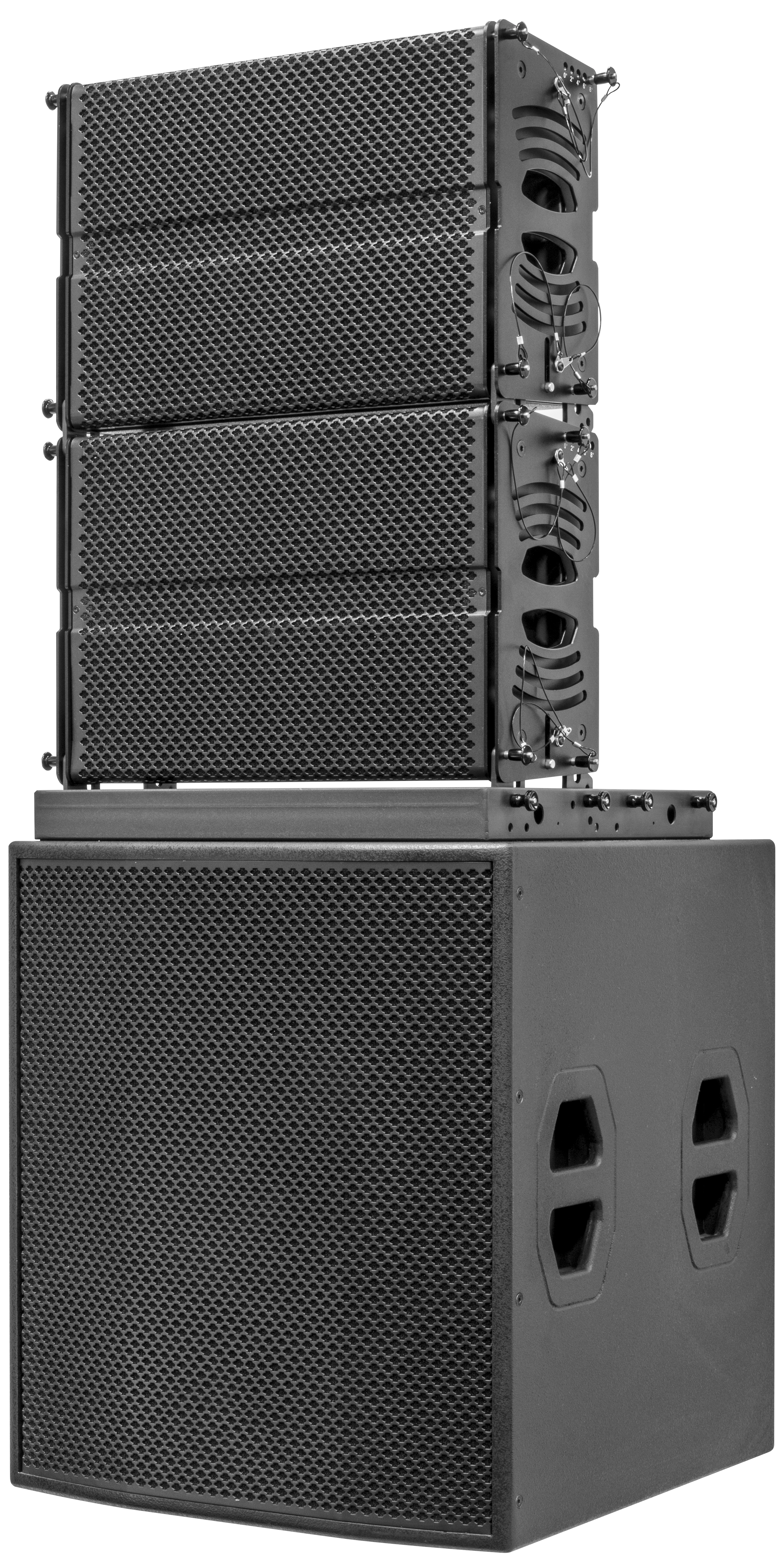

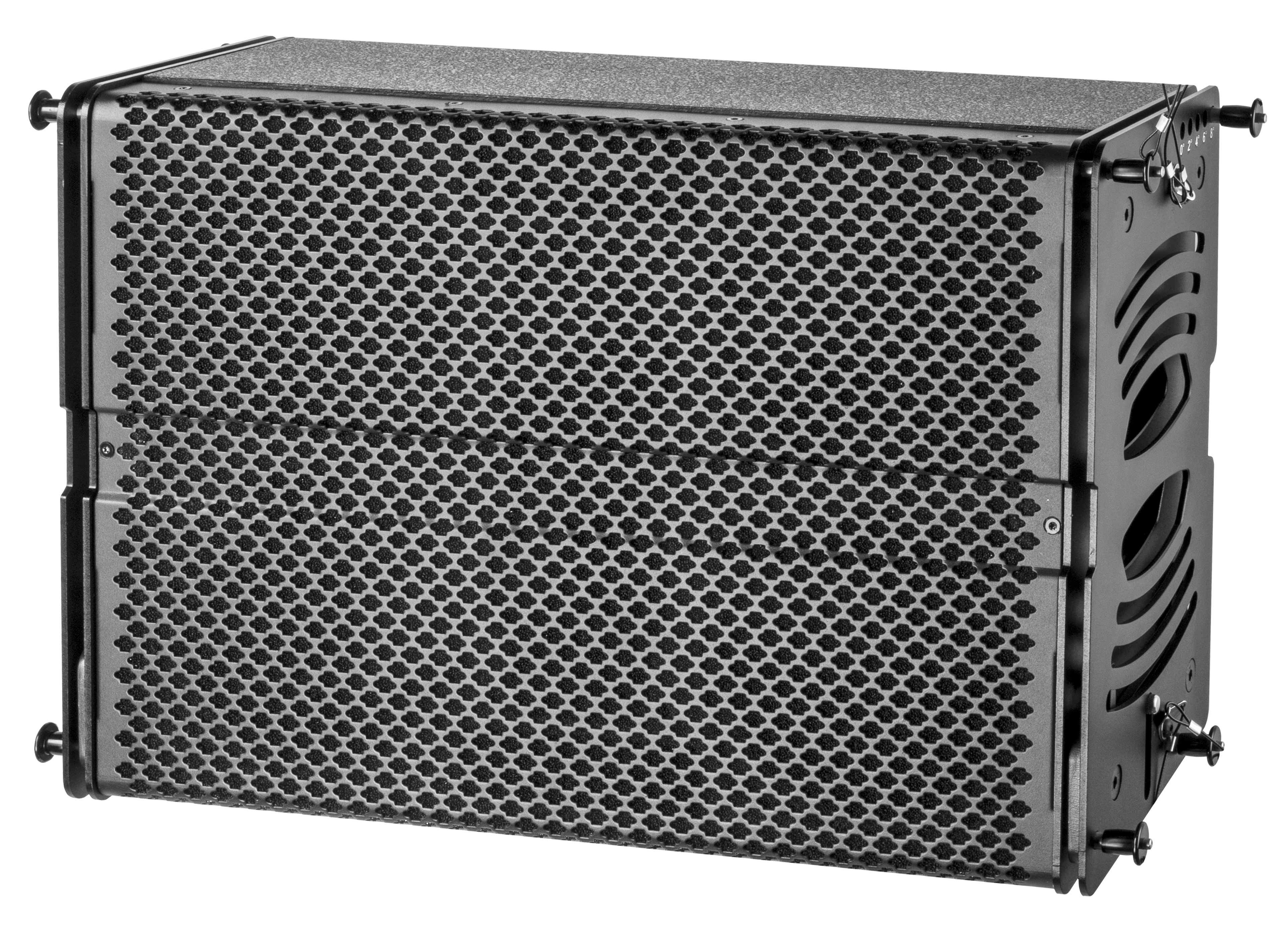

LA65 Series Line Array Speakers

Four 6.5"Two-way Passive Line Array Speaker

LA65 is a four 6.5-inch two-way high-performance line array speaker with ultra-thin and compact design.  The speaker uses two 1.4-inch tweeter, configured with precise linear acoustic wavefront surface treble horn, to achieve accurate and uniform acoustic coverage. It also adopts four 6.5-inch mid-woofers developed for line array low-midrange frequency, and a carefully tuned crossover. It features that the distortion is small when it works in a condition of high power. The coverage angle has a strong constant directivity, and sound listening consistency is good. It is ideal for small and medium-sized events.

Frequency Response: 70Hz-20KHz

Sensitivity(1W@1m): 98dB  (Bi-amp mode)

               HF 113dB  MF 98dB  (Bi-amp mode )

Nominal Impedance: HF:8Ω

                   MF:8Ω

Rated Power: HF 80W AES,320W peak (Bi-amp mode)

                     MF 600W AES 2400W peak (Bi-amp mode)

LF Components: 4×6.5"(165mm)/1.5"voice coil

HF Components: 2×1"(25mm)/1.4"voice coil

Coverage: 110°×15°(H×V)

Maximum SPL: 127dB continuous,133dB peak

Connectors:  2×Speakon NL4

Net Weight: 25.5kg

Dimensions(W×D×H): 520mm×200mm×360mm
