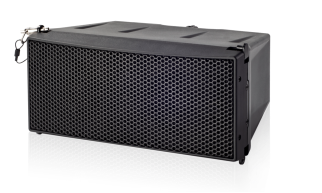

LA-23 Series Passive Line Array Speaker
Dual 3” Two-way Passive System
3＂Two-way Mini Passive Line Array Speaker
-Adjustable Rigging System,Vertical Splay
-Adjustable Points Connectors in 0°-1.5°-3.0°-4.5°-6.0-8.0°-10.-
ncrements from 0°-10°

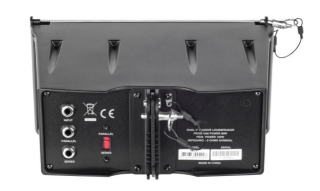

-Parallel or Series 06.3mm Socket /Selection Switch" -Polypropylene Enclosure,steel Metal Grille
with foam,Steel Stirrup Material,3 Flying Points"
Frequency Response: 100Hz-20KHz(-10dB)
Sensitivity(1W@1m) : 90dB
Nominal Impedance: 8Ω
Rated Power: 40W Continuous /80W Program
LF Driver: 2 x 3'' Woofer , 0.75''(19mm) Voice Coil
HF Driver: 3xΦ13mm (V.C) Neodymium
Dispersion (-6dB):100°Horizontal,30°Vertical (one module)
Maximum SPL: 106dB Max
Input Connectors:2×Speakon NL4
Net Weight: 3.2kg
Dimensions(W x D x H):124×265×195mm
