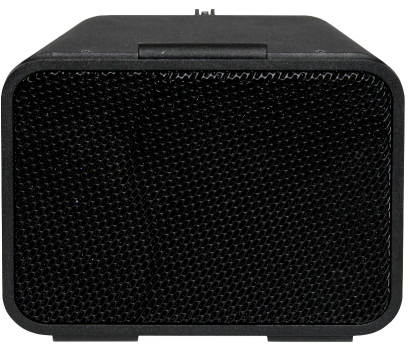

LA-14 Series Passive Line Array Speaker
4"Two-way passive system
4"Two-way passive system
-Aluminum alloy enclosure,Resistant Black Paint,
Steel Grille with foam,Steel Stirup Material
3 Flying Points
-Adjustable Rigging System &Vertical Splay
in 0°-4°-8°-12°Increments from 0°-12°"
Frequency Response: 100Hz-20KHz (-10dB)
Sensitivity(1W@1m) : 88dB
Nominal Impedance: 8Ω
Output Power: 30W Continuous/60W Program
LF Driver: 1×4＂(100mm)/1＂voice coil Neodymium celestion
HF Driver: 3×0.5＂soft dome tweeter /16Ω
Dispersion: 110°×20°
Maximum SPL:103dB Max.(calculated)

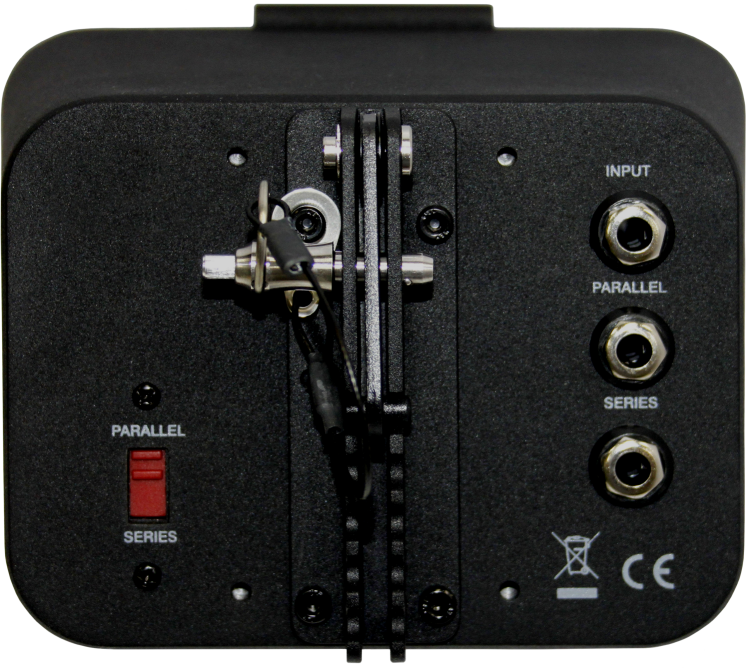

Connectors: Parallel or Series 06.3mm Socket /Selection Switch
Net Weight: 1.46kg
Dimensions(W x D x H):141x170x162mm
