L83A Active Dante Column Speaker

8*3" Full-range Active Column Speaker

Dante

Color

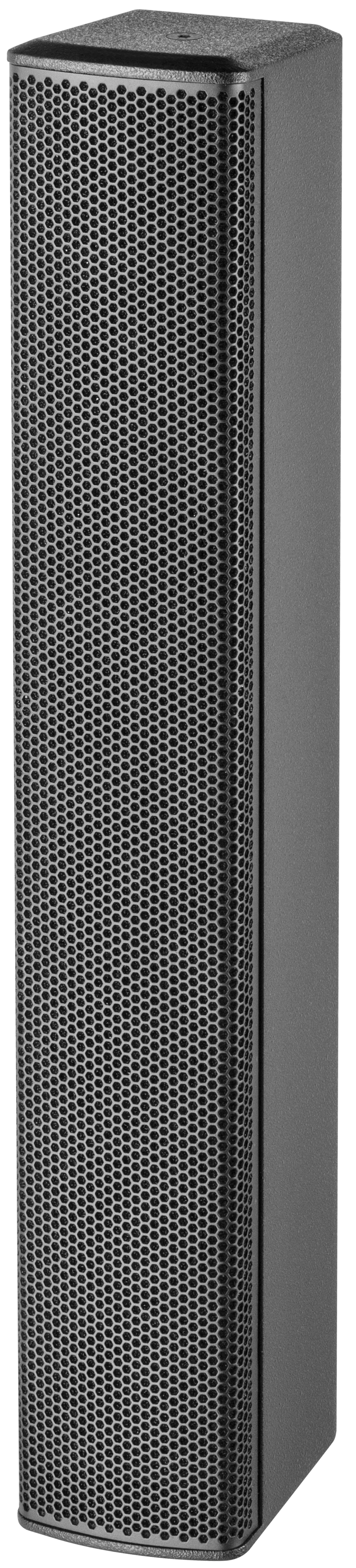

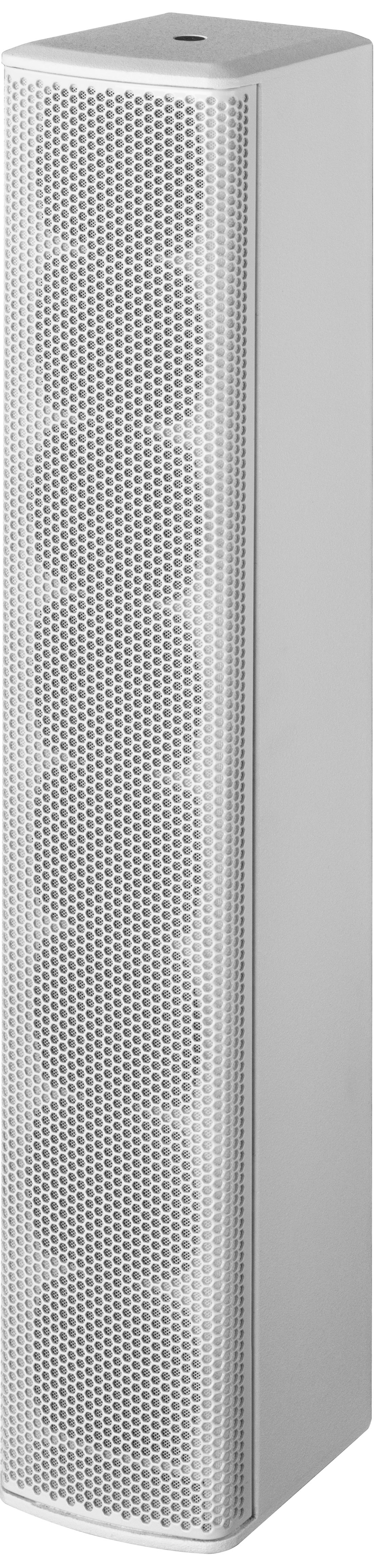

The compact 8*3-inch full-range speaker is expertly housed in a high-density fiberboard cabinet, ensuring durability and resonance. Its surface features a specialized rain spot lacquer treatment, enhancing its appearance and protecting it from potential damage. Users will appreciate the clarity and purity of the sound it produces, making it an excellent choice for various audio environments. The speaker excels in vocal reproduction, delivering rich, full-bodied tones that bring music to life. Whether used for casual listening or more immersive experiences, this speaker promises to elevate the overall auditory enjoyment.

Amplifier :

Amplifier circuits : class D.

Amplifier rated power AES: 300W.

Amplifier frequency response (1W8Ω mono): 20Hz-20kHz (± 0.5dB).

Intermodulation distortion : <0.05%.

Total harmonic distortion: <0.05%.

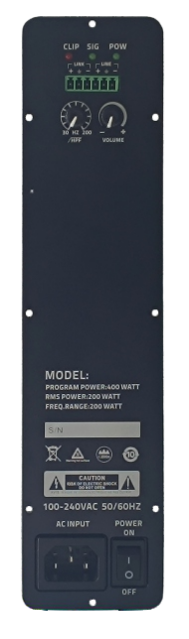

Input mode: analog audio, with one XLR input connector and one XLR output connector;

Cooling method: natural heat dissipation;

Operating temperature: -20℃-80℃.

Power supply range: AC220~240V AC110~120V 50HZ/60HZ switch switching

System protection settings: DC protection / short-circuit protection / overheating protection / overload protection / soft start protection / overvoltage protection / undervoltage protection.

Speaker:

Full-range unit: 8 × 3 "(75mm) / 0.75" voice coil

Rated impedance: 8 ohm

Rated power: 180W

Peak power: 720W

Frequency response range: 92Hz-20KHz

Directionality: 120 ° × 70 °

Sensitivity: 93dB/M/W

Maximum sound pressure: 115dB

Protection net: steel mesh

Wiring: Wire Clamp*1

Net weight:8kg
