8*2.25" neodymium magnet bass + 4*3 inch tweeter

Product Features

1、Adopting directional waveguide technology to inhibit the generation of useless side flaps and obtain the expected directivity;

2, through the DSP can realize the vertical radiation angle adjustment, can be targeted radiation foreseen area, while the invalid area can reduce the radiation, such as reducing wall reflections, improve the space useless sound wave interference and reverberation time is too long, directly get the direct sound, enhance the clarity of the language

3, powerful algorithms, intuitive interface, dedicated DSP management software, easy to set up, beam control, 7-band equalization adjustment, high and low-pass slope filtering, input level control, mute, preset settings, save and recall, system settings, and other functions

4、Built-in multi-channel high-stability digital amplifier

5, using a dedicated 8* 2.25-inch neodymium magnet bass + 4 *3-inch tweeter high-quality speakers, acoustic coupling science, clear and transparent sound quality

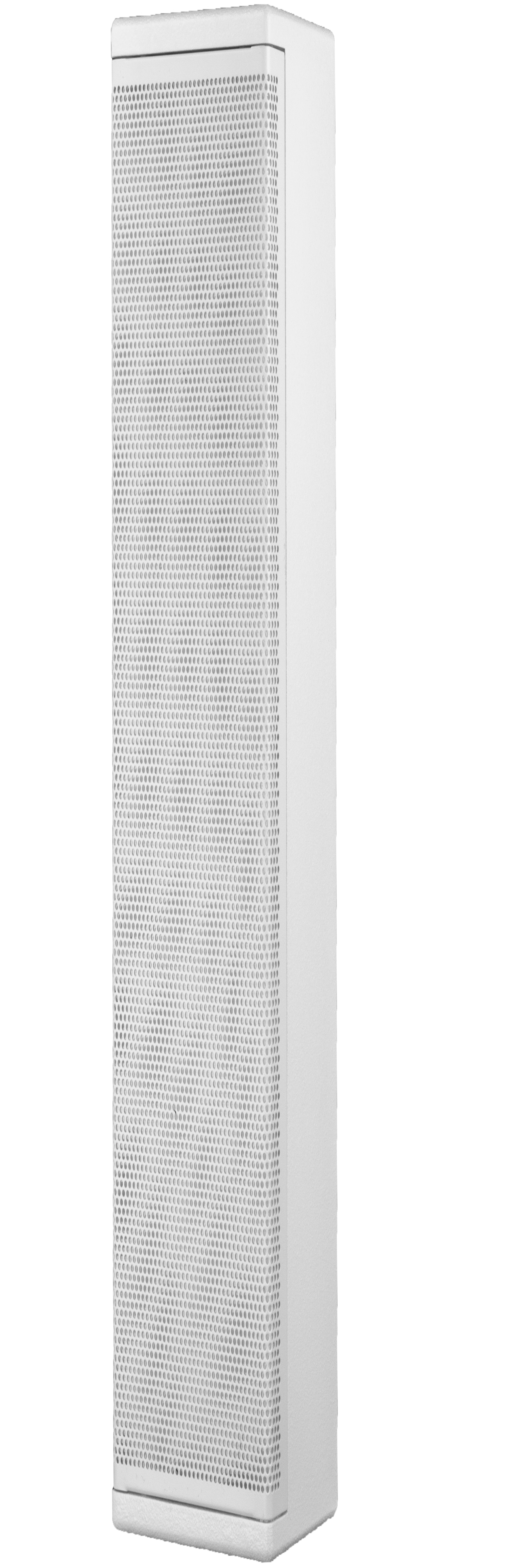

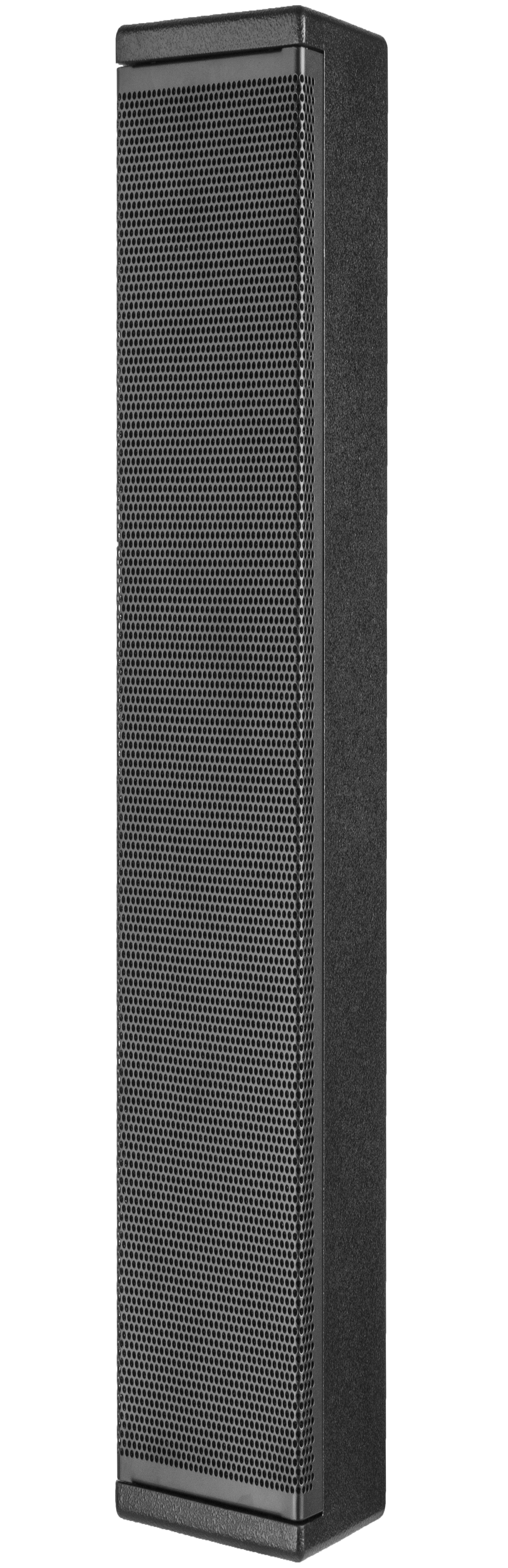

6、Wooden box shape is slender, the structure is pleasing to the eye, black and white optional, highly integrated with the space environment.

7、Support top hanging/horizontal hanging/back support and other installation methods.

Electronic parameters

Adopt CLASS-D and an integrated digital audio switching power supply technology combination

Panel with precise gain control and power, and status indicators

Perfect protection function, DC fault, temperature protection, under-voltage protection, and over-voltage protection.

DANTE signal input (optional).

DSP adopts a 24-bit, AD/DA, 96 kHz sampling rate.

Built-in 8-channel independent amplifier module, through the DSP software, can be set to ± 20 ° vertical coverage angle.

Built-in 8-channel independent DSP, each individually adjustable input with noise gate, gain, phase, mute, delay, and 11-band parametric equalization.

Overload protection, limit protection.

With high efficiency power conversion circuitry Power output is strong Power consumption is low Green.

All high cut, low cut filters, crossover type selectable: Butterworth, Lin Querrieri, Bessel, slope selectable.
