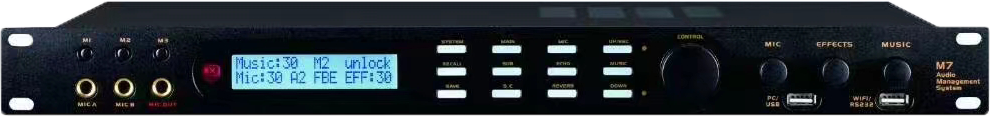

Multi-functional audio processor designed for Hi-Party and Karaoke singing needs for sound quality enhancement, touch-up and beautification of music and vocals. Digital input enables 5.1 movie audio decoding

●10-channel (6 XLR + 2 sets of RCA stereo) output to support 7.1-channel theater effect

●16 user modes + 5 factory modes for easy scene switching application. Output channel automatic mode, according to the type of music input and microphone signal, automatically switch the output mode, priority: Cinema Decode>Singing>Hot Dance Disco

VOD/BGM two groups of stereo analog audio input, optical + coaxial S/PDIF digital signal input

● Music 15-band parametric equalization and high and low pass filters, additional configuration of 3-band dynamic equalization and two exciters

Two independently adjustable microphone input channels (2 front and 2 rear), each with 20-band microphone inputs

Parametric EQ, high and low passes, feedback suppressor, compressor and two exciters.

Three effect modes for flexible matching: Echo A + Echo B + Reverb Reverberation

8-channel output, each channel is equipped with 10-band parametric equalization, high and low passes, compressor and delayer.

● Standard infrared receiver, optional remote control

●Back panel RS232 for easy connection to the center control, front panel USB drive-free access to the computer UI software debugging

●VU signal level indicator to better monitor the system working status (signal size, overload and pressure limit, etc.)
