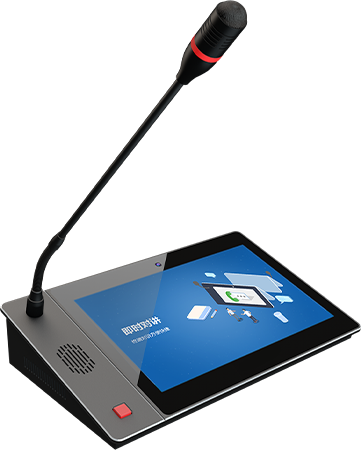

Product introduction

Applicable to the main control room, sub-control room, command center, alarm center, office, conference room and other occasions, can be a variety of terminals in the network for one-way (to the point, zoning or the whole area) shouting, two-way intercom, listening.

Product Features

Product Features

■ Desktop design, black brushed aluminum oxide panel, using 8-inch high-definition IPS screen, full capacitive touch screen, resolution 1280 * 720, 60Hz refresh rate.

■ Using industrial-grade 4-core ARM Cortex A17, main frequency 1.8GHz chip, 2G memory, to ensure the overall stability of the system;

■ Built-in 2 + 8G storage, can be downloaded to store intercom records; support for external SD card maximum support 256G memory expansion;

■ Built-in 3W full-range speaker and high sensitivity microphone for hands-free calling, receiving broadcasts and monitoring (digital noise reduction).

■ Management host and extension or other host and extension can be duplex intercom.

■ Support audio and video multi-party streamlined conference calls, up to support 40 participants, the conference supports the chairman mode and free mode two conference modes;

■ Support leave a message, can record message information and leave a video, convenient shift information interaction;

■ With a red emergency button, can be a key to the whole region emergency broadcast shouting;

■ can be quickly through the touch of the whole area shouting, shouting, point-to-point terminal shouting broadcasting.

■ Support on-demand server program library file material, support U disk on-demand.

■ Support loop listening/monitoring terminals, content stored in the server, local browsing query.

■ Real-time detection of intercom extensions and broadcasting terminal login status, intercom status, task status, convenient for debugging, overhaul and maintenance.

■ Support call transfer function, busy transfer, manual transfer, no response transfer.

■ Compatible with the standard SIP protocol, can be individually connected to the VOIP telephone system (Asterisk and other mainstream IP-PBX) into the two-way intercom calls.

■ Support a key to answer, a key to monitor, hands-free communication, support for missed calls information recording function.

■ 1-way Line out independent audio output, external amplifier amplification.

■ 3-way USB interface, support U disk playback, UKEY, and U disk upgrade.

■ With 1 SIM card interface, support the expansion of 4G way to access the system.

■ With a USB Type-C interface, support OTG function.

■ Support wired and wireless WiFi network access, support cross network segment and cross-routing.

■ Support Bluetooth function, can be connected to the speaker via Bluetooth local playback.

■ Customizable desktop wallpaper, support dynamic wallpaper.

■ Support terminal intercom video download and playback, support 4K video playback.

■ Support customized timer on/off settings including time and date.

■ Support DC12V and USB Type-C dual power supply mode, support POE power supply mode.

■ Display language: support Simplified Chinese, Traditional Chinese and English switching.
