Product introduction

Applicable to the main control room, sub-control room, command center, alarm center, office, conference room and other occasions, can be a variety of terminals in the network for one-way (to the point, zoning or the whole area) shouting, two-way visual intercom, listening and video conferencing.

Product features

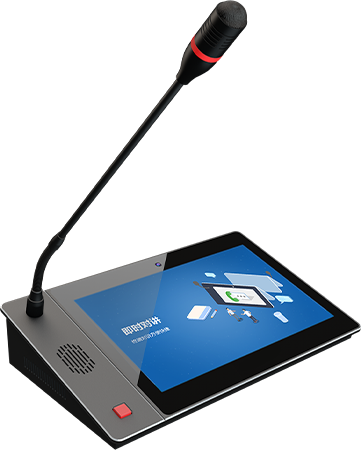

■ Professional paging host shape, desktop design, using 10.1-inch high-definition IPS screen, resolution 1280 * 800, 60Hz refresh rate.

■ Using industrial-grade 4-core ARM Cortex A17, main frequency 1.8GHz chip, 2G memory, to ensure the overall stability of the system;

■ Built-in 16G memory, can download and store intercom records; support for external SD card maximum support 256G memory expansion;

■ Built-in 3W speaker, can realize remote two-way visual intercom, listening, monitoring, monitoring, the whole area zoning broadcast, timed background music;

■ Built-in 2 million cameras, in the process of meetings and calls can show a fine picture quality, video using H.264 coding;

■ Management host and extensions or other hosts and extensions can be duplex intercom.

■ Support for audio and video multi-party streamlined conference calls, up to support 40 participants, the conference supports the chairman mode and free mode two conference modes;

■ Support leave a message, can record message information and leave a video, convenient shift information interaction;

■ With a red emergency button, can be a key to the whole region emergency broadcasting shouting;

■ Support on-demand server program library file material, support for U disk on-demand.

■ Touch fast to the whole area shouting, shouting, point to point terminal shouting broadcasting.

■ Support loop listening/monitoring terminals, content stored in the server, local browsing query.

■ Real-time detection of the login status, intercom status and task status of intercom extensions and broadcasting terminals, which is convenient for debugging, overhaul and maintenance.

■ Support one-key answering, one-key monitoring, hands-free communication, and support the function of recording missed call information.

■ Support call transfer function, busy transfer, manual transfer, no response transfer.

■ Compatible with standard SIP protocol, can be individually accessed VOIP phone system (Asterisk and other mainstream IP-PBX) into the two-way intercom calls.

■ 1 HDMI, 1 USB, 1 Sd card, 1 local audio input and 1 local audio output.

■ 1 SIM card interface, support the expansion of 4G way to access the system.

■ Support wired and WiFi network access, support cross network segment and cross-routing.

■ Support Bluetooth function, can be connected to the speaker via Bluetooth local playback.

■ Customizable desktop wallpaper, support dynamic wallpaper.

■ Support terminal intercom video download and playback, support 4K video playback.

■ Support customized timer on/off settings including time and date.

■ Support setting large font, and accessibility mode, convenient for visually impaired people to use.

■ Support POE power supply, in line with IEEE802.3af standards;

■ Display language: support Simplified Chinese, Traditional Chinese and English switching.
