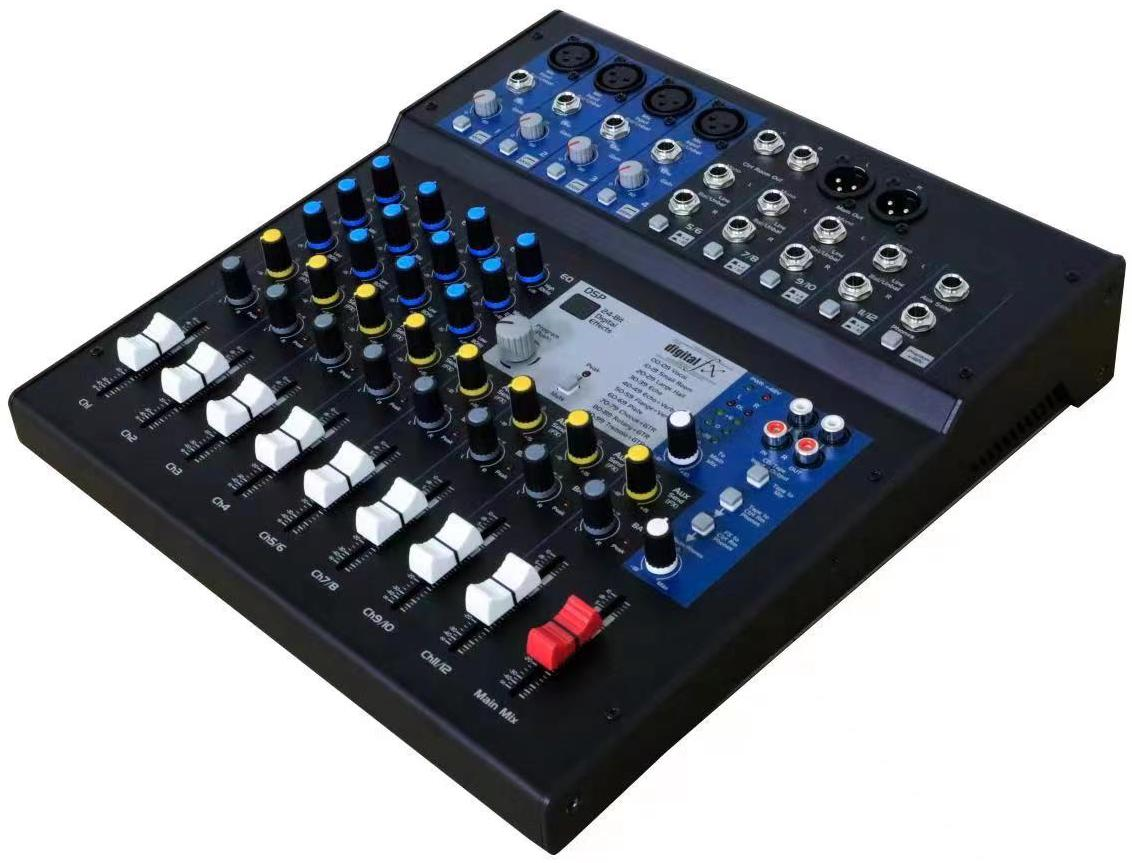

FX12 Series Analog Mixer
FX12 Series Analog Mixer
12-way mixer 4-way mono 4-way stereo with effects mixer
★Non-linear gain adjustment;
◆Small size and light weight, easy to mobile use
◆ Mono with high efficacy 3-band EQ;
◆ Digital effector mode ≥ 100 kinds;
▲Unique compact design style, extremely suitable for users of mobile applications;
▲ The output connector is designed as a balanced connector, which is convenient for users to purchase their own audio connecting cables and audio connectors;
▲Add a set of 100 modes of professional digital effects to add sweet tone and bass thickness to the singer;
Parameters:
◆ 4 balanced gold-plated XLR + 6 6.3mm balanced MIC inputs;
◆ Gain range: 0dB-50dB;;
◆ Phantom power: 48V;
◆ 4 Lotus port stereo input channels;
◆ Frequency Response Range: 20Hz~22KHz;
◆Total harmonic distortion: <0.03%@0dB/22Hz~22KHz;
◆ Signal-to-noise ratio: -100dB.
◆Sensitivity: +20dB~-30dB;
◆ Crosstalk: -80dB (0dB/20Hz~22 kHz).
◆ Equalizer (Mono)
Treble: ±15dB@12kHz;
Midrange: ±15dB@100Hz~3kHz;
Bass: ±15dB@80Hz;
◆ Equalizer (Stereo):
Treble: ±15dB@12kHz;
Mid-treble: ±15dB@3kHz;
Bass-mid: ±15dB@500Hz;
Bass: ±15dB@80Hz;
◆ DSP effector: 100 kinds of reverb effects;
◆ D/A converter: 24bit;
◆ Preset Mode: 00~99;
◆ Maximum Input Level: +21dB/Gain @+10 dB;
◆ Input/Output Impedance:
Microphone: 1.8KΩ;
Other inputs: 10KΩ or greater;
Tape output: 1KΩ;
Other outputs: 120Ω;
◆ Power supply: AC100~240V/50~60Hz;
◆ Rated power: 30W;
