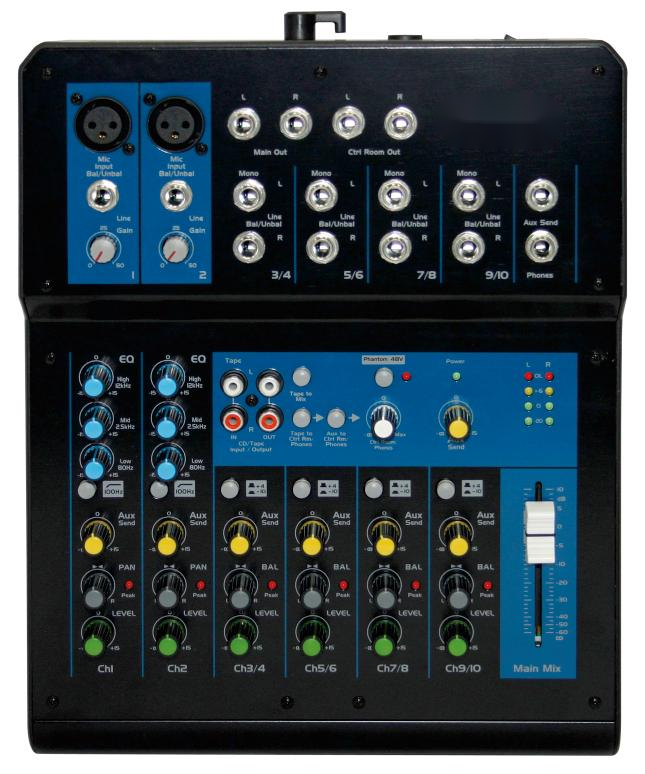

FX10 Series Analog Mixer
FX10 Series Analog Mixer
10-way mixer 2-way mono 4-way stereo mixer
◆Small size and light weight, easy to mobile use
◆The knob-type potentiometer reduces wear and tear on parts;
◆ Mono with high efficacy 3-band EQ;
▲Unique compact design style, combined with ultra-lightweight plastic casing, extremely suitable for users of mobile applications;
▲The output connector is designed as a 6.3mm balanced connector, which is convenient for users to purchase their own audio cables and audio connectors;
Parameters:
Parameters:
◆ 1 stereo AUX return with level control and signal to AUX1;
◆ With separation switch for recorder input/output, distributing the signal to the control room and output;
◆ Comes with a high-pass filter (low-cut) with a cutoff of 100Hz-18dB/Oct;
◆ 2 balanced gold-plated XLR + 2 6.3mm balanced MIC inputs;
◆ Gain is available on the mono/microphone input channels;
◆ Phantom power: 48V;
◆ With 8 balanced 6.3mm stereo input channels;
◆ Frequency Response Range: 10Hz - 200KHz;
◆Total Harmonic Distortion: <0.005% @+4 dBu;
◆Noise: -129 dBu
◆Signal amplification: 60 dB@1 kHz;
◆ Crosstalk: -90 dB@1 kHz;
◆ Equalizer:
◆Treble: +/-15 dB@12 kHz
◆Midrange: +/-12 dB@2.5 kHz
◆Bass: +/-15 dB@80 Hz
◆ Maximum Output Level: +22 dBu;
◆ Maximum Input Level: +30 dBu, Gain @+10 dB;
◆ Input impedance:
◆ Microphone: 2.6KΩ, Balanced;
◆Stereo: 20KΩ, balanced;
◆Auxiliary: 20KΩ, balanced;
◆Recording: 24KΩ, balanced;
◆ Output impedance:
◆ Main Output: 240Ω, balanced; 120Ω, unbalanced;
◆Auxiliary: 120Ω, balanced;
◆Recording: 1KΩ, balanced;
◆ Headphone: 25Ω, balanced;
◆ Level indication: 4-digit LEDs;
◆ Power supply: 240 VAC, 50 Hz;
◆Physical dimensions(D×W×H):252×188×41mm
◆Net weight:1.4Kg
