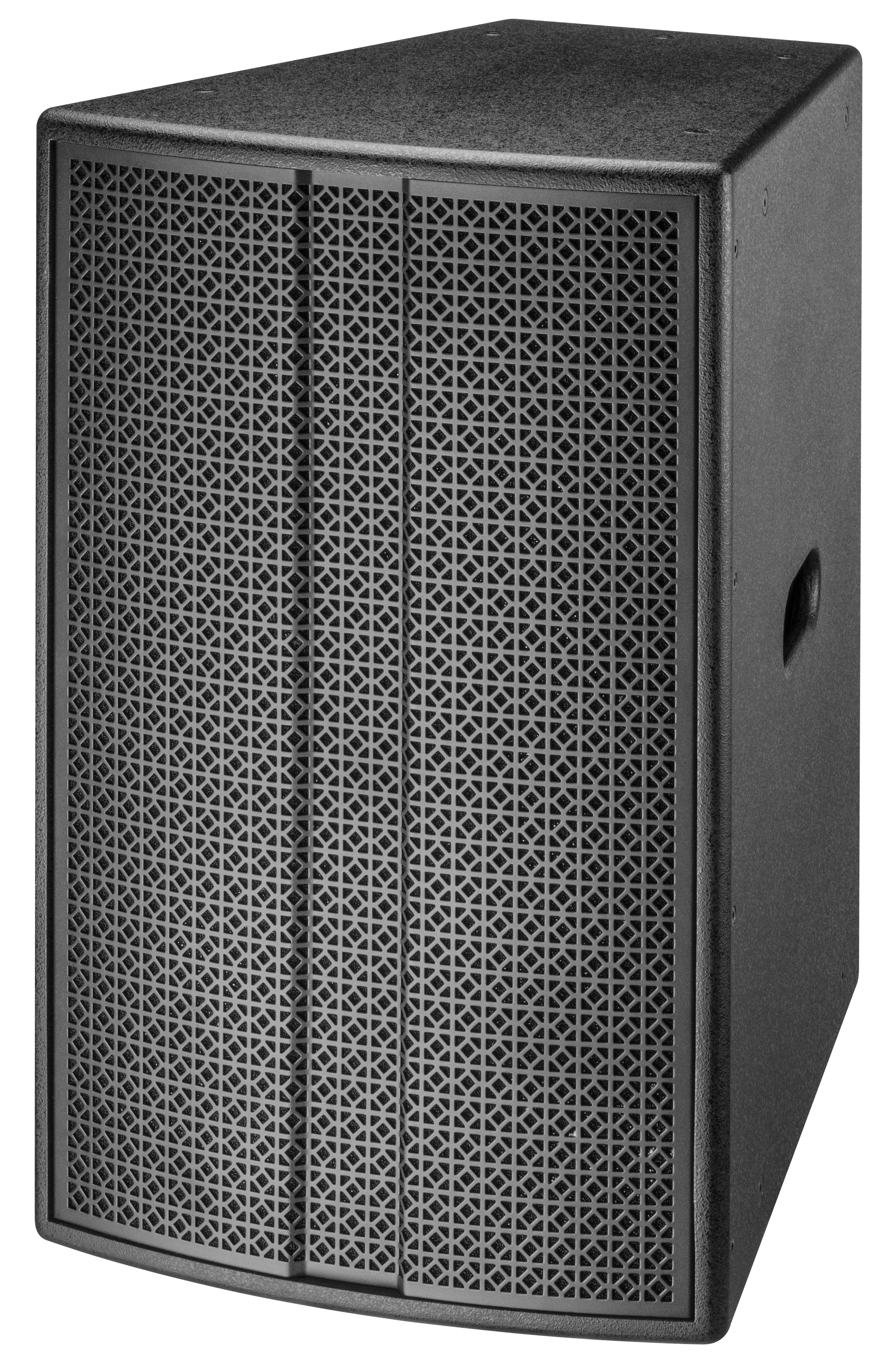

ES530 Series KTV Speakers
15" Three-way KTV Speakers
ES530 is a 15-inch three-way full-range speakers.
Composed of a 15-inch woofer with 100mm voice-coil and a neodymium magnetic midrange/treble coaxial driver with 90mm voice-coil midrange and 44mm- voice-coil tweeter in a high-quality plywood cabinet with baking paint.
Generates large dynamic, high sensitivity, clear and delicate treble ,penetrating and full midrange, powerful low frequency.
Support vertical hanging / horizontal hanging / rear support stand or bottom support stand and other installation methods.
Frequency Response：40Hz-20KHz
Sensitivity：102dB/M/W
Maximum SPL：132dB continuous,138dB peak
Rated Power：900W AES, 3600W Peak
LF Drivers: 1×15＂(385mm)/4＂voice coil
MF Drivers: 1×12＂(300mm)/3＂voice coil Coaxial
HF Drivers: 1×1.5＂(38mm)/3＂voice coil Neo
Coverage：100°×50°
Nominal Impedance：8 ohm
Connectors：2×Speakon Nl4
Net Weight:37.5kg
Dimensions(WxDxH): 453×510×720mm
