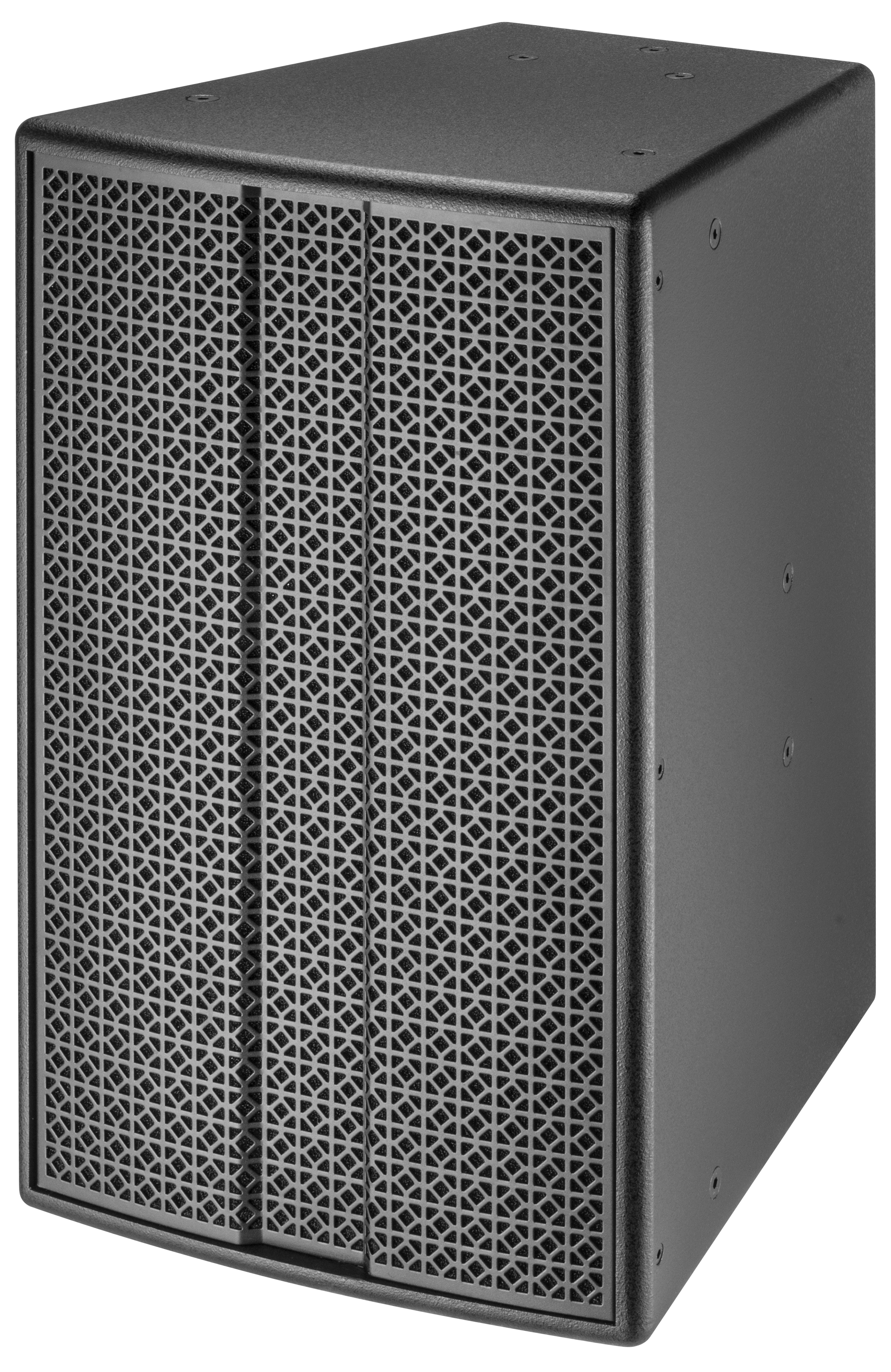

ES200 Series KTV Speakers
12" Two-way KTV Speakers
ES200 is a 12-inch speaker for entertainment sound reinforcement.
Composed of a 44mm voice-coil tweeter,and a 75 voice-coil woofer , with a rear bass-reflex design.
Made of plywood+MDF cabinet with point paint finishing.
Generates full sound and penetrating vocal.
Support vertical hanging / horizontal hanging / support stand and other installation methods.
Frequency Response：47Hz-20KHz
Sensitivity：97dB/M/W
Maximum SPL：124dB peak
Rated Power：400W AES,1600W peak
LF Drivers: 1×12＂(300mm)/3＂voice coil
HF Drivers: 1×1＂(25mm)/1.75＂voice coil
Coverage：70°×100°(H x V)
Nominal Impedance：8 ohm
Net Weight：21.5kg
Dimensions(WxDxH)：360 × 382× 600mm
